Cutterhead Speed Sending Unit

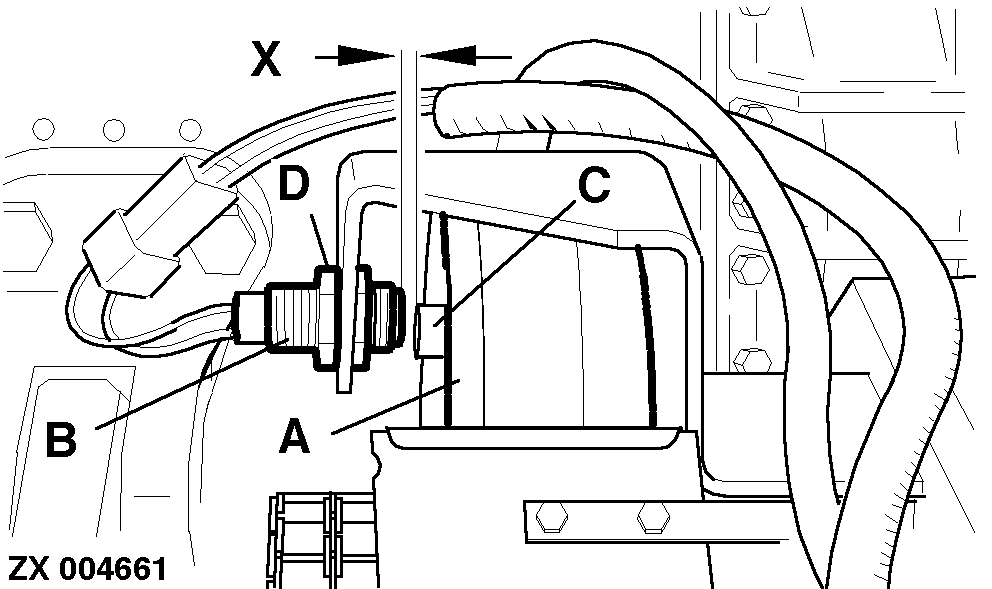

A sensor (B) measures the cutterhead speed at clutch half (A) connected to the cutterhead. Correct speed reading is only possible if the distance between screw head (C) and sensor (B) is correctly adjusted.

Adjustment:

Screw in sensor (B) until distance X = 6 mm (0.24 in.) is obtained, then tighten lock nut (D).

If cutterhead speed display on the INFO-TRAK ™ monitor is steady, correct adjustment has been made.

If display is erratic, change distance X within the tolerance range until the display is steady.

A-Clutch half
B-Sensor
C-Screw head
D-Lock nut
X-Distance 6 +/- 2 mm (0.24 +/- 0.08 in.)

INFO-TRAK is a trademark of Deere & Company.

ZX,OMSPFH000570 -19-01NOV97-1/1
