OMZ92984: 6650, 6750, 6850 and 6950 Self-Propelled Forage Harvesters (504992- ), Block File: ZX_OMSPFH000578_19

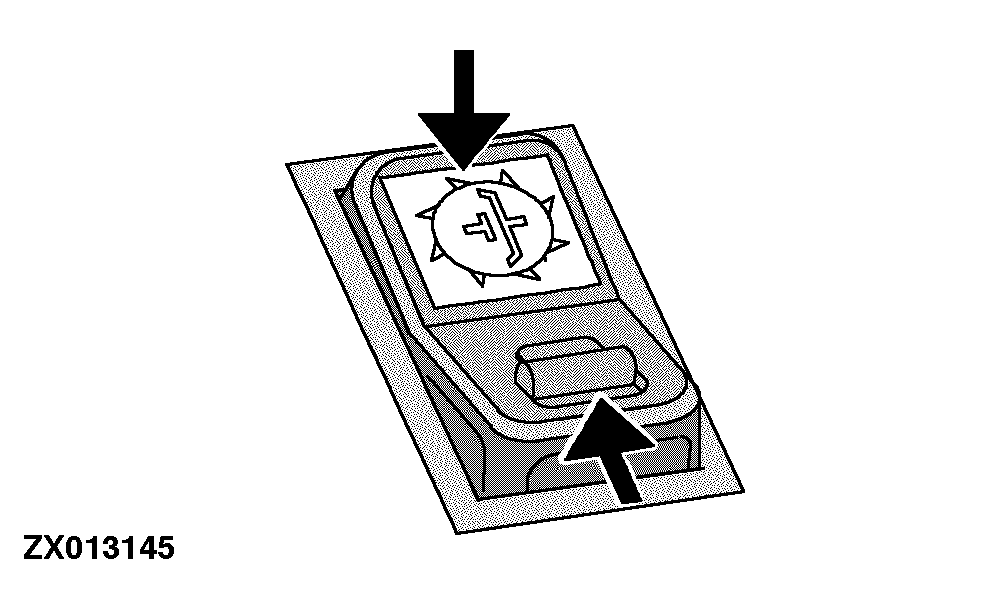

Activate metal detector (switch (A) is pressed).

ZX,OMSPFH000578 -19-01NOV97-1/5

Start engine.

Engage main clutch.

ZX,OMSPFH000578 -19-01NOV97-2/5

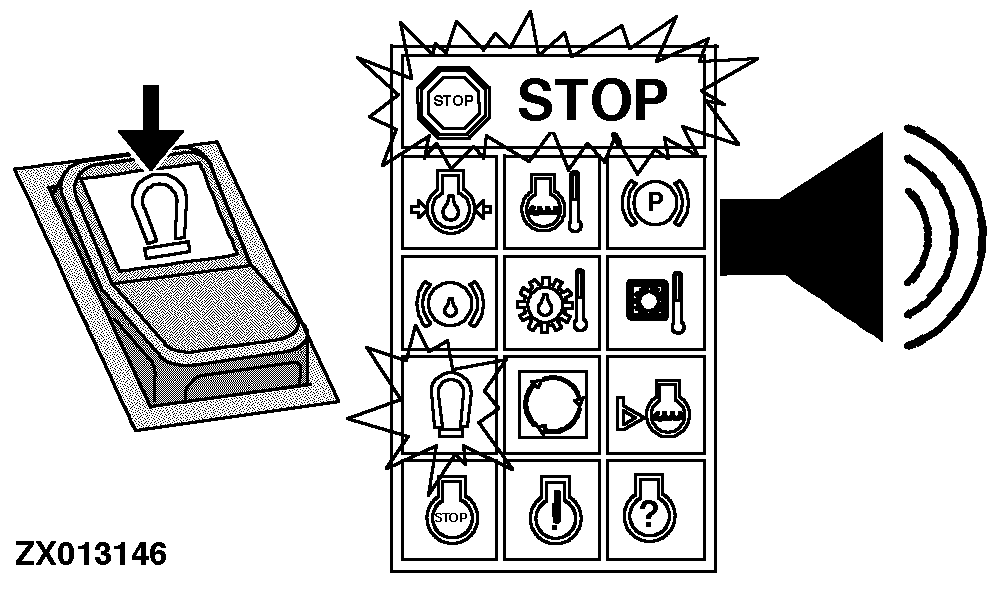

NOTE: Within indicator light section I, the STOP and the metal detector indicator lights will glow and the warning signal will be heard.

Switch on metal detector.

ZX,OMSPFH000578 -19-01NOV97-3/5

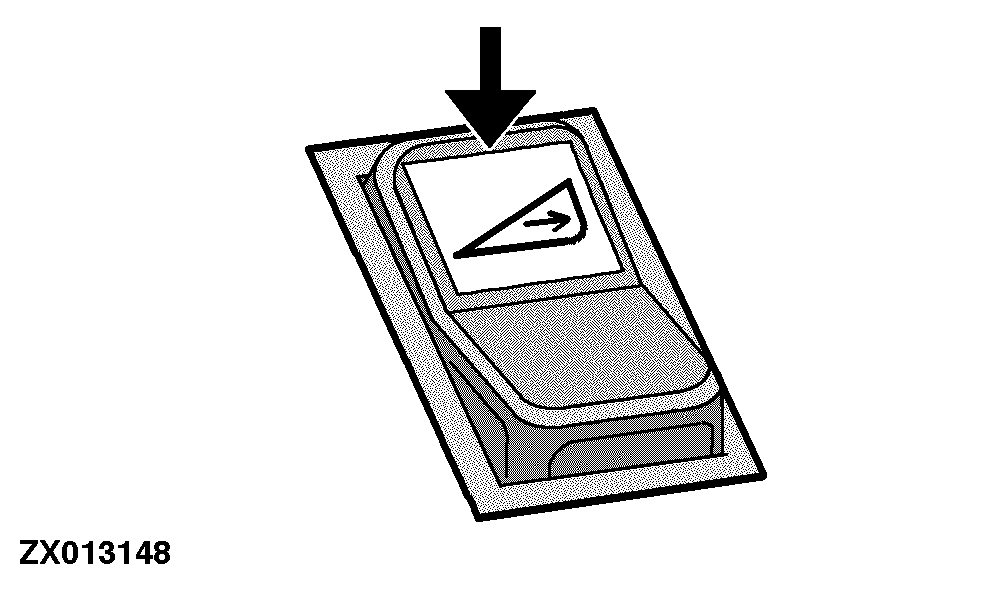

Move feed roll/harvesting unit switch to the "Reversing" position.

NOTE: Indicator lights and warning signal will go off.

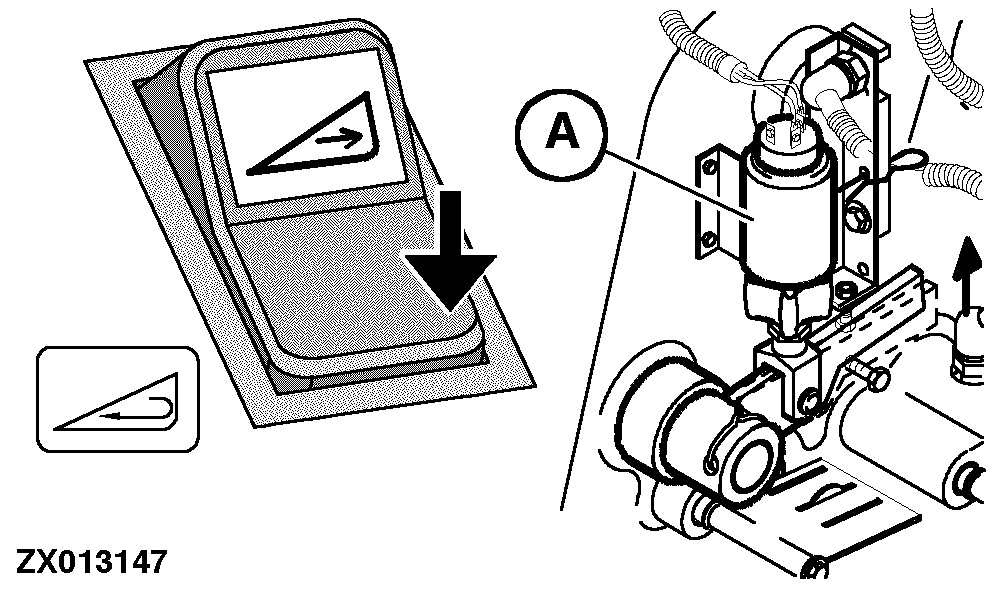

By reversing, locking pawl magnetic switch (A) is supplied with current and disengages locking pawl in the length-of-cut transmission.

ZX,OMSPFH000578 -19-01NOV97-4/5

Engage feed rolls and harvesting unit by means of switch (components rotate in forward direction).
