Metal Detector Test

This test will determine if the metal detector is operating correctly. Test daily before operating.

Perform the following steps:

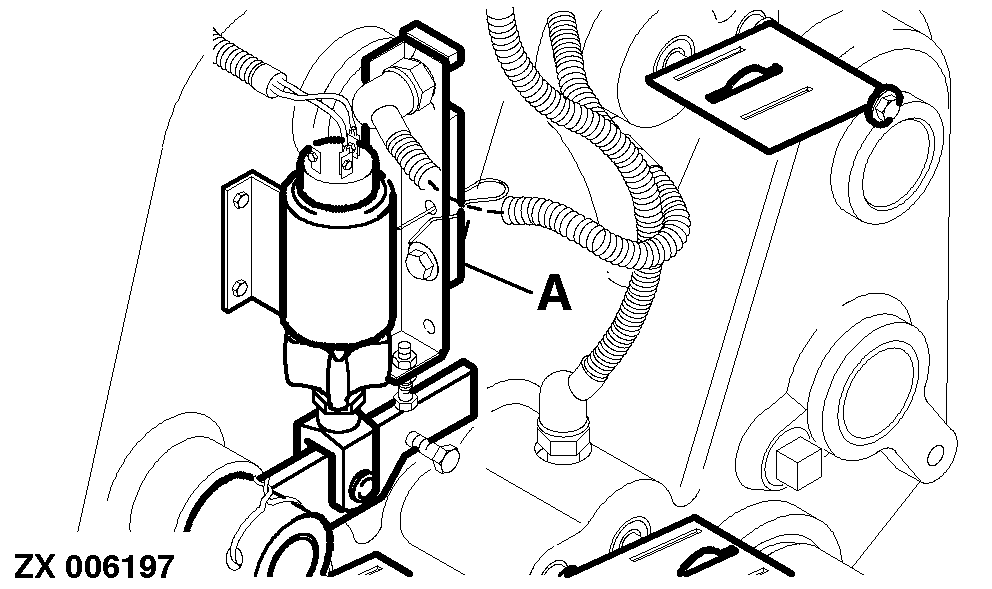

1. Activate metal detector [tongue (A) points upward].

ZX006197

ZX,OMSPFH000587 -19-01NOV97-1/6

2. Start engine.

3. Engage main clutch.

ZX013145

ZX,OMSPFH000587 -19-01NOV97-2/6

4. Switch on metal detector.

Do STOP and metal detector lights come on and can the warning signal be heard?

Yes: Continue

No: Go to chart 1 in this Section

ZX013146

ZX,OMSPFH000587 -19-01NOV97-3/6

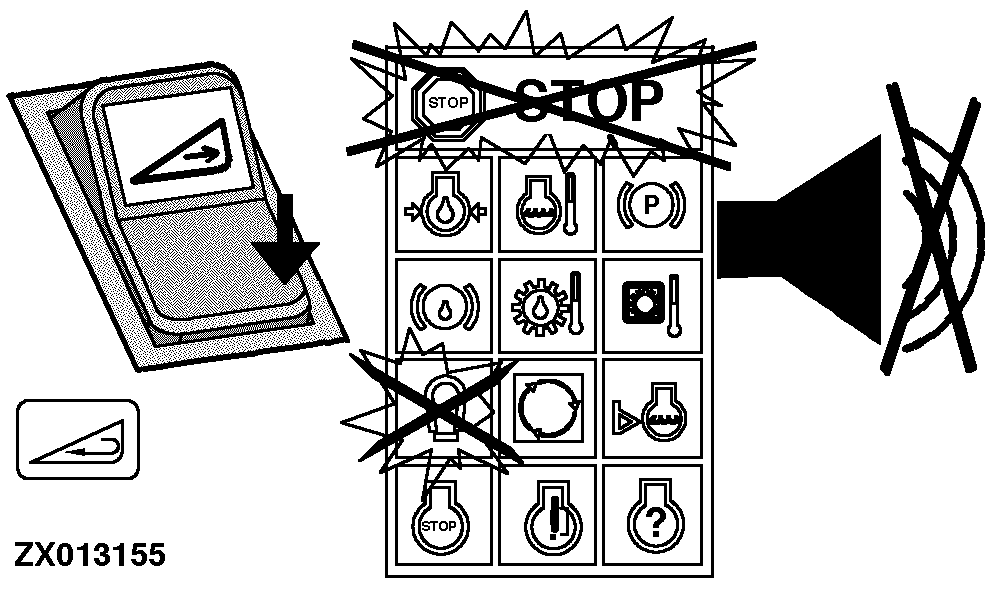

5. Reverse feed rolls and harvesting unit.

Do all indicator lights go out and does warning signal stop?

Yes: Continue

No: Go to chart 2 in this Section

ZX013155

ZX,OMSPFH000587 -19-01NOV97-4/6

6. Engage feed rolls and harvesting unit.

Are feed rolls turning forward?

Yes: Continue

No: Go to chart 3 in this Section

ZX013148

ZX,OMSPFH000587 -19-01NOV97-5/6

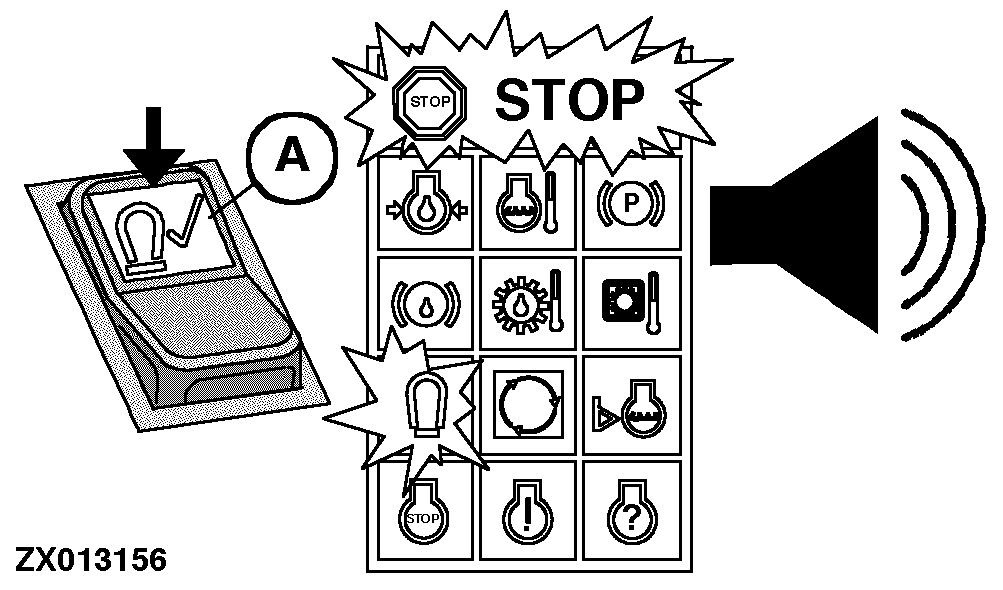

7. Press test switch (A).

Do indicator lights (2) come on and can the warning signal be heard?

No: See your John Deere dealer.

If Yes: Does the locking pawl stop the feed rolls abruptly, causing the slip clutch to slip momentarily?

Yes: Metal detector is operational. Shift feed rolls to reverse again to disengage locking pawl. Then shift to forward again and start field operation.

No: Check locking pawl adjustment.

ZX013156

ZX,OMSPFH000587 -19-01NOV97-6/6
