Stationary Knife

IMPORTANT: Readjust stationary knife after each knife sharpening process. Adjust stationary knife twice a day, even if cutterhead knives have not been sharpened. This will increase knife service life and reduce power requirements.

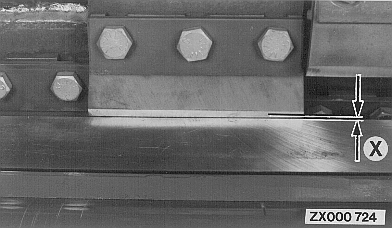

To increase service life and reduce power requirements, it is important that a clearance (X) of 0.2-0.4 mm (0.007-0.016 in.) is maintained between stationary knife and cutterhead knives.

Stationary knife adjustment may be carried out as follows:

Automatically - after knife sharpening or without previous knife sharpening (refer to "Automatic Stationary Knife Adjustment" in Section "Warning Devices and Monitors").

Manually - after knife sharpening or without previous knife sharpening (see instructions in this Section).

X-0.2-0.4 mm (0.007-0.016 in.)

ZX,OMSPFH000588 -19-01JAN93-1/1
