Removing Stationary Knife

Remove harvesting unit (see Section "Attaching and Detaching Harvesting Units").

Open feed roll housing (see Section "Feeding System").

On both sides:

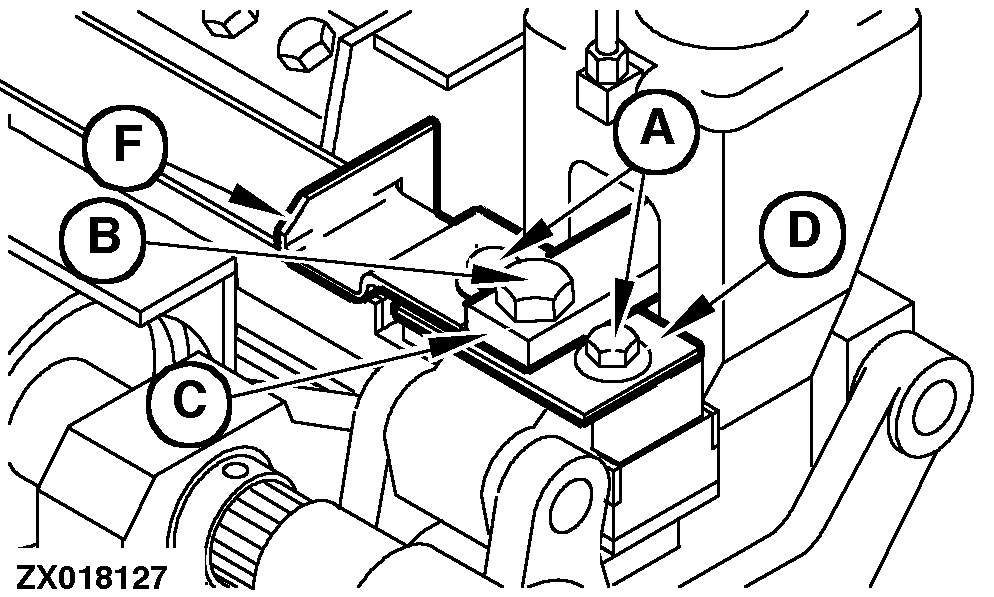

1. Turn out screws (A) and (B). Remove cover (F) together with inner screw (A).

2. Remove clamp bar (C) and shim (D).

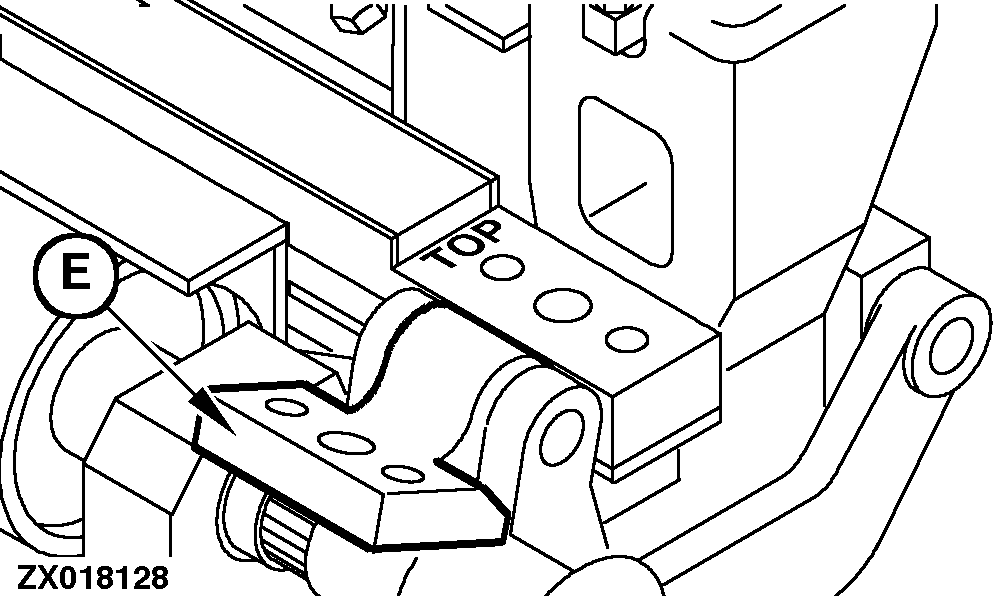

3. Swing hold-down bar (E) forward.

Remove stationary knife and knife bed.


A-Screws (4 used)
B-Screws (2 used)
C-Clamp bar
D-Shim
E-Hold-down bar
F-Cover
