Removing Stationary Knife Adjusting Device

NOTE: Do not remove adjusting device unless more than five turns are needed to eliminate the ticking sound during adjustment.

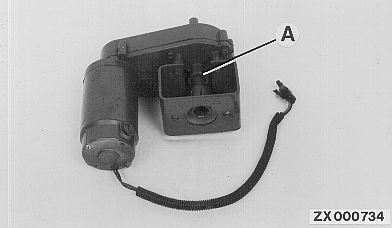

On forage harvesters with automatic stationary knife adjustment, remove adjusting motor (A) and motor support (B) on both sides.

Disconnect lubricating lines.

Slide adjusting device outward.

ZX,OMSPFH000591 -19-01NOV99-1/1
