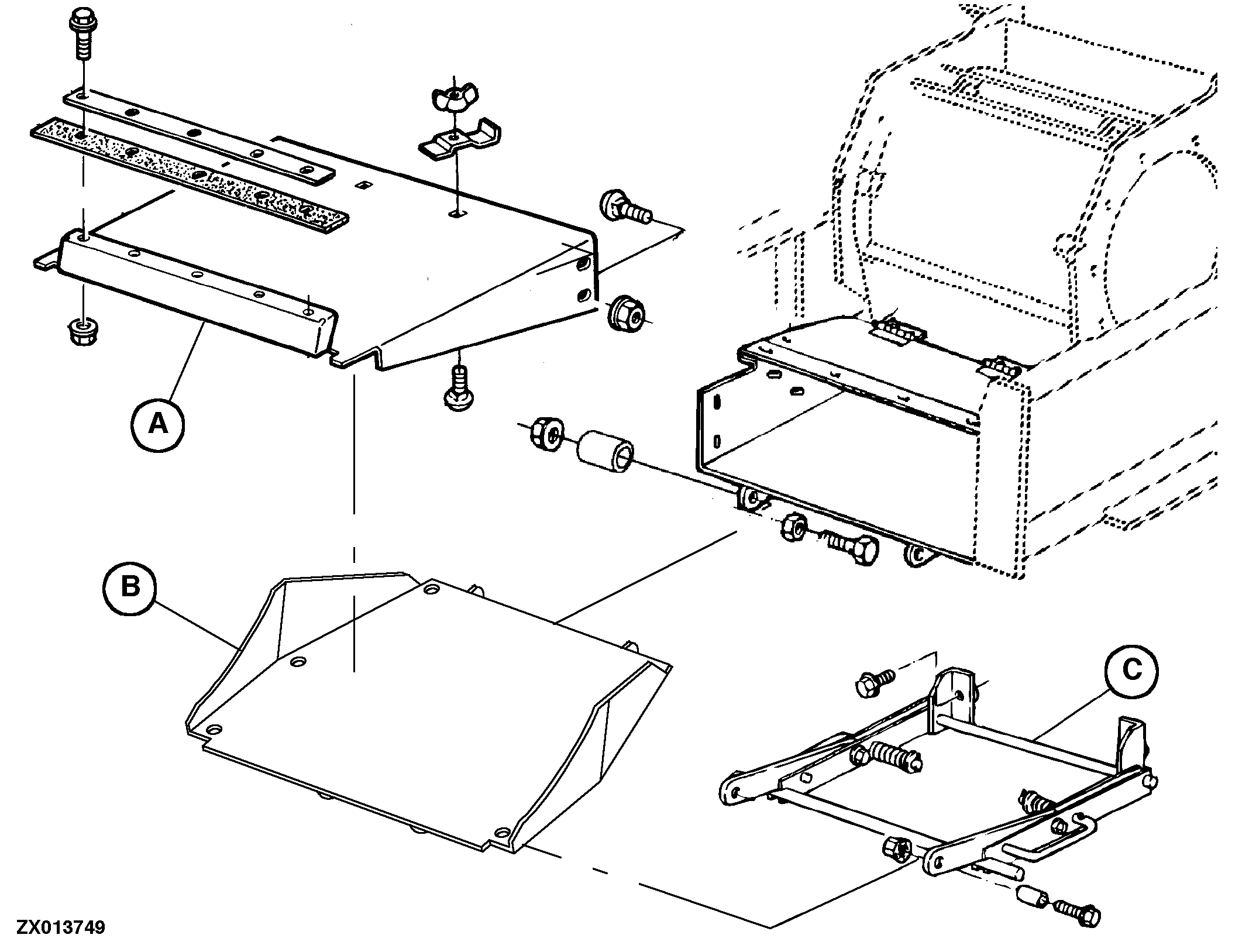

Transition Chute Between Cutterhead and Blower Fan

ZX013749


A-Transition chute, upper section

B-Transition chute/service cover

C-Locking device



NOTE: A stainless steel version of the transition chute is also available.

ZX,OMSPFH000622 -19-01NOV97-1/1
