Adjusting Scrapers

Scrapers are factory adjusted and only need resetting after rolls or bearings had been removed or too much crop loss occurs behind the rolls.

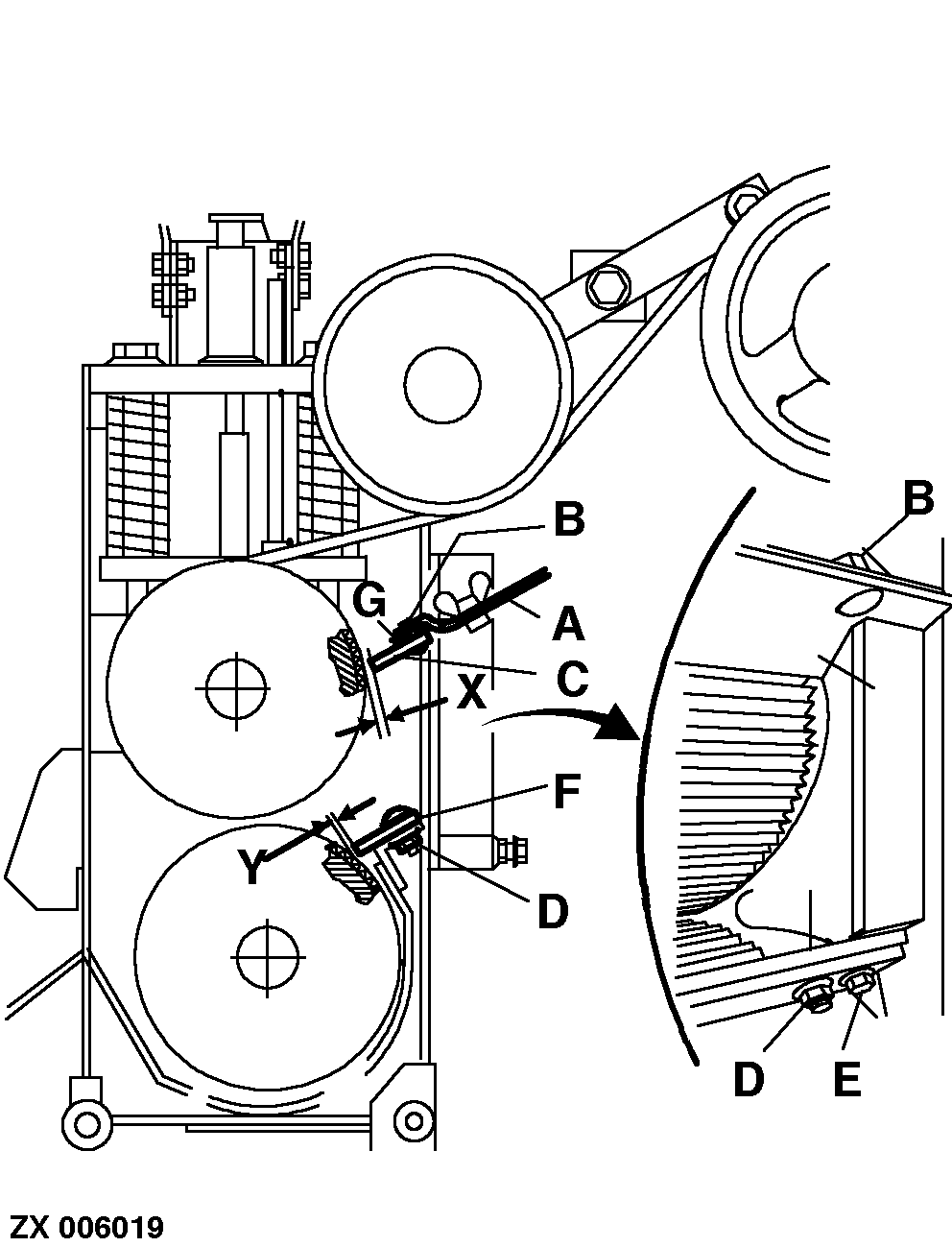

With built-in kernel processor loosen and fold service cover (A) up.

Upper Roll Scraper:

Loosen hex. nuts (B), adjust scraper (C) to X = 2-3 mm (0.08-0.12 in.) and tighten nuts.

Lower Roll Scraper:

Loosen hex. nuts (D) and screws (E), adjust scraper (F) to Y = 1-2 mm (0.04-0.08 in.) and tighten nuts.

Attach service cover (A) and sealing straps (G).

A-Service cover
B-Hex. nuts
C-Scraper (top)
D-Hex. nuts
E-Screws (2 used)
F-Scraper (bottom)
G-Sealing straps
X-Distance scraper to top roll 2 to 3 mm (0.08 to 0.12 in.)
Y-Distance scraper to lower roll 1 to 2 mm (0.04 to 0.08 in.)
