Use of Transmission Oil

In Transmission

Capacity: 7 L (1.85 U.S. gal)

NOTE: Oil level may be 10 mm (0.04 in.) below level bore.


A-Drain plug
B-Level plug/bore
C-Filler/breather plug

ZX001250

ZX,OMSPFH000759 -19-01MAY94-1/3

In Final Drives

Capacity (each final drive): 5.1 L (1.34 U.S. gal)


A-Filler/breather plug
B-Level plug
C-Drain plug

ZX013721

ZX,OMSPFH000759 -19-01MAY94-2/3

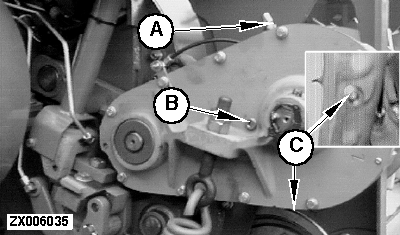

In Gear Transmission

Capacity: 1.2 L (0.32 U.S. gal)


A-Breather and filler plug
B-Level plug
C-Drain plug

ZX006035
