Brake Fluid Reservoir

IMPORTANT: In case of any leakage see your John Deere dealer.

Use only specified brake fluid to top up. Fluid level is electrically controlled by means of a float. Check fluid level every 200 hours of operation.

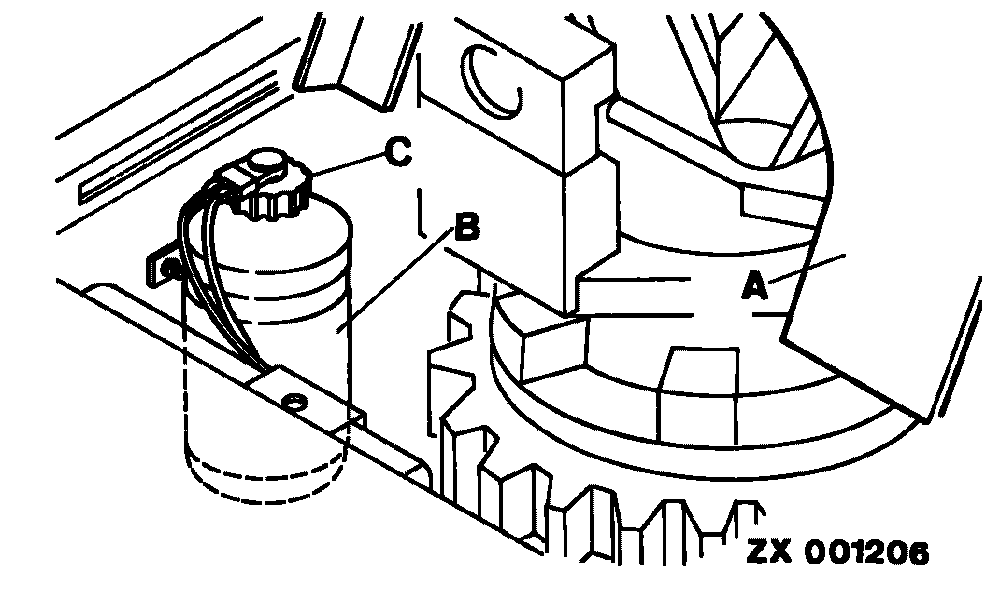

A-L.h. guard - spout ring gear
B-Brake fluid reservoir
C-Reservoir cap with float

ZX,OMSPFH000763 -19-11MAY92-1/1
