Attaching Sequence - 6-Row Row Crop

General Information

The attaching procedure of 3 m pickup, 4 row row-crop unit and 6 row row-crop unit is nearly identical. Therefore in this manual only the attaching of the 6 row row-crop unit is described.

The row-crop unit must be attached on level ground. Make sure that tire pressure is correct to keep attaching frame in horizontal position.

IMPORTANT: Before attaching row-crop unit, make sure that scrapers have been removed from attaching frame.

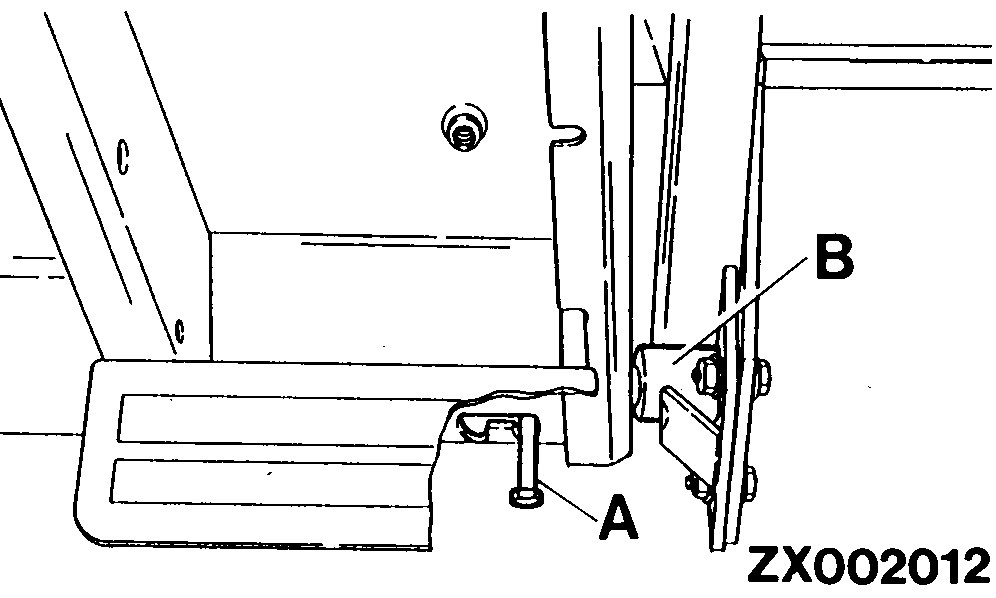

Lower attaching straps (A) until they are below the harvesting unit crossbar.

A-Attaching straps
B-Locking pin

ZX,OMSPFH001172 -19-01OCT91-1/4

NOTE: Turn locking pins (B) inward.

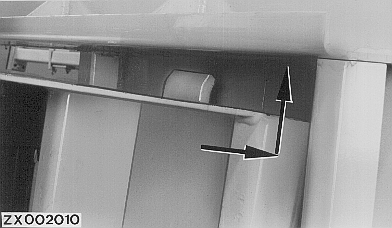

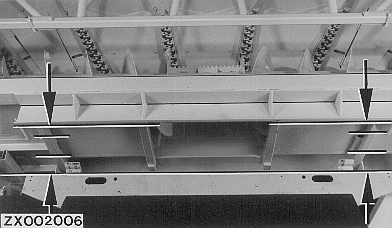

Drive harvester slowly forward until attaching straps are underneath the corresponding openings, then raise front plate and engage harvesting unit.

ZX,OMSPFH001172 -19-01OCT91-2/4

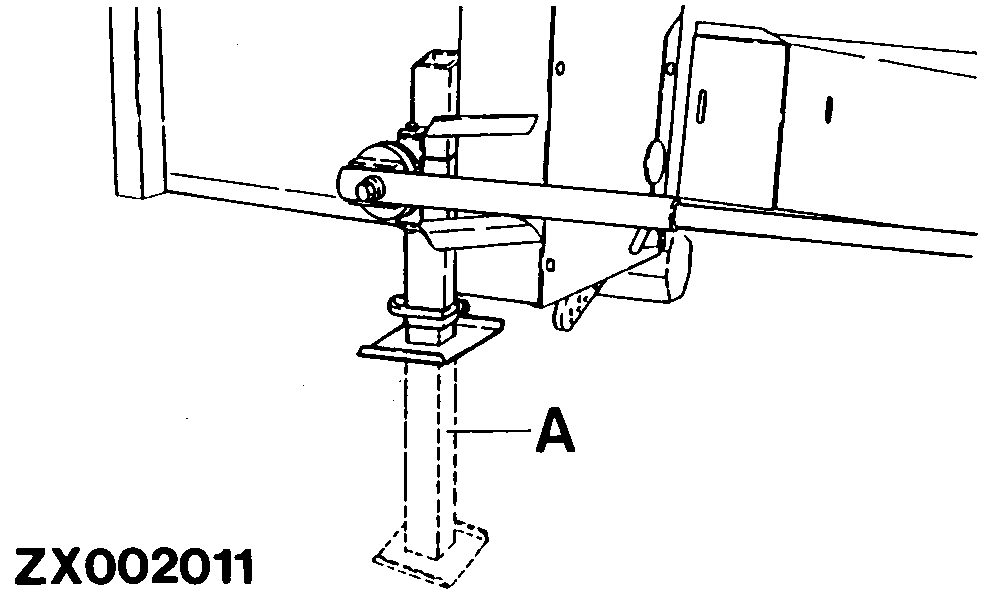

Lock support (A) on the r.h. and l.h. side in the highest position.

ZX,OMSPFH001172 -19-01OCT91-3/4

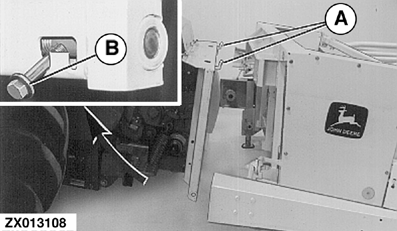

Lock pin (A) in bracket (B) on both sides.

To do this the bracket has to be aligned.

Tighten attaching screws.

ZX,OMSPFH001172 -19-01OCT91-4/4
