Connecting Harvesting Unit Drive Shaft

Remove snap ring (A).

Slide drive shaft (B) on shaft (C) until it contacts stop.

Reinstall snap ring (A).

Position drive shaft (B) against shaft (D). Press pin (E) while sliding drive shaft (B) on shaft (D) until pin engages.

IMPORTANT: It is absolutely necessary to readjust harvesting unit float system after harvesting unit has been attached (see Section "Preparations and Field Operation").

NOTE: For harvesting unit adjustments see relevant Operator's Manual.

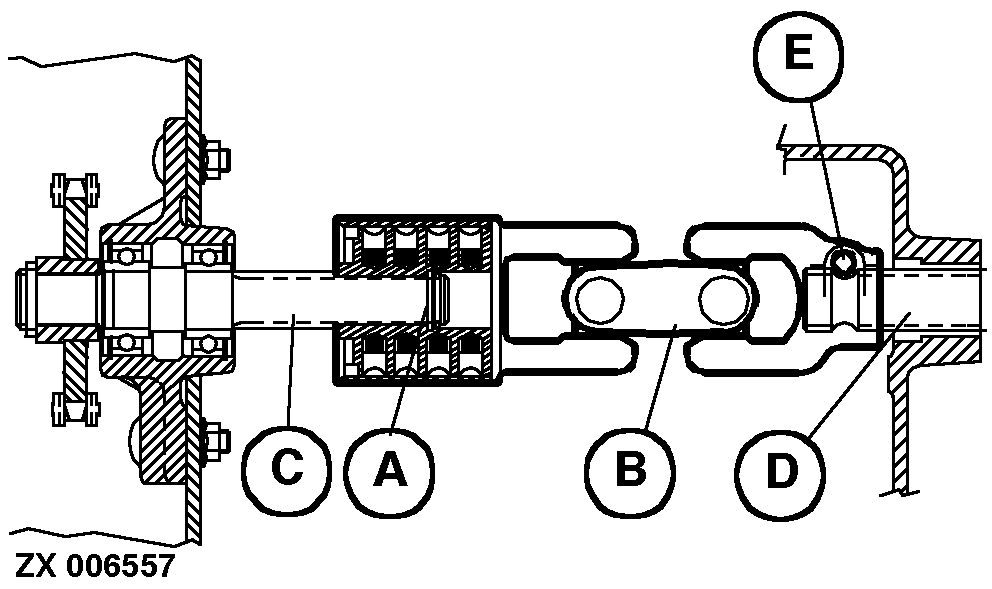

A-Snap ring
B-Drive shaft
C-Shaft (harvesting unit)
D-Shaft (length-of-cut transmission)
E-Sliding pin
