Test Chart 1

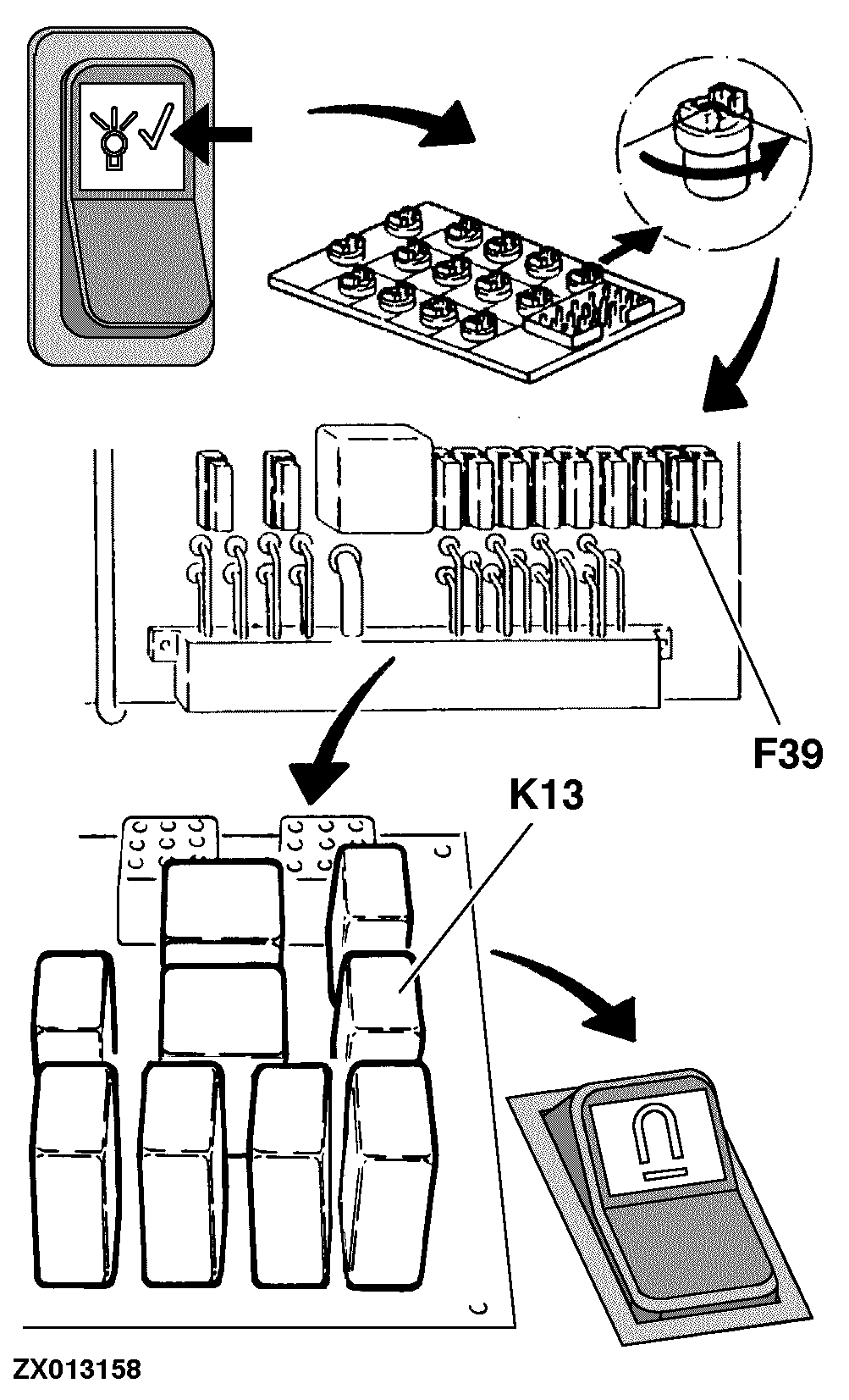

Indicator Light Does Not Glow

Disengage main clutch.

Shut off engine.

Turn on ignition.

Perform the following component checks one after the other:

• Indicator light check
• Bulbs of metal detector indicator light
• Fuse (F39)
• Relay (K13)
• Metal detector switch

ZX,OMSPFH001195 -19-01NOV97-1/2

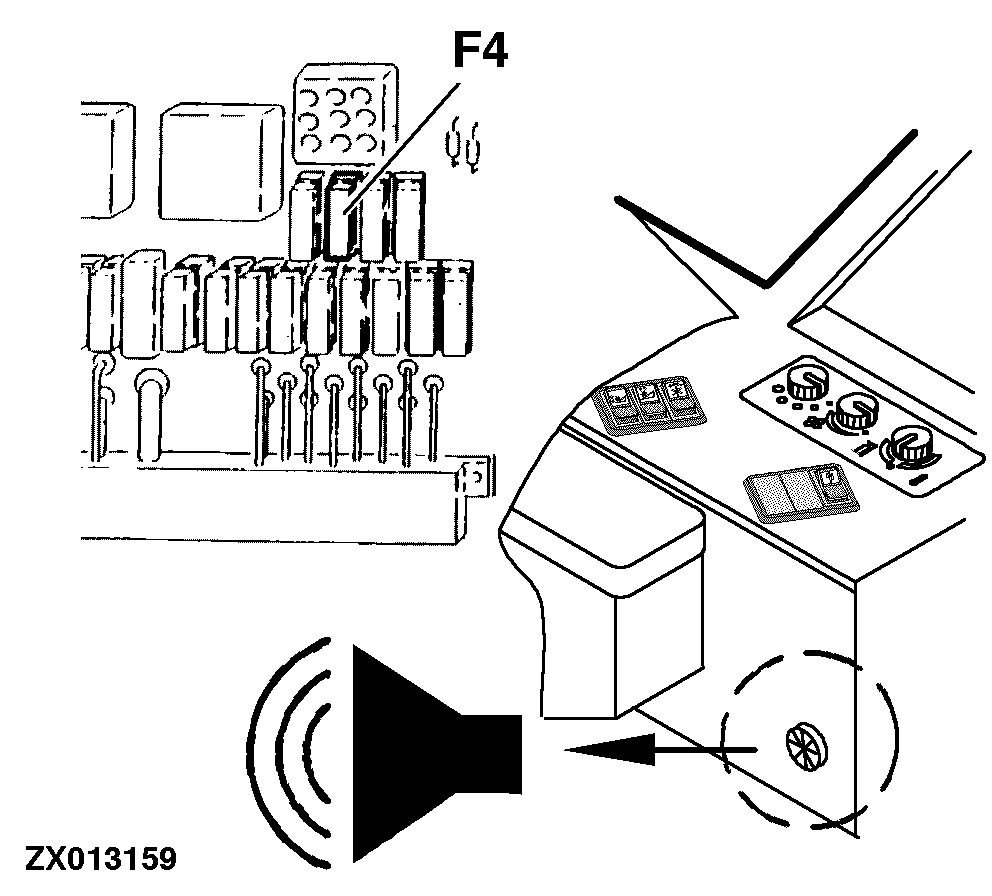

Warning Signal Does Not Sound

Perform the following component checks one after the other:

• Fuse (F4)
• Buzzer

If the problem cannot be determined and corrected by performing these checks, see your John Deere dealer.
