Test Chart 2

Indicator Light Does Not Go Off or Warning Signal Does Not Stop

Disengage main clutch.

Shut off engine.

Turn on ignition.

    Perform the following component checks one after the other:

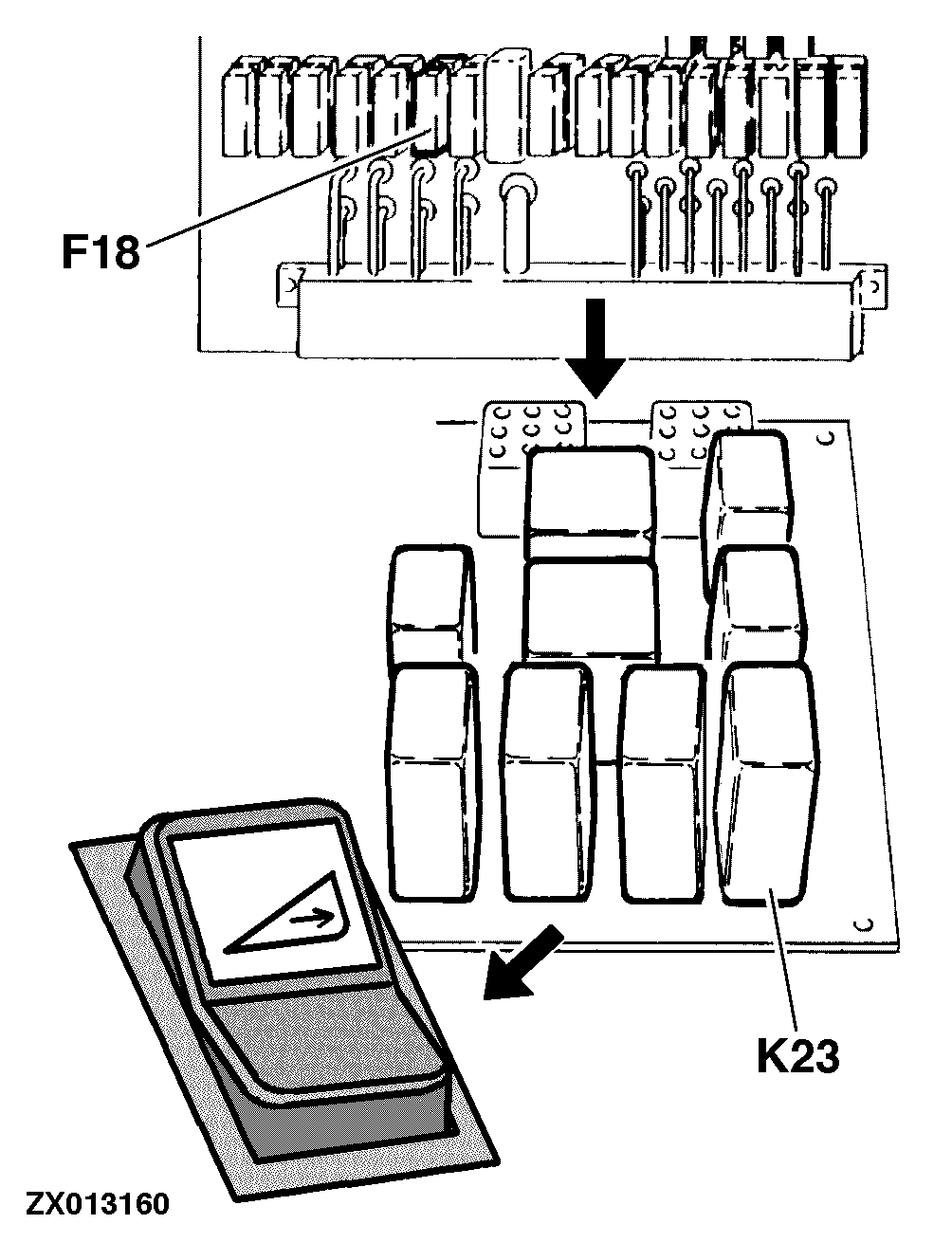

  • Fuse (F18)
  • Relay (K23)
  • Harvesting unit/reverser switch

If the problem cannot be determined and corrected by performing these checks, see your John Deere dealer.

ZX013160

ZX,OMSPFH001196 -19-01NOV97-1/1
