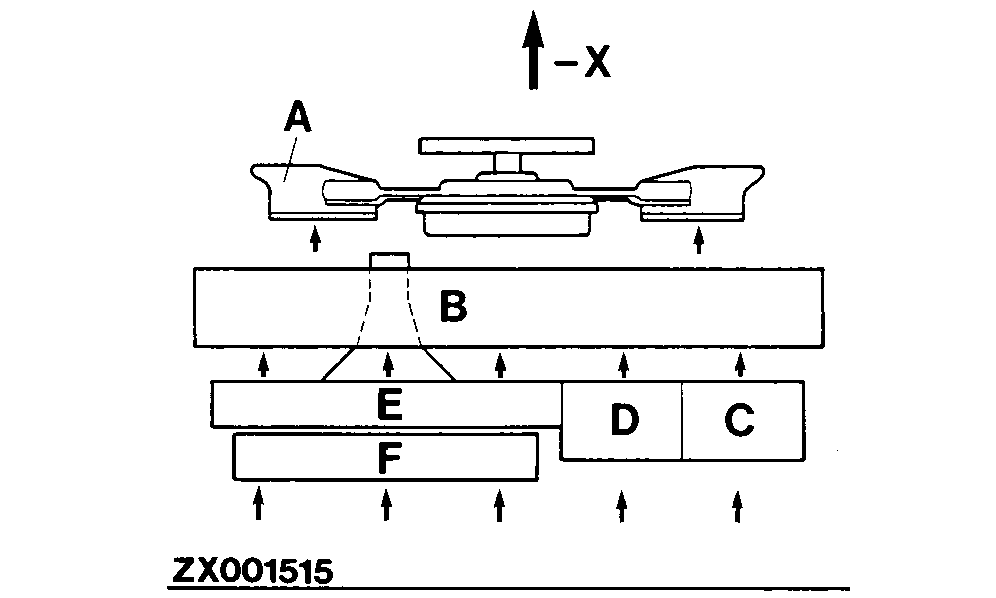

Cooling Element Location (6650, 6750 and 6850)

A-Fan with viscous drive
B-Radiator
C-Hydraulic oil cooler
D-Hydrostatic oil cooler
E-Intercooler
F-Air conditioning condenser (when equipped, swivel mounting)
X-Direction of travel
