Removing Air Cleaner Primary Element

IMPORTANT: Remove and clean air cleaner element only when red air cleaner indicator light glows.

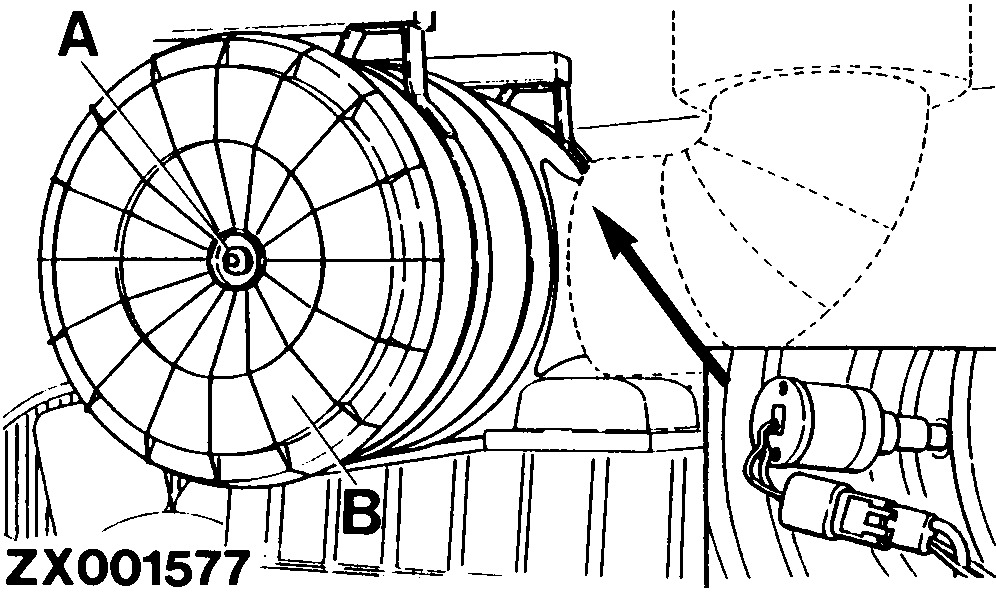

Remove nut (A).

Lift off filter cover (B).

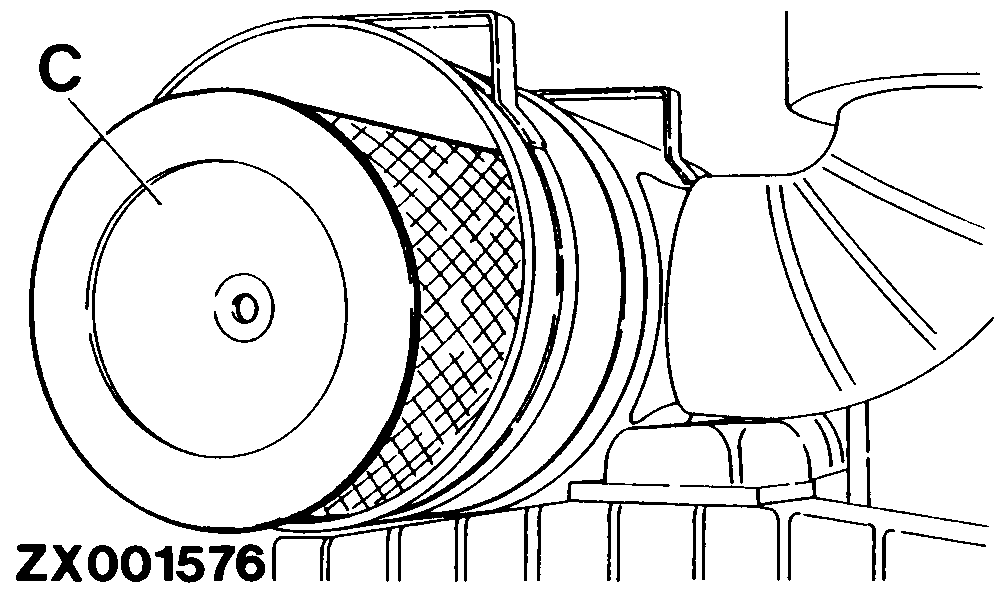

Lift out air cleaner element (C).

IMPORTANT: Never run engine without air cleaner element installed.

A-Nut
B-Filter cover
C-Air cleaner (primary element)

ZX,OMSPFH001300 -19-01NOV91-1/1
