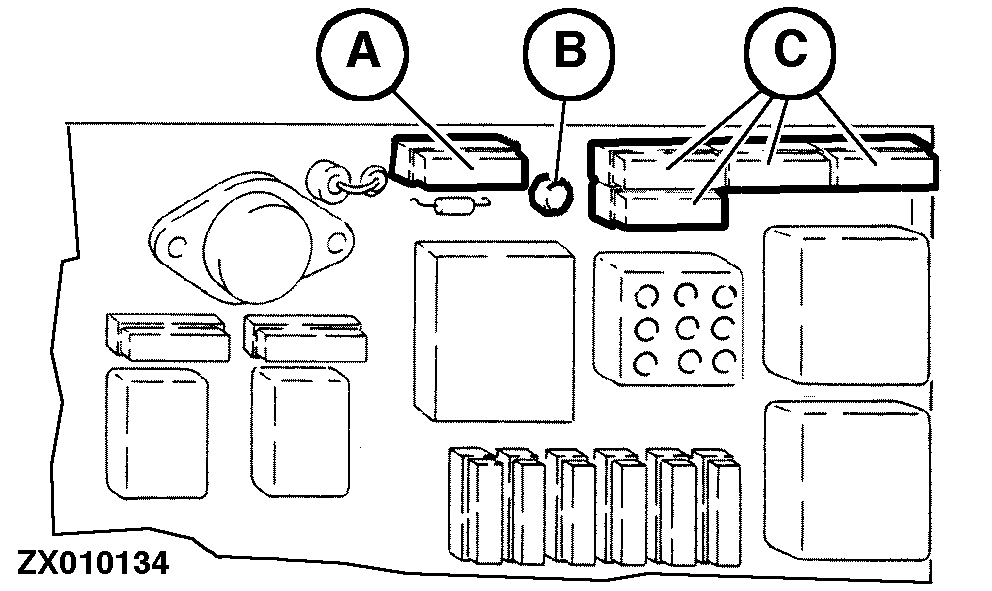

Insert the fuse to be tested into tester (A). If LED (B) does not come on, the fuse is defective.
A-Fuse tester B-LED C-Spare fuses (1x7.5 amps.; 1x15 amps.; 1x20 amps.; 1x30 amps.)
