Removing a Circuit Board

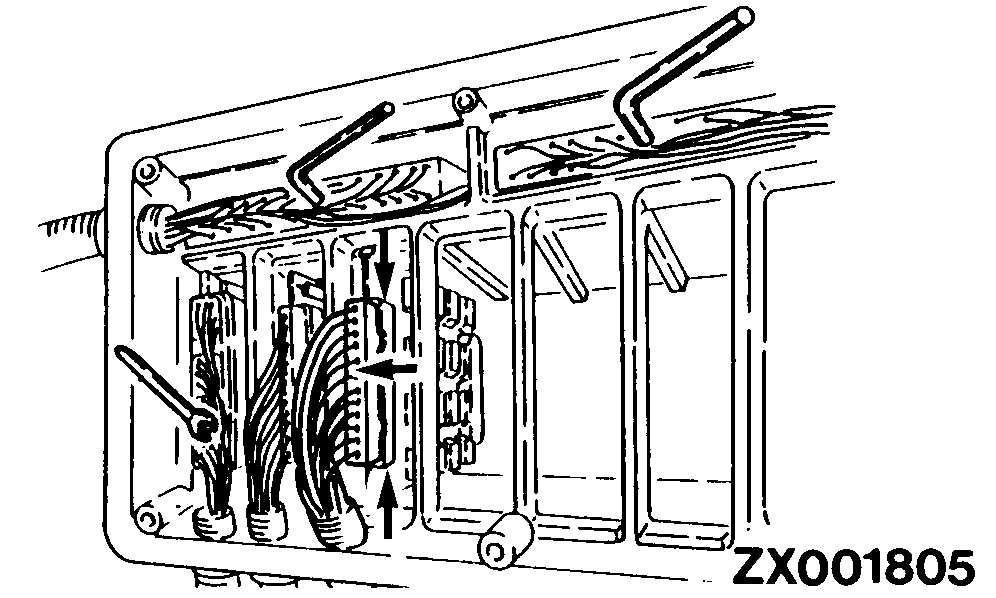

Disconnect outside connector.

ZX001805

ZX,OMSPFH001329 -19-01NOV91-1/3

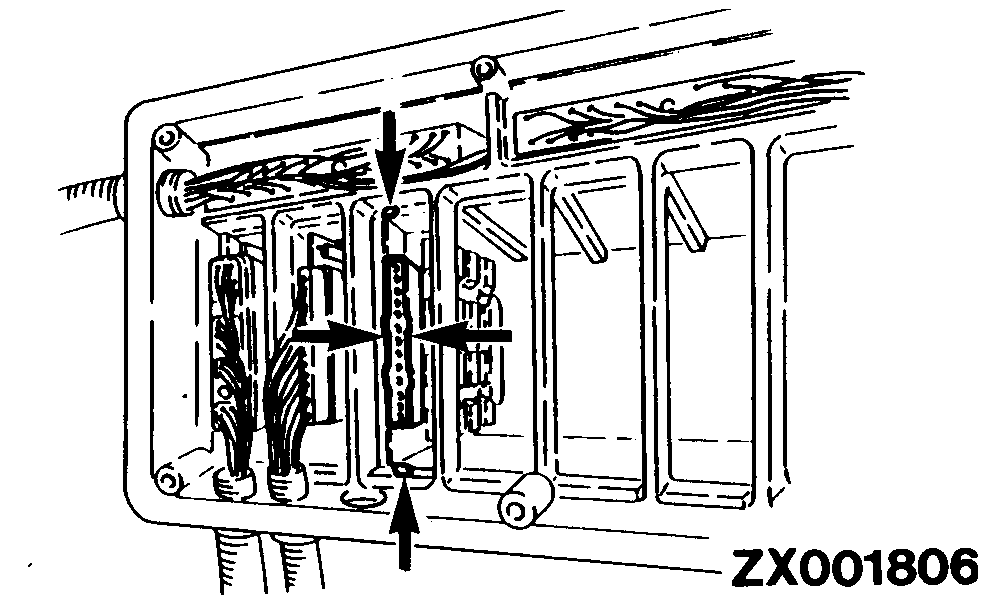

Slide board inward.

Remove board holder (as described under "Access to Fuse Board").

ZX001806

ZX,OMSPFH001329 -19-01NOV91-2/3

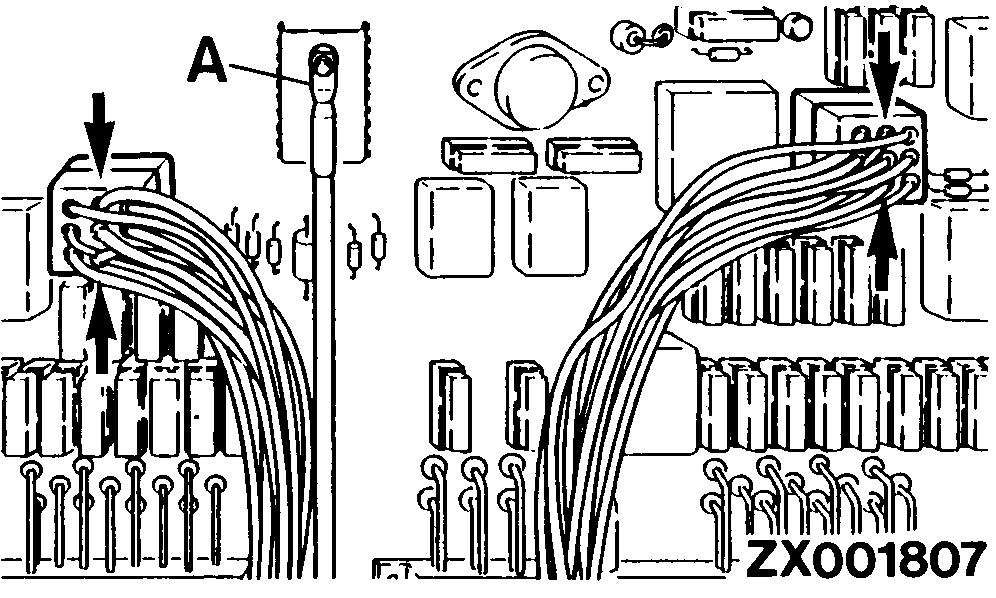

Disconnect inner connectors.

On fuse board, also remove positive cable (A).

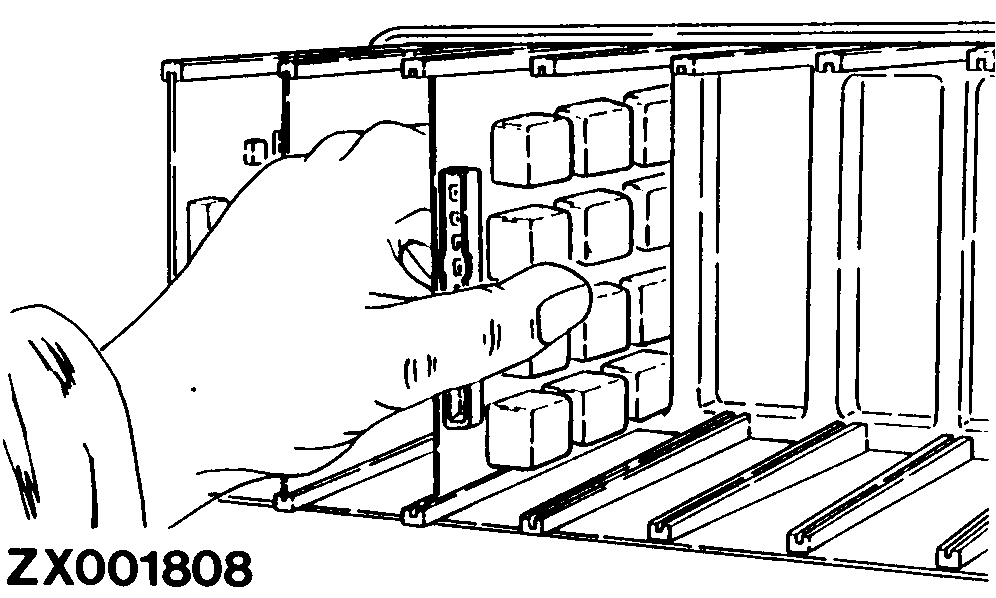

Pull out board.

ZX001807
ZX001808

ZX,OMSPFH001329 -19-01NOV91-3/3
