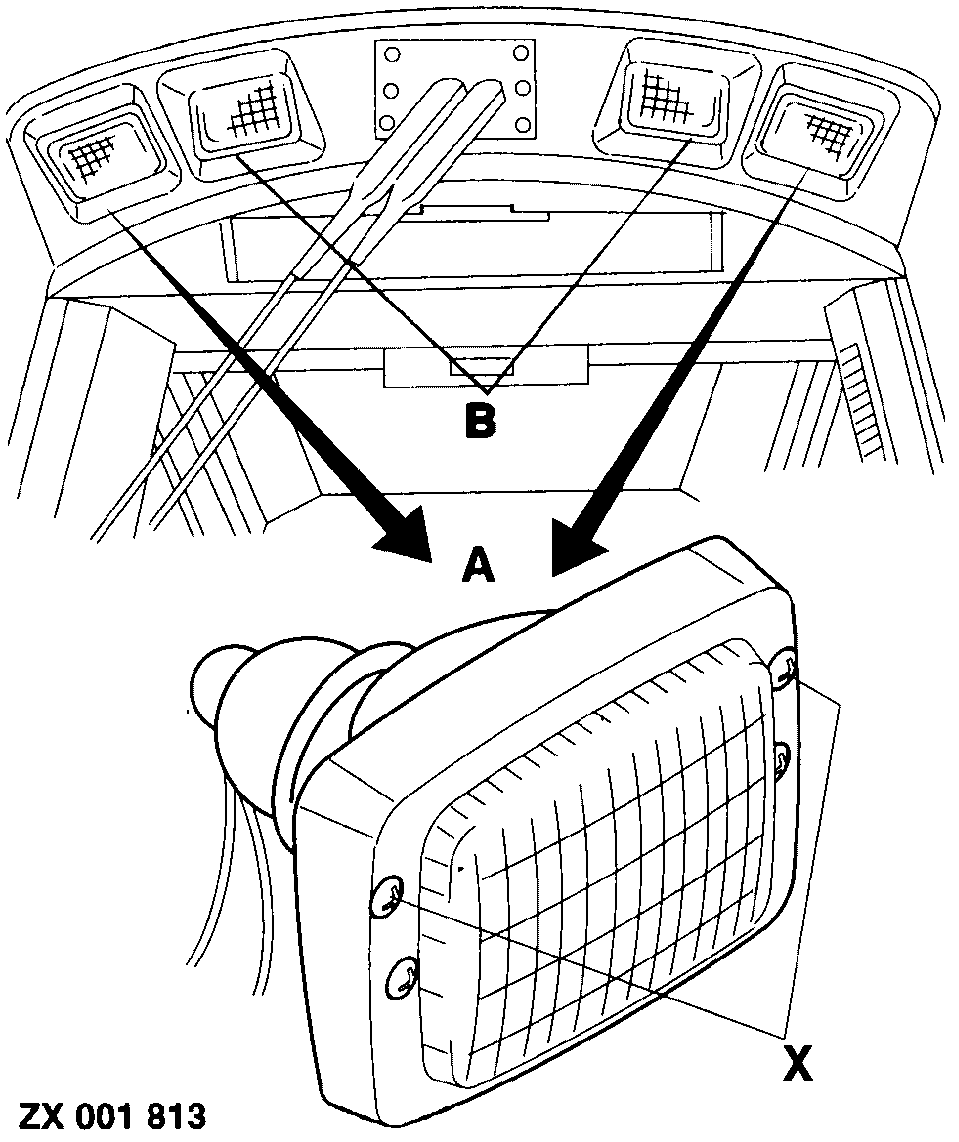

Adjusting Work Lights to Harvesting Unit Working Width

Use screws (X) to adjust work lights horizontally and vertically. Adjusting range in each direction is 6°.

A-Work lights covering working width of harvesting unit
B-Work lights covering center area of harvesting unit
X-Adjusting screws

ZX,OMSPFH001364 -19-01NOV91-1/2

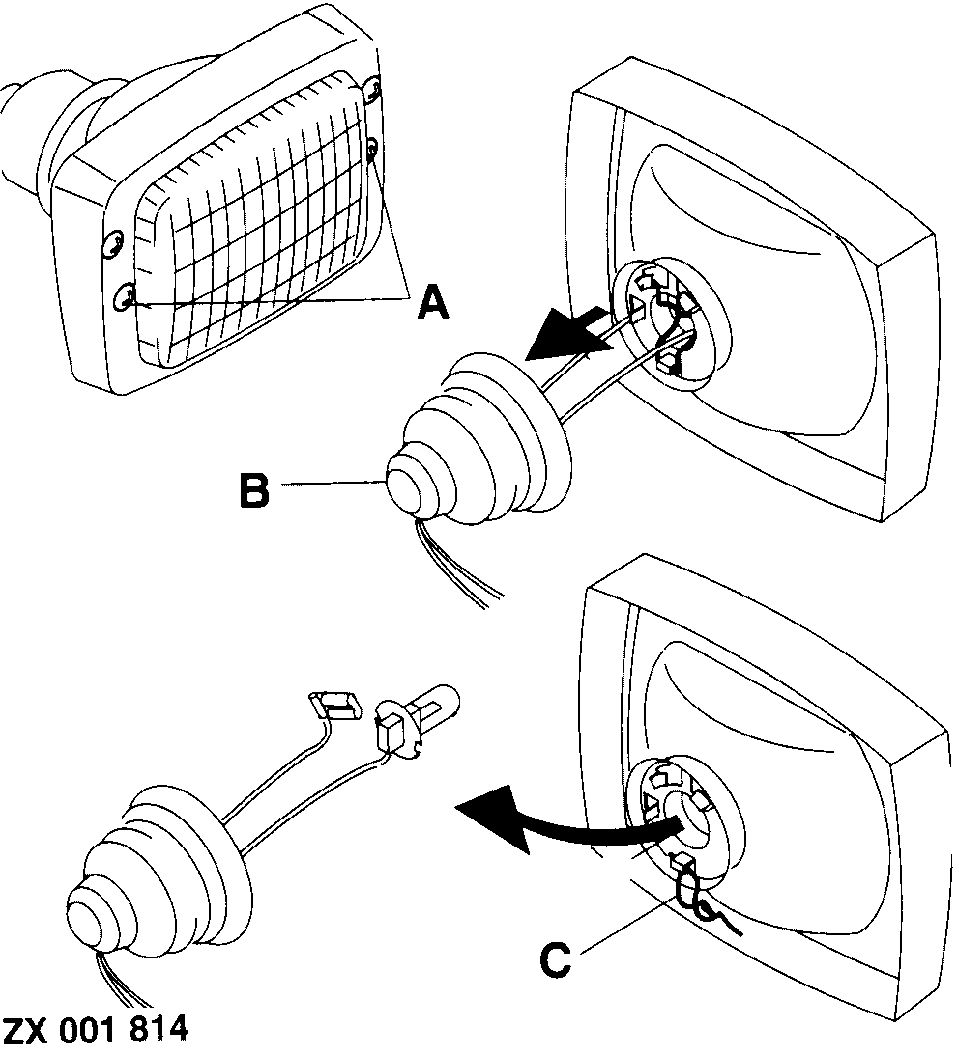

Removing Work Lights

Remove screws (A).

Pull off rubber cap (B).

Remove locking wire (C).

Replace bulb (12 V, 55 W).

ZX,OMSPFH001364 -19-01NOV91-2/2
