Low Pressure Switch

IMPORTANT: Use the highest comfortable blower speed and adjust air conditioning temperature to an intermediate setting. Avoid operating with lowest blower speed at maximum cooling temperature.

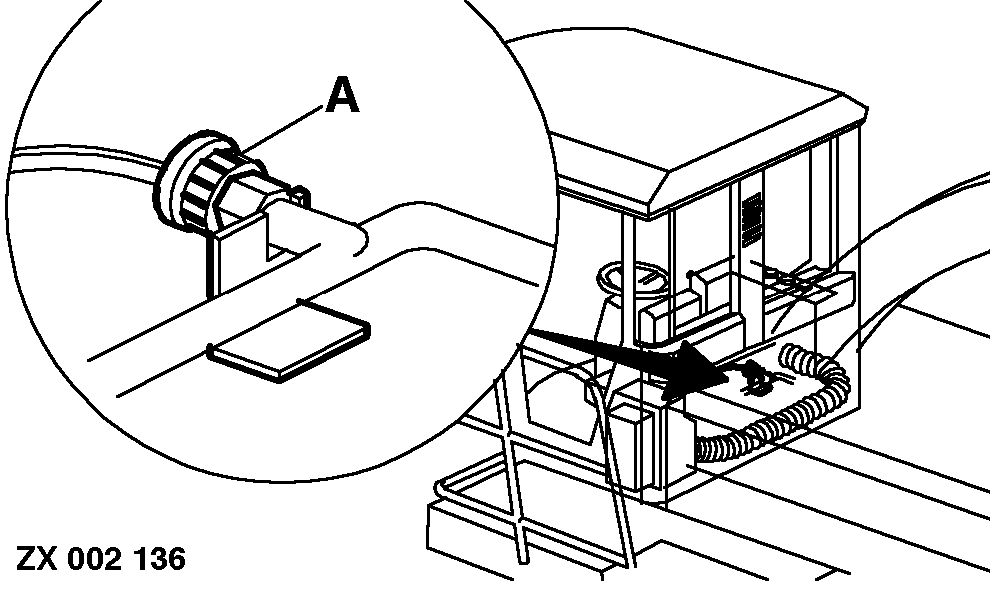

The air conditioning system is equipped with a low pressure switch (A) which switches off the system in case of refrigerant leakage. Some leakage through air conditioning hoses can not be avoided. Check refrigerant level every 100 hours of operation. If necessary, have system recharged by your John Deere dealer.

ZX,OMSPFH001408 -19-01NOV91-1/1
