Removing Paper (Main) Filter Element

IMPORTANT: Thoroughly clean paper filter element daily (e.g. with compressed air).

NOTE: Replace paper filter element after it has been washed six times.

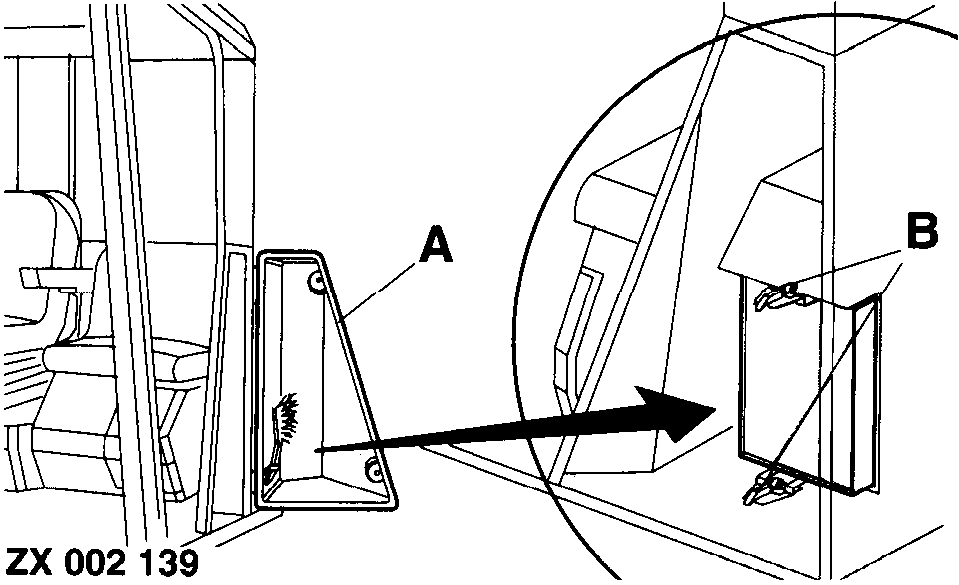

Open service cover (A).

Disengage fasteners (B).

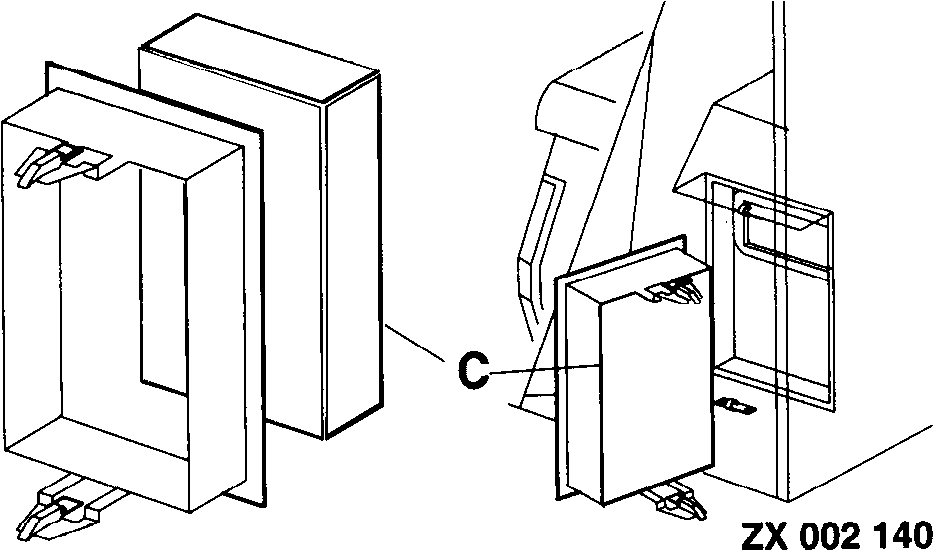

Lift out filter housing with element (C).

When reinstalling, make sure filter element is in correct position.

ZX,OMSPFH001412 -19-01NOV94-1/1
