Removing Recirculating Filter

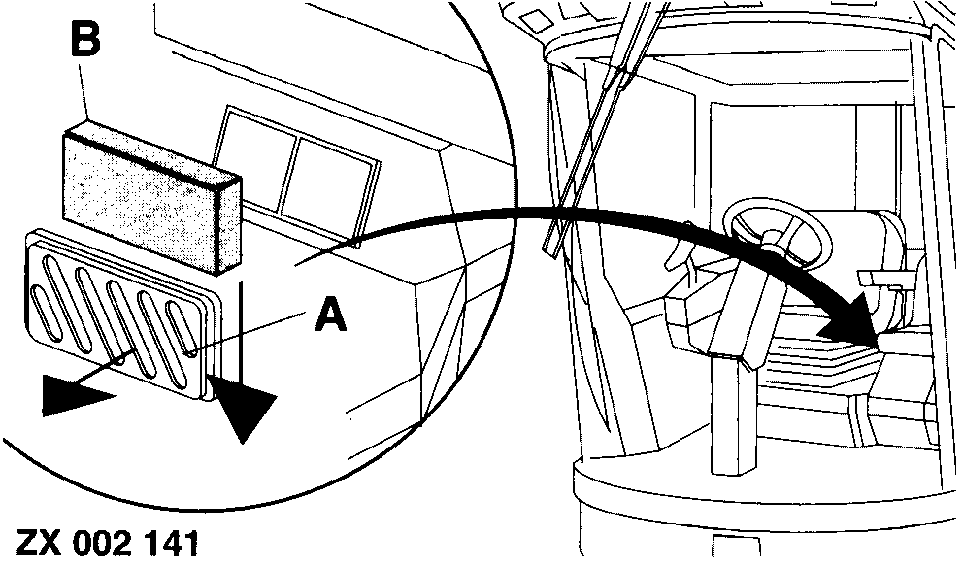

Press down grille (A) and pull out to the top.

Lift out filter element (B).

ZX002141
