Axle Spacer Attaching Screws

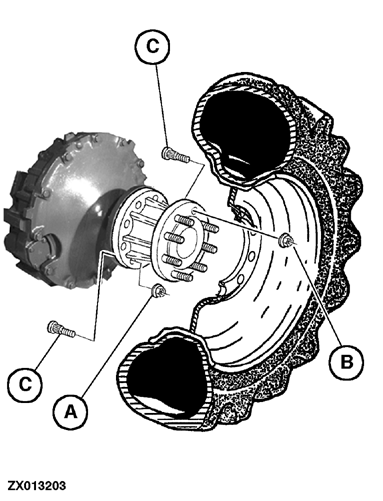

During the first 50 hours of operation, tighten attaching nut (A) of axle spacers (C) and wheel nut (B) at least every 10 hours of operation as follows:

  • A - 430 N·m (317 lb-ft)
  • B - 550 N·m (400 lb-ft)
ZX013203
