Air Comfort Seat

The seat's spring setting can be varied from soft to hard by means of lever (A).

After starting the engine, release lever (B) briefly to bring the seat to its central position.

To adjust the height, pull lever (B) upward or push it down.

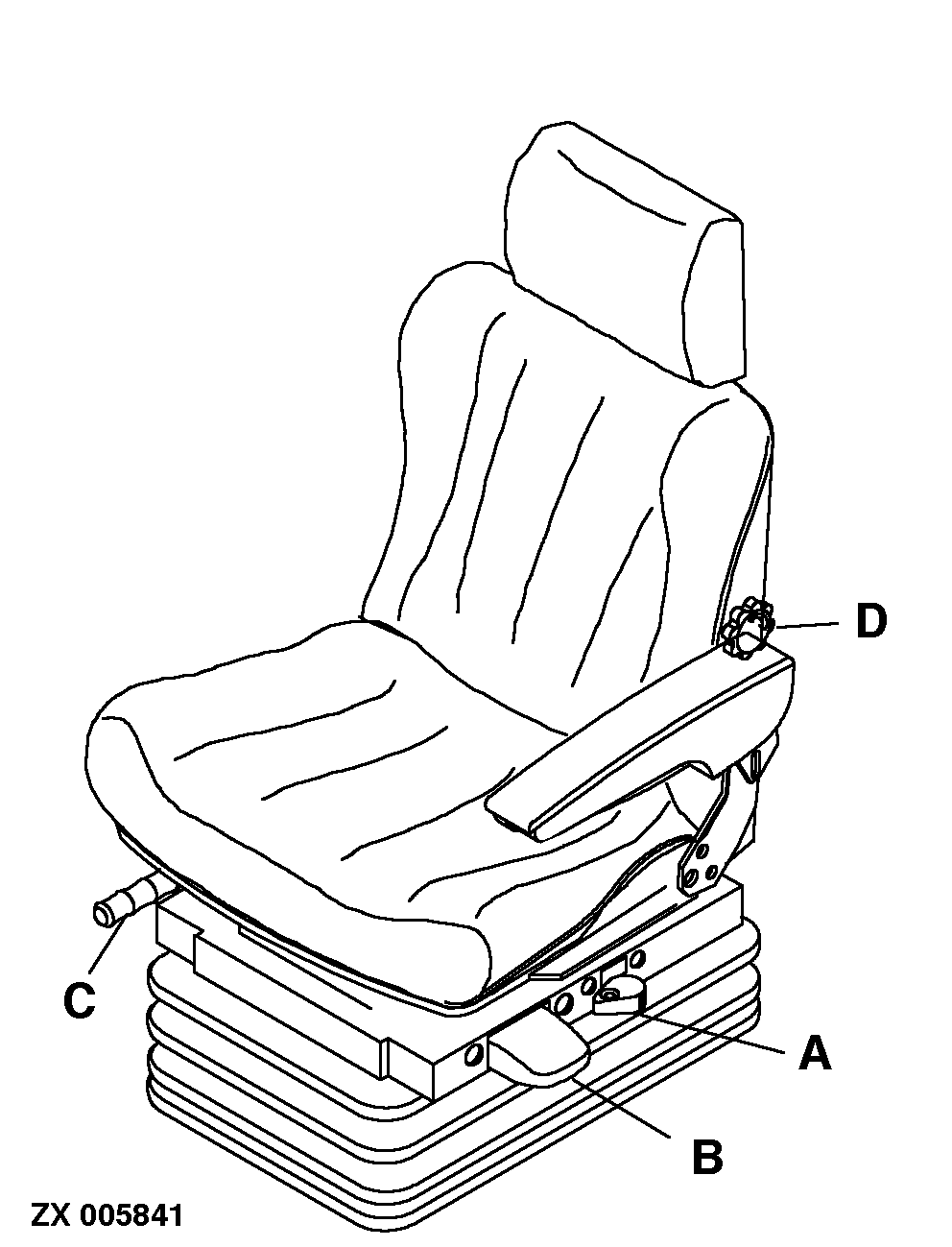

A-Spring setting adjustment
B-Height and weight adjustment
C-Horizontal adjustment
D-Lumbar support adjustment

ZX005841

ZX,OMSPFH003237 -19-01MAY94-1/1
