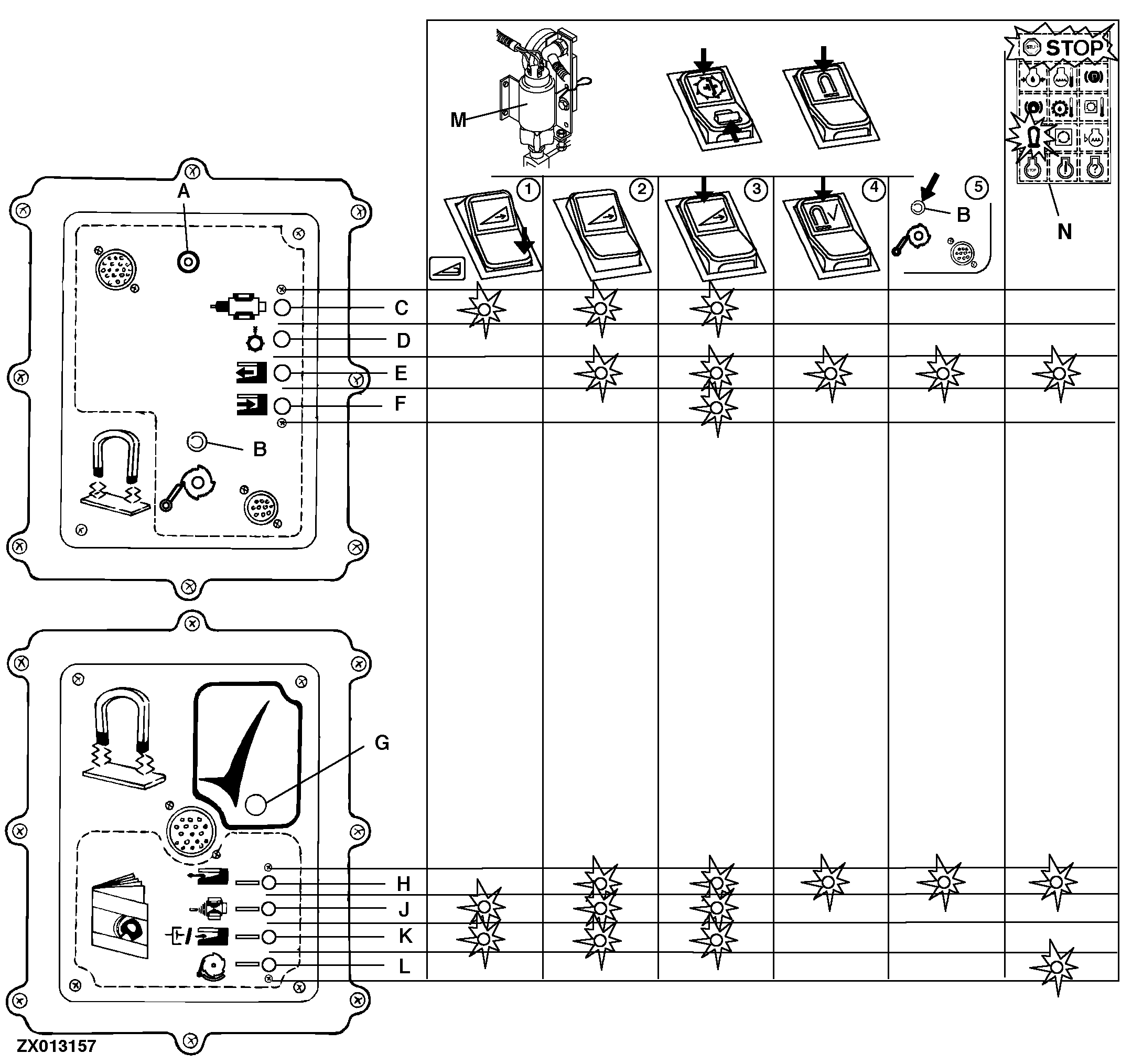

A-Test connection
B-Test key
C-Output light
D-Sensitivity light
E-Reset light (reversing)

F-Clutch light (feeding system)
G-Metal detector test button
H-Reset light
J-Solenoid light

K-Clutch shift light
L-Circuit control light for locking pawl magnetic switch

M-Locking pawl magnetic switch
N-Metal detector indicator light

NOTE: After starting the engine, only indicator light (K) will glow when reversing for the first time. The indicator light combination shown in column (1) applies to reversing during operation.

If indicator lights (L) and (N) glow simultaneously, check adjustment of locking pawl magnetic switch (M). Replace switch, if necessary.
