Adjusting Locking Pawl

CAUTION: Before carrying out any adjustment or service work, always disengage all drives, shut off engine and wait until all moving parts have stopped.

If the slip clutch at length-of-cut transmission slips when changing over from reversing to forward, the reason may be an incorrect adjustment of the locking pawl.

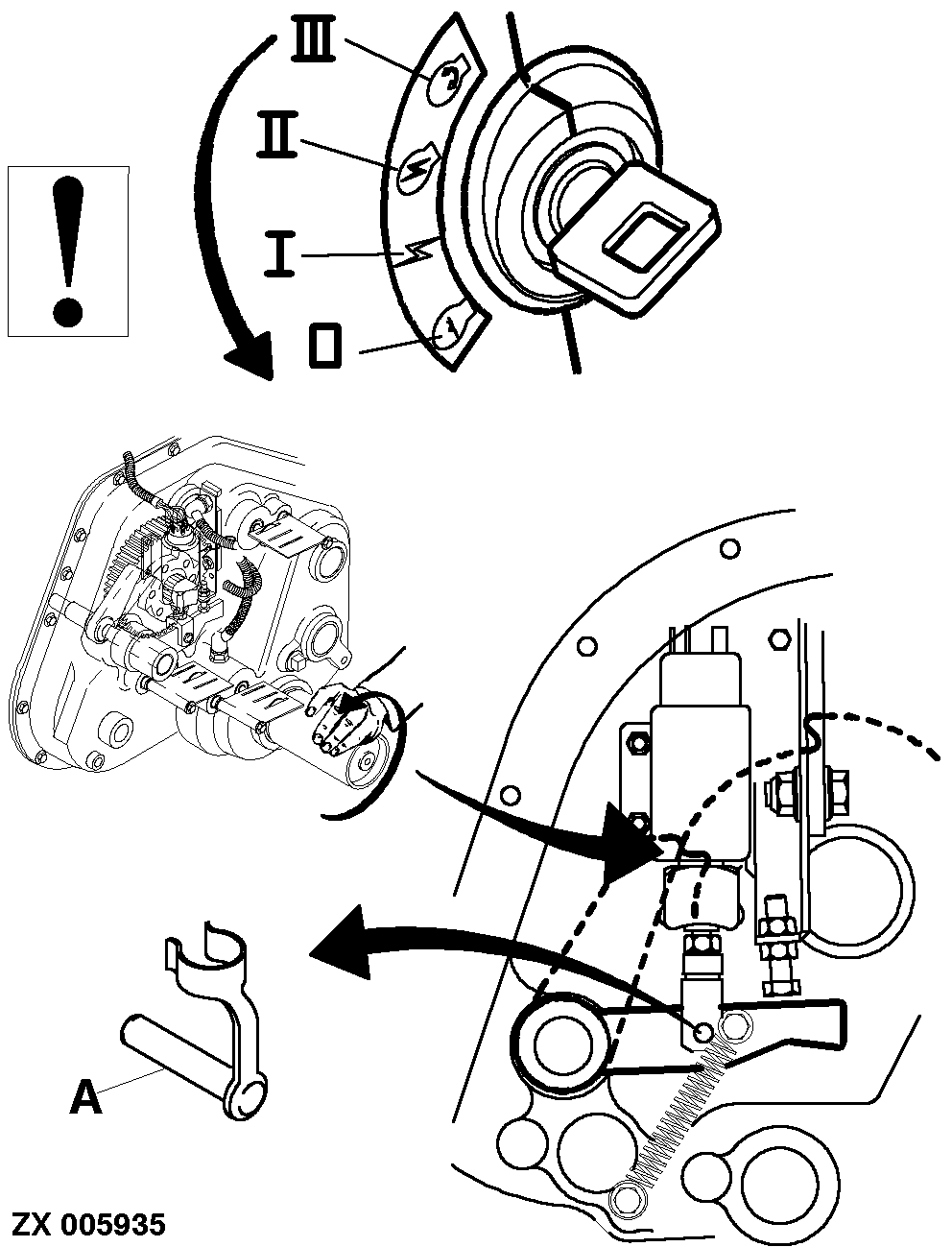

With ignition off, remove locking pin (A). Rotate slip clutch forward by hand until it can be felt that the locking pawl is at the highest point of a cam on the cam wheel.

ZX,OMSPFH003266 -19-01MAY94-1/6

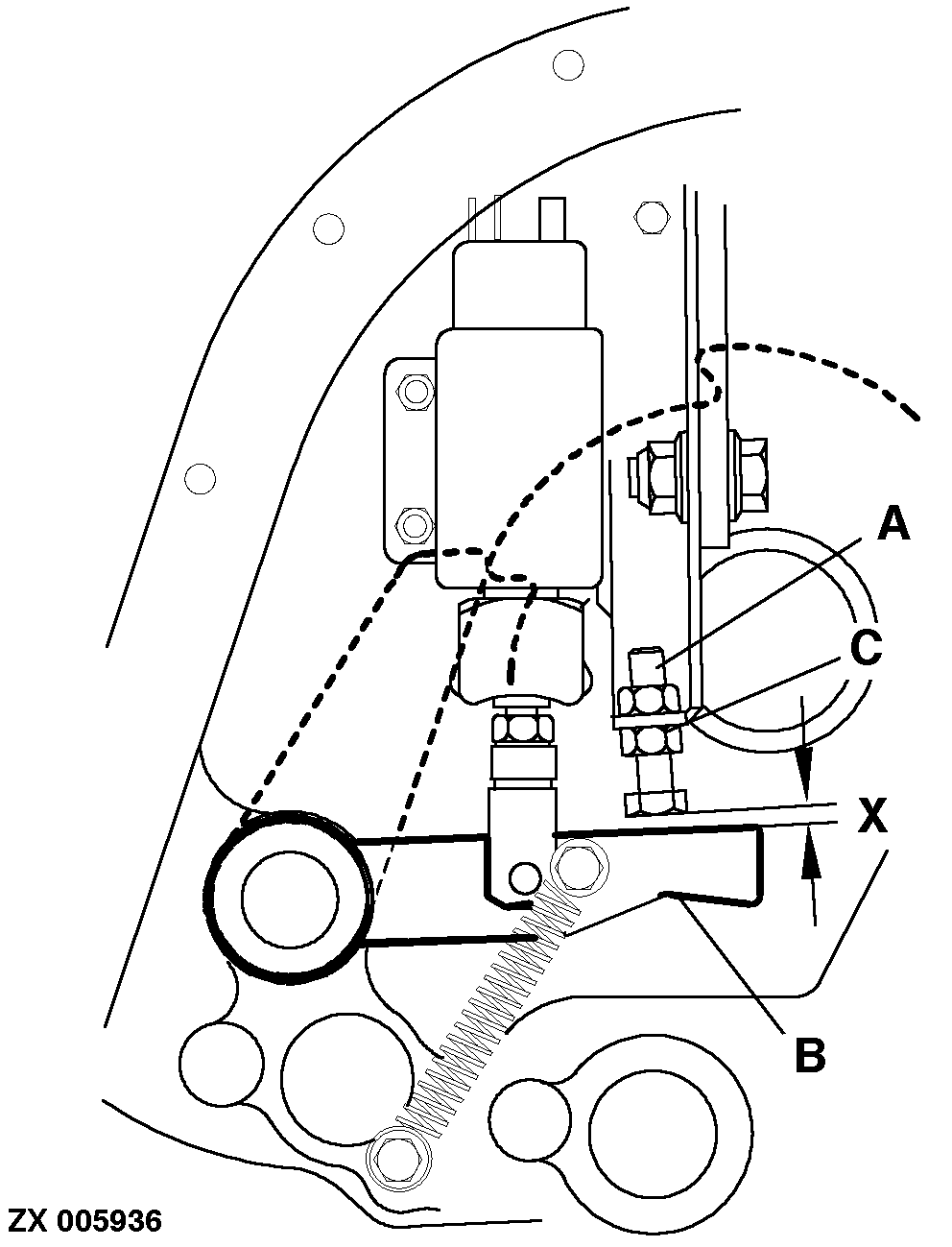

Adjust clearance X = 3-4 mm (0.12-0.16 in.) between screw head and lever (B) by means of cap screw (A). Tighten lock nut (C).

A-Cap screw
B-Lever
C-Lock nut
X-Clearance 3-4 mm (0.12-0.16 in.)

ZX,OMSPFH003266 -19-01MAY94-2/6

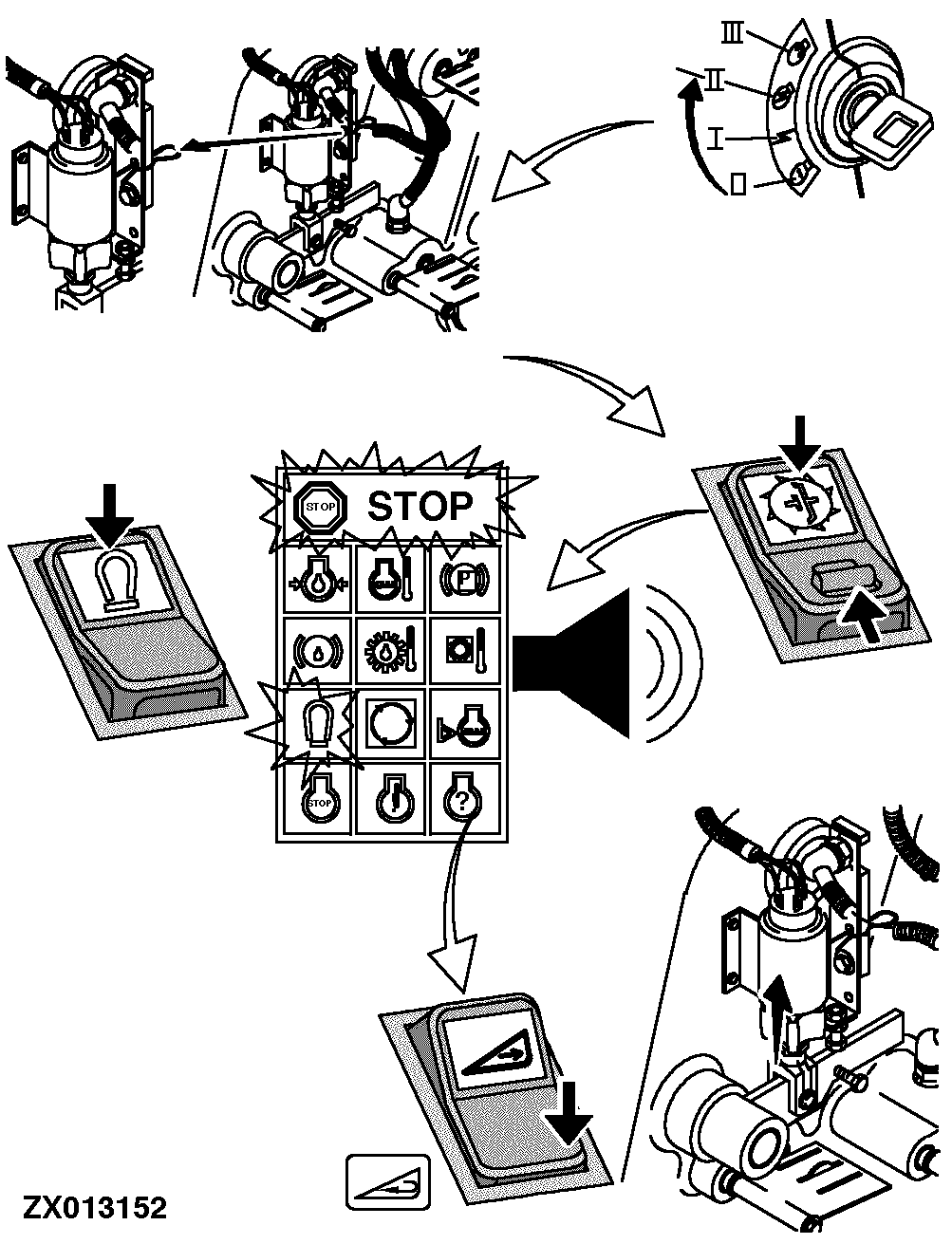

Turn on ignition

Metal detector activated

Engage main clutch

Switch on metal detector

Reverse feed rolls

locking pawl magnetic switch is supplied with current

ZX,OMSPFH003266 -19-01MAY94-3/6

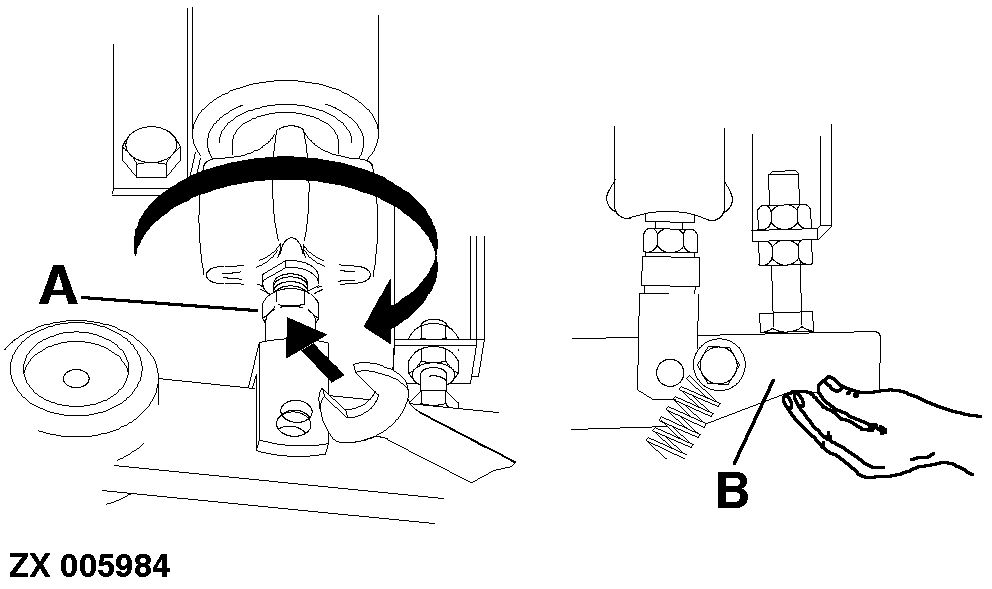

Loosen lock nut (A). Raise lever (B) up to the screw head.

A-Lock nut
B-Lever

ZX,OMSPFH003266 -19-01MAY94-4/6

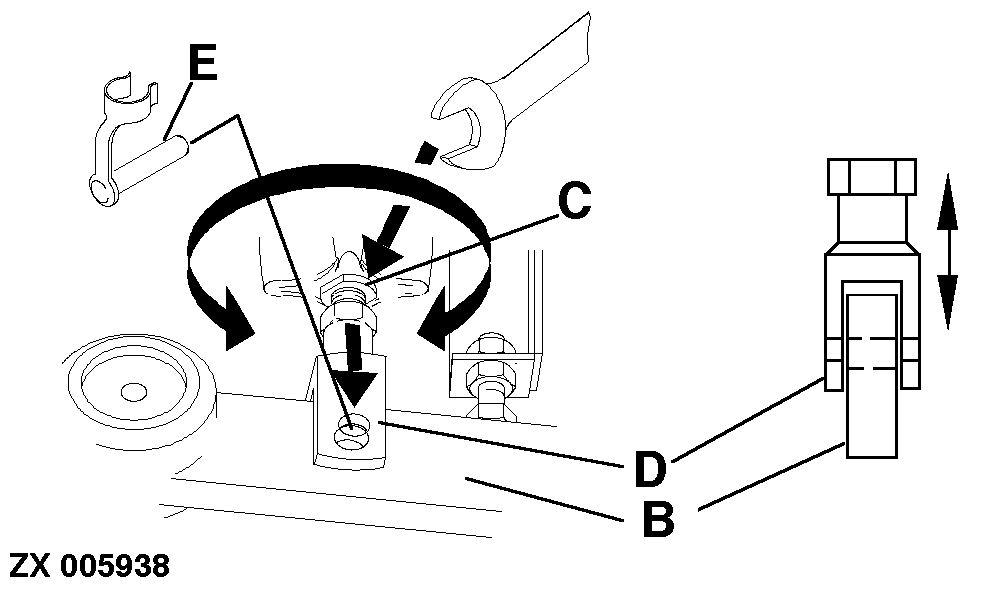

Turn plunger (C) until upper edge of bore in yoke (D) is aligned with upper edge of bore in lever (B). Install locking pin (E).

B-Lever
C-Plunger of locking pawl magnetic switch
D-Yoke
E-Locking pin

ZX,OMSPFH003266 -19-01MAY94-5/6

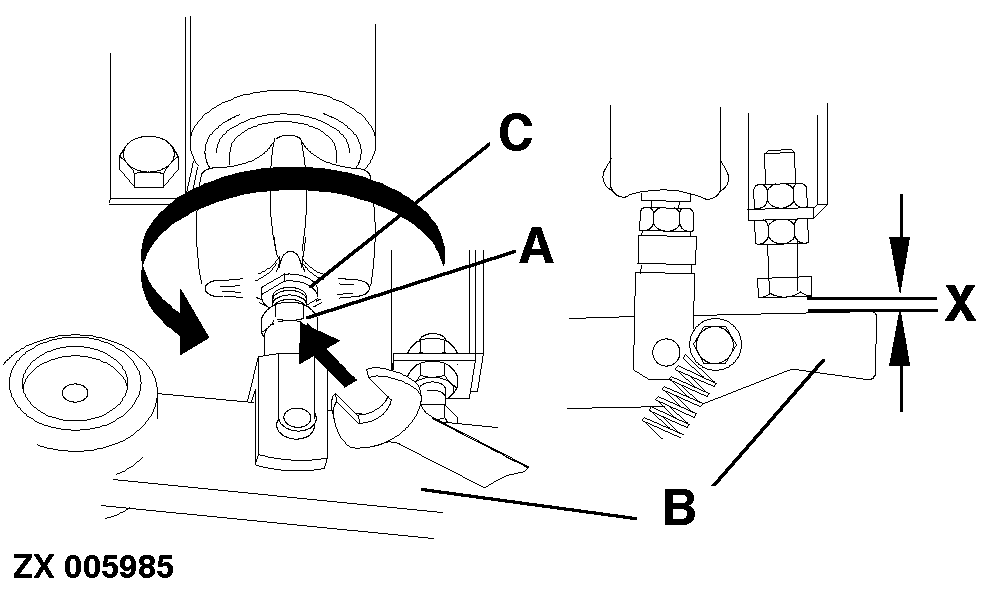

Rotate plunger (C) downward until a gap X = 0.1 - 0.2 mm (0.0039-0.0078 in.) is obtained between lever (B) and screw head. Tighten lock nut (A).

A-Lock nut
B-Lever
C-Plunger of locking pawl magnetic switch
X-Clearance 0.1-0.2 mm (0.0039-0.0078 in.)

ZX,OMSPFH003266 -19-01MAY94-6/6
