Removing Bottom and Outlet Bands

CAUTION: Before servicing or adjusting the harvester, always disengage all power, shut off engine and wait until all moving parts have stopped.

CAUTION: Before removing bottom and outlet bands, lock cutterhead (e.g. by means of a wooden block).

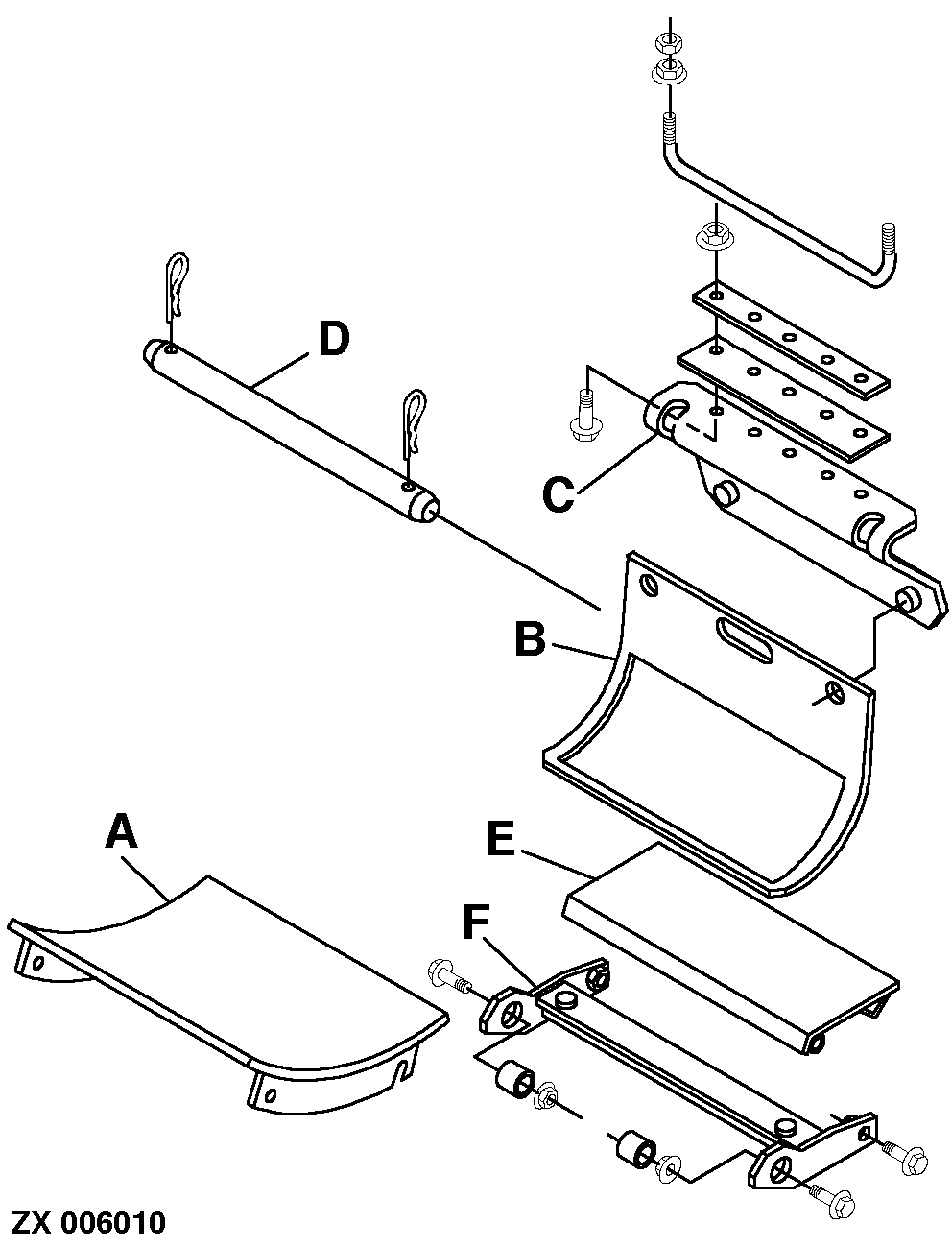

Prior to installation of spiral floor, be sure to remove bottom band, outlet band/recirculating screen, transition flap and corresponding supports with hardware (see illustration opposite).

NOTE: Keep all parts removed for future possible use.

A-Bottom band
B-Outlet band/recirculating screen
C-Support (top)
D-Locking device
E-Transition flap
F-Support (bottom)
