Moving Kernel Processor into Working Position

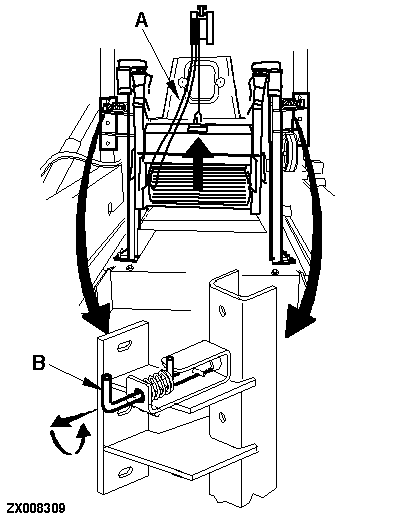

Step 1

Lift kernel processor slightly by means of chain hoist (A).

On both sides move lock (B) outward and rotate 90° (to the top).

ZX008309

ZX,OMSPFH004002 -19-01DEC96-1/3

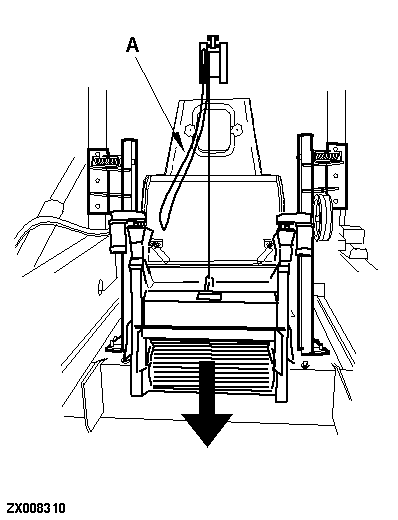

Step 2

Lower kernel processor by means of chain hoist (A) until it is secured in attaching pins of front axle.

ZX008310

ZX,OMSPFH004002 -19-01DEC96-2/3

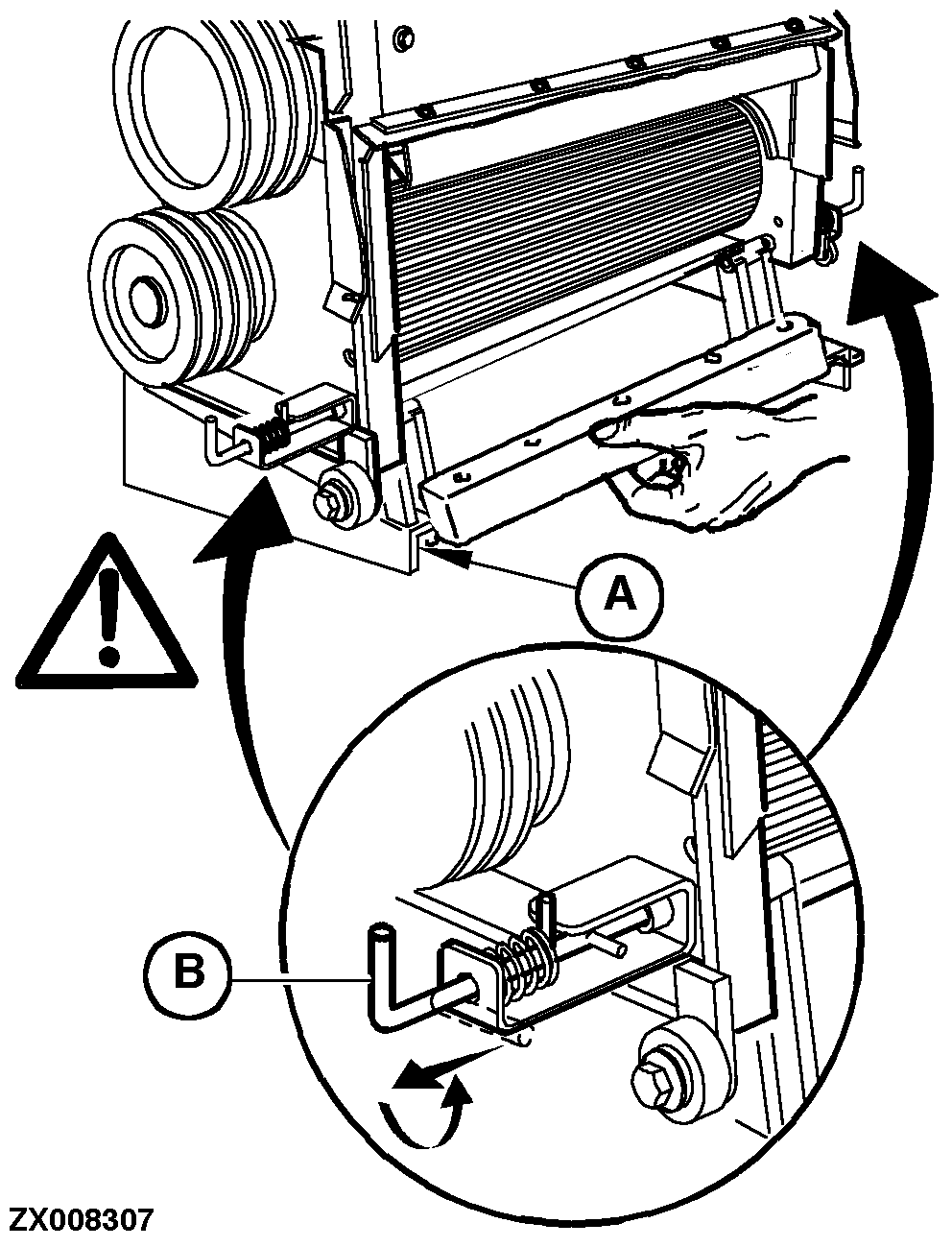

Upper Section

Hold upper section of grass transition chute with one hand.

On both sides move lock (B) outward and rotate 90° (to the top).

Disengage upper section (A).

ZX008307

ZX,OMSPFH004002 -19-01DEC96-3/3
