Service Code Switch (6950 Only)

Calling up service codes is only possible with ignition turned on.

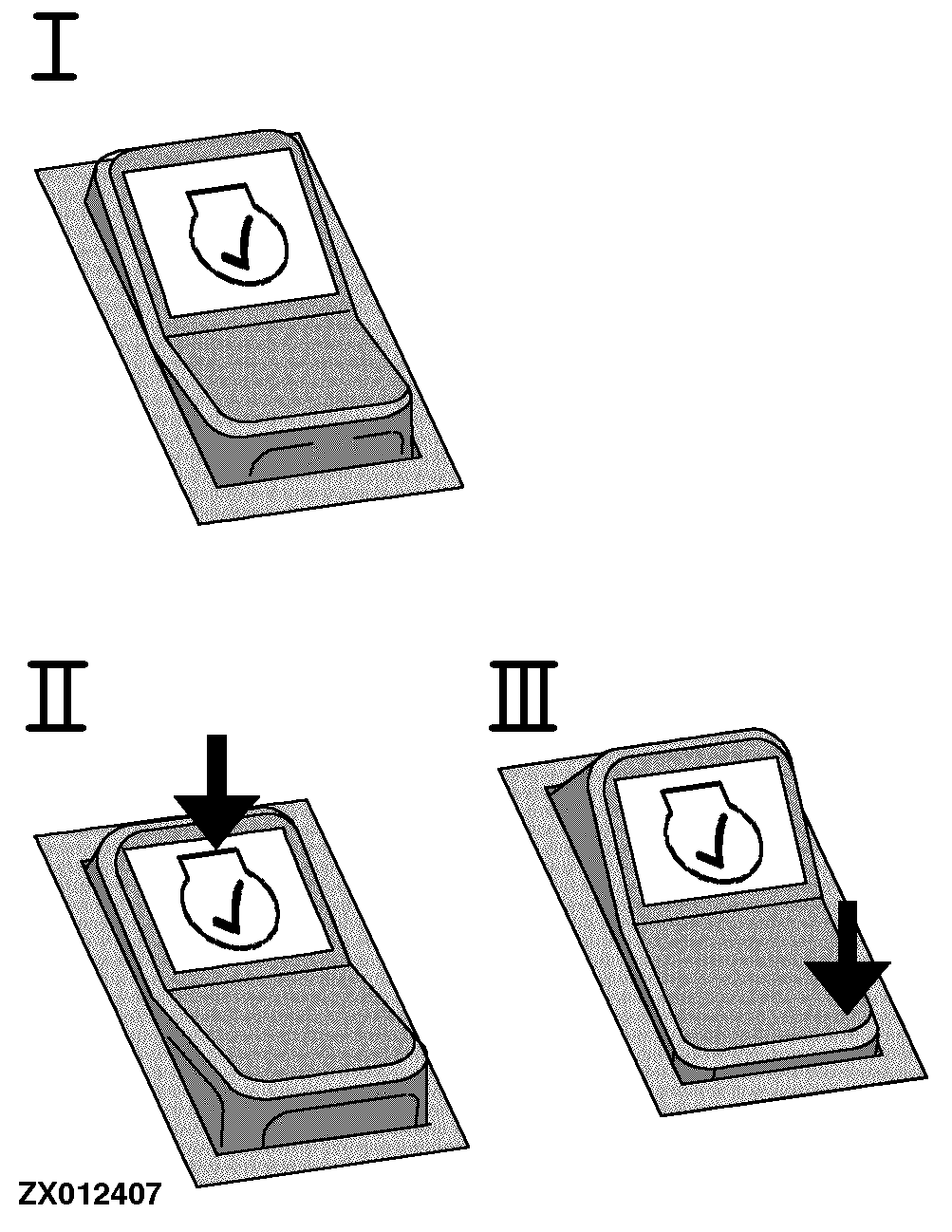

I - Neutral Position:

Service code display - one or more service code(s) are displayed at indicator light unit I after being called up.

II - Rocker Switch Function:

Calling up service codes - stored service codes are called up successively by pressing the side of the switch with the symbol on it for at least two seconds.

III - Tumbler Switch Function:

Operating position - errors or malfunctions occurring during operation are indicated at indicator light unit. The corresponding indicator lights and the STOP light will come on.

NOTE: For details regarding service code display and for a list of service codes, see Section "Service - Electrical System".
