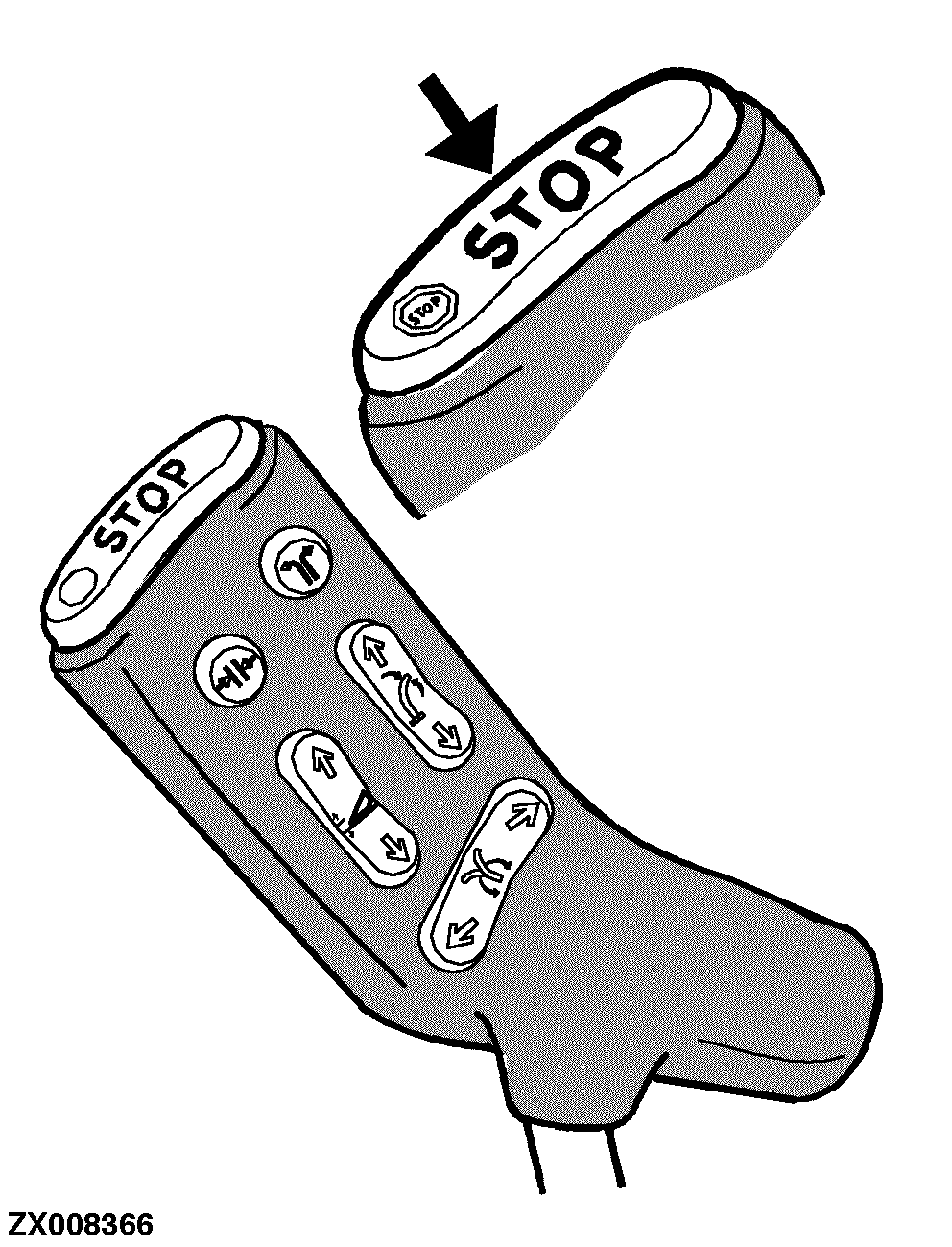

Quick Stop Switch On Multi-Function Lever

This function shuts down all automatic functions (kernel processor roll clearance, stationary knife adjustment, sharpening knives), regardless of whether the metal detector is activated or not.

Provided the metal detector is switched on, this function switches off the electromagnetic clutch, so the feed rolls and harvesting unit stop immediately.

With the exception of "Sharpening knives", all the programs can be started immediately. For the "knife-sharpening" function, first select the manual function at the control unit (MAN key) to raise the sharpening stone clear of the cutterhead knives (see section "Warning Devices and Monitors"), and then restart the automatic functions.

Move "feed roll and harvesting unit/reverser switch" to neutral, reverse for at least 5 seconds and then move forward to the "ON" position.
