Installing the Power Chute on the Attaching Frame

CAUTION: Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.

Move adapter frame of feed roll housing into vertical position.

Remove the grass channel.

ZX,OMSPFH013198 -19-01MAY99-1/4

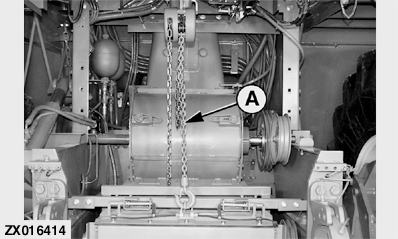

Use chain hoist (A) to raise the power chute until it is level with the engagement points.

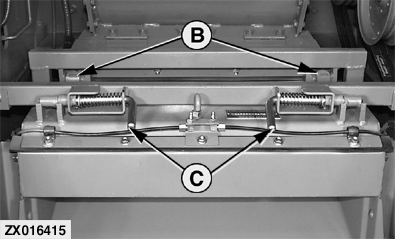

Engage the attaching straps (B) at the rear of the power chute in the locating pins at the rear of the attaching frame, then use latches (C) to secure the power chute at the front of the attaching frame.

ZX,OMSPFH013198 -19-01MAY99-2/4

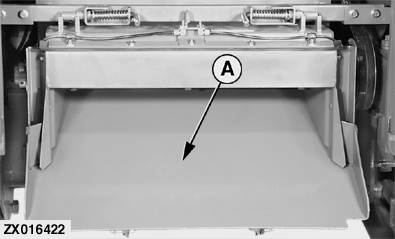

Engage the power chute's service cover/feed plate (A), close it and lock it with latch (B).

Adjust the service cover (see "Cutterhead, Drives, Guards, Covers" section).

Adjust the seal at the front of the cutterhead and the seal at the power chute outlet.

ZX,OMSPFH013198 -19-01MAY99-3/4

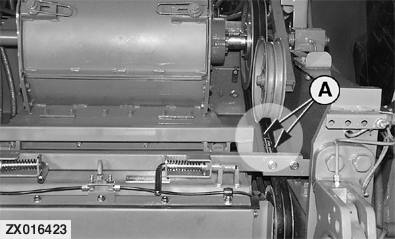

Install drive belt (A).

Align the drive belt (see "Drive Belt" in this section).

CAUTION: The power chute weighs approx. 51 kg (112.4 lb). Use a suitable heavy-duty hoist.

NOTE: Remove the power chute in reverse order (with regard to installation procedure).

ZX,OMSPFH013198 -19-01MAY99-4/4
