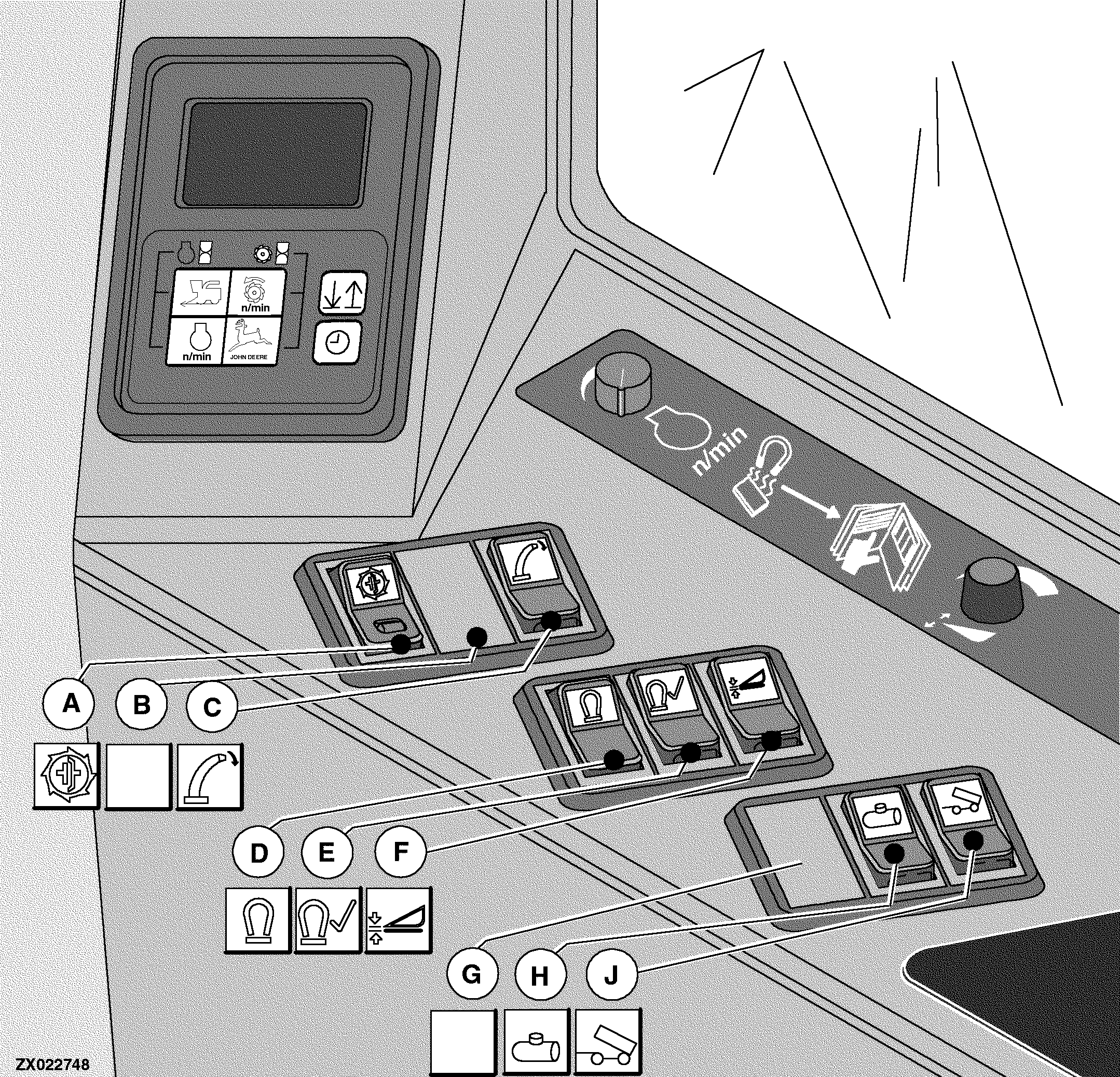

Switch Console
A-Main clutch switch
B-Not used
C-Switch - raise/lower discharge spout
|
D-Metal detector switch
E-Metal detector test switch
F-Header height resume switch
|
G-Not used
H-Spout rinsing switch (option)
|
J-Trailer dump switch (option)
|
|
|
ZX,OMUSFH000135 -19-30OCT00-1/4
|

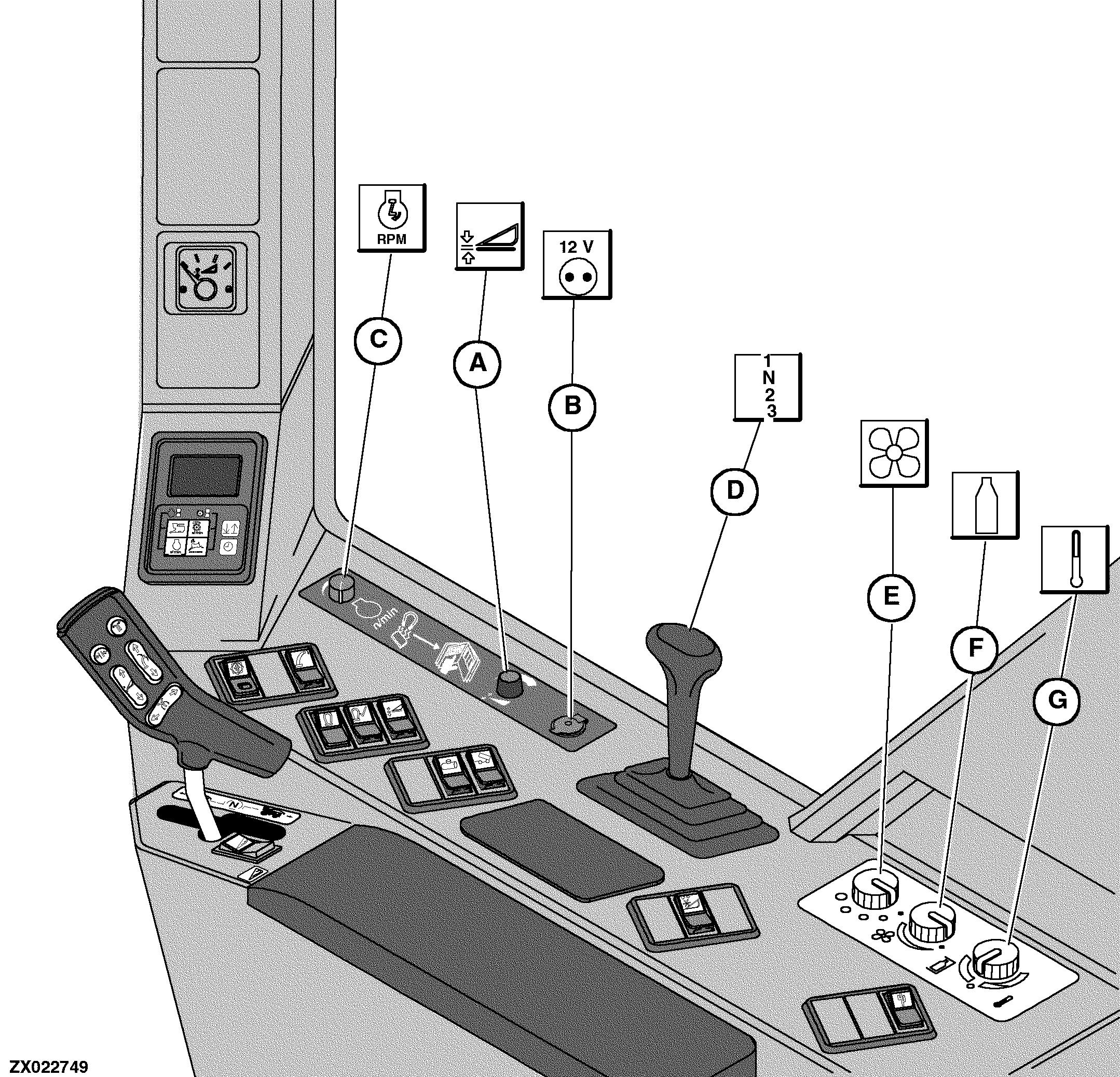

A-Potentiometer, header height resume control
B-12-volt connection
|
C-Throttle lever
D-Gear shift lever
E-Fan switch
|
F-Cooling compartment switch
|
G-Air conditioner/heater switch
|
|
|
ZX,OMUSFH000135 -19-30OCT00-2/4
|

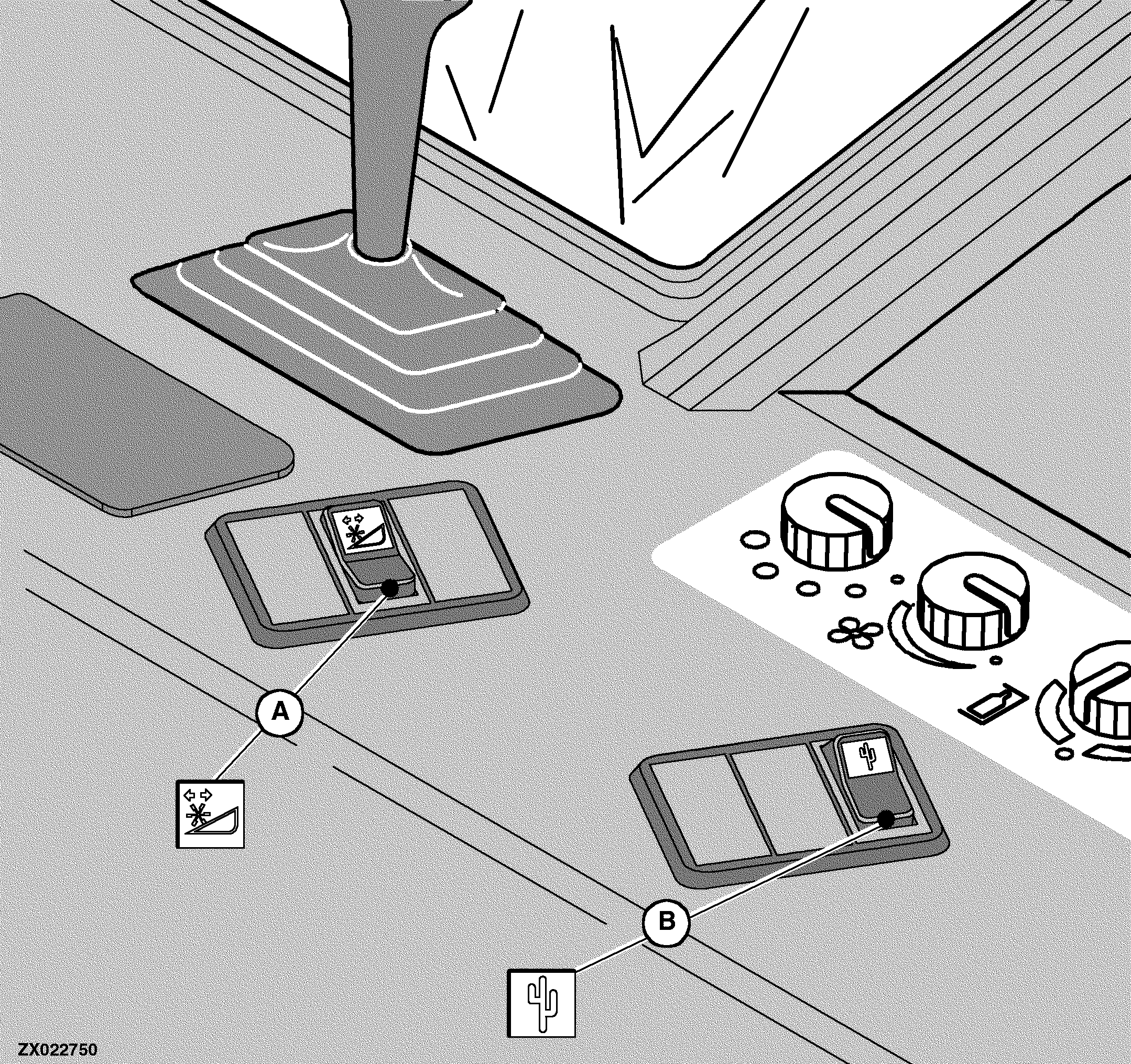

| | A-Folding 676, 688 and 710 harvesting units (for operation see unit operator's manuals)/windrow deflector for pickup (options)
| B-Dehumidifier
|
|
|
|
ZX,OMUSFH000135 -19-30OCT00-3/4
|

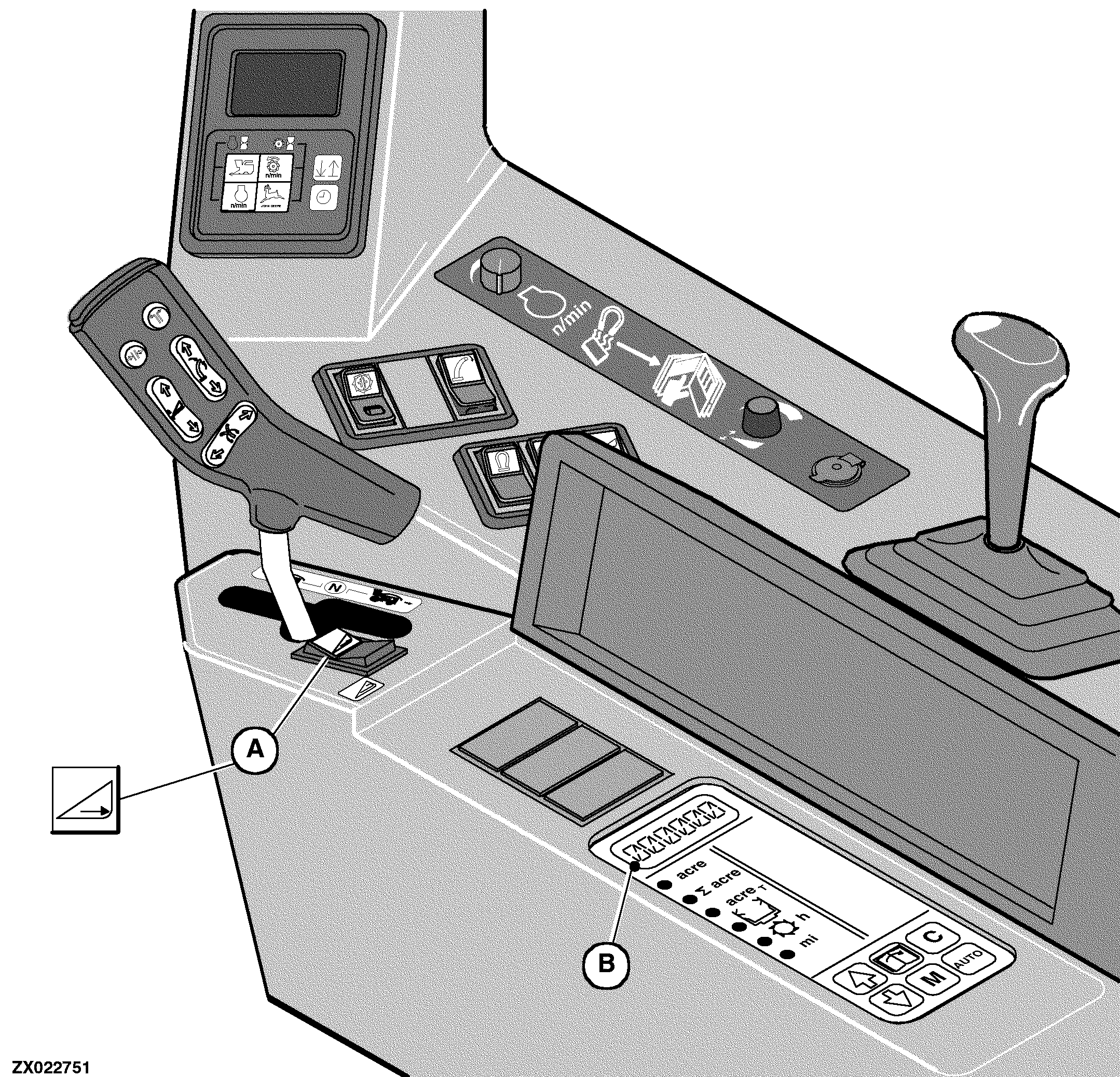

| | A-Harvesting unit/reverser switch
| B-Area counter (option)
|
|
|
|
ZX,OMUSFH000135 -19-30OCT00-4/4
|
|
