Rear Turn-Signal Lights, Tail Lights and Stop Lights

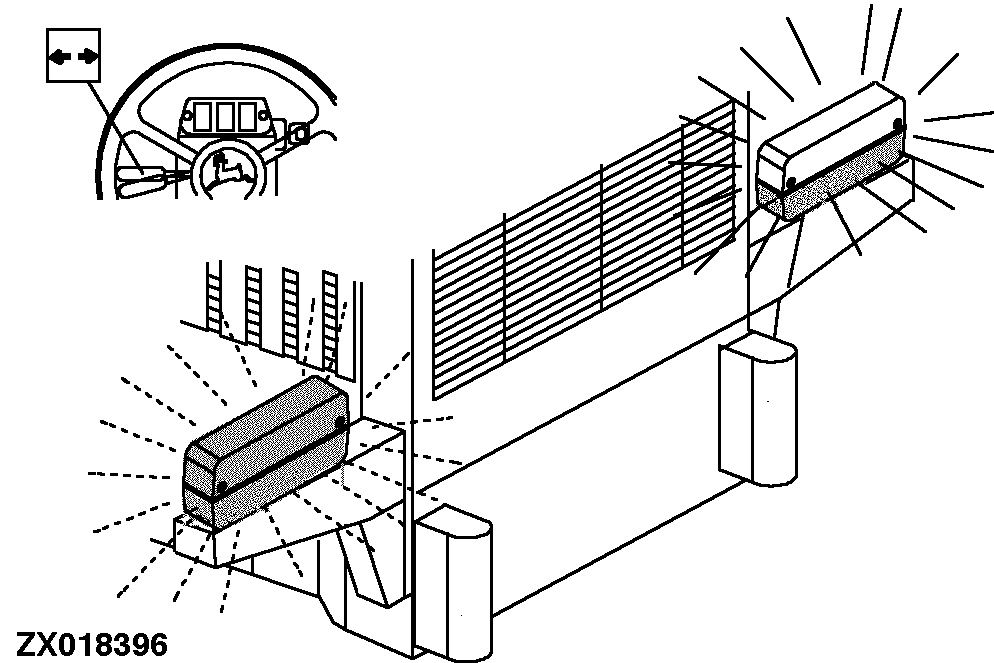

When the turn signal switch is actuated to indicate a turn to the left or right, the turn signal and stop lights flash on the relevant side, while the stop light on the opposite side comes on and stays on.

When hazard warning lights are selected, the lights at both sides flash simultaneously.

The tail lights light up as soon as parking lights, low-beam headlights or full- beam headlights are selected.

Stop lights light up when foot brakes are operated (with ignition turned on).

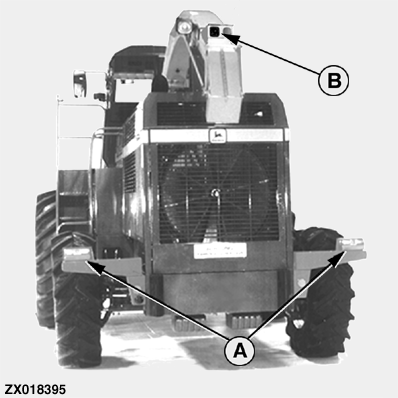

A-Turn signal, tail and stop lights, rear
B-Additional stop light for discharge spout extension
