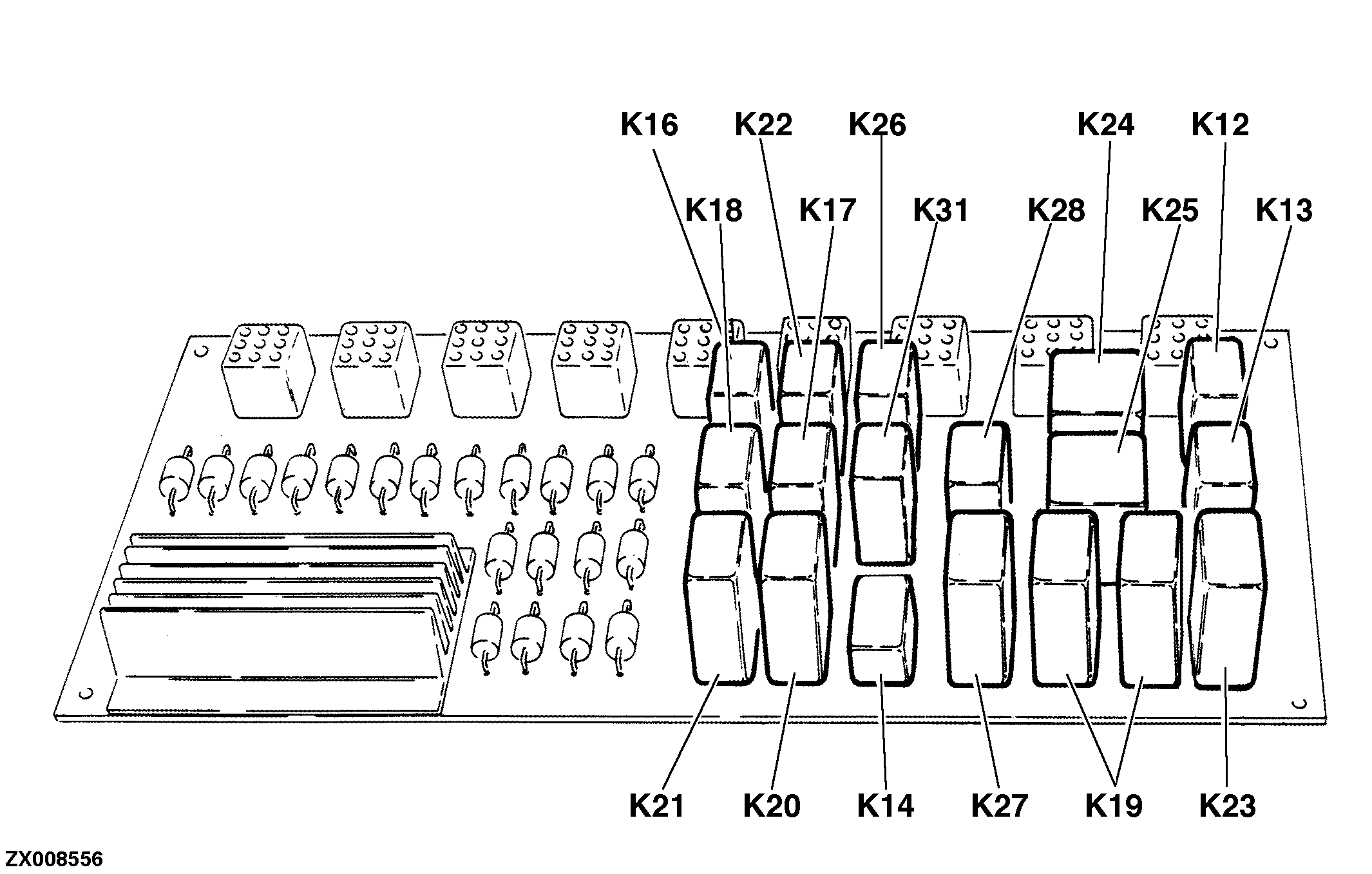

K12-Start safety relay
K13-Metel detector relay
K14-Cutterhead speed monitoring relay
K16-Relay, raise harvesting unit
K17-Relay, lower harvesting unit quickly
|
K18-Relay, raise harvesting unit quickly
K19-Safety switch relay
K20-Relay, turn discharge spout
K21-Relay, turn discharge spout
|
K22-Relay, lower harvesting unit
K23-Relay, unlock feed rolls
K24- Spout cap control relay
K25-Spout cap control relay
|
K26-Rotary crop divider relay
K27-Safety relay, radiator screen
K28-Metal detector relay
K31-Quick stop relay
|
