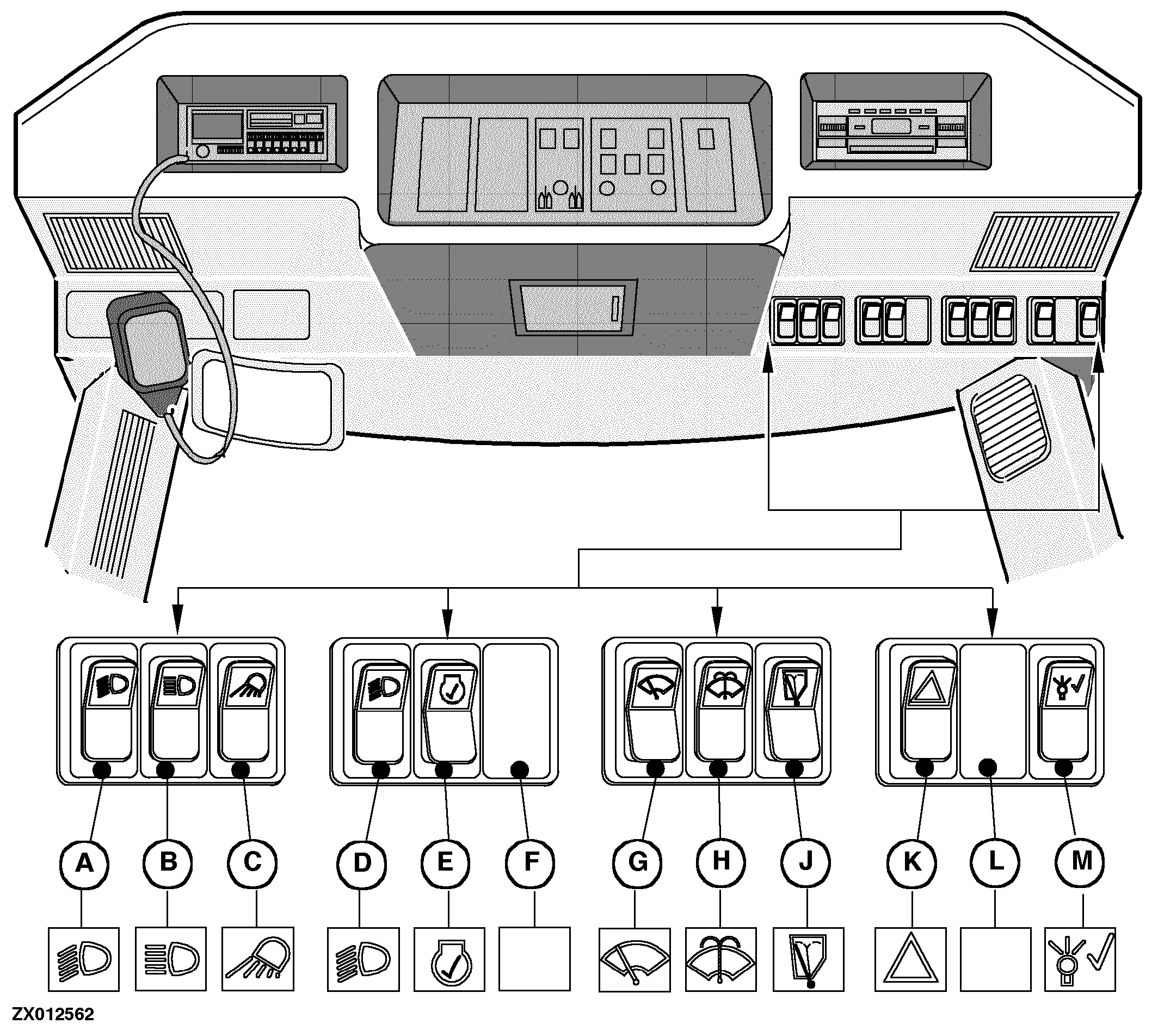

A-Low-beam headlights on/off
B-High-beam headlights on/off
C-Work lights
|
D-Low-beam headlights on/off (option for rotary harvesting unit)
E-Service code switch (6950 only)
|
F-Not used
G-Windshield wiper on/off
H-Windshield washer
J-Side window wiper/washer (option)
|
K-Hazard warning lights
L-Not used
M-Indicator light test
|
