Engaging the main clutch is only possible with engine running and feed roll housing closed.

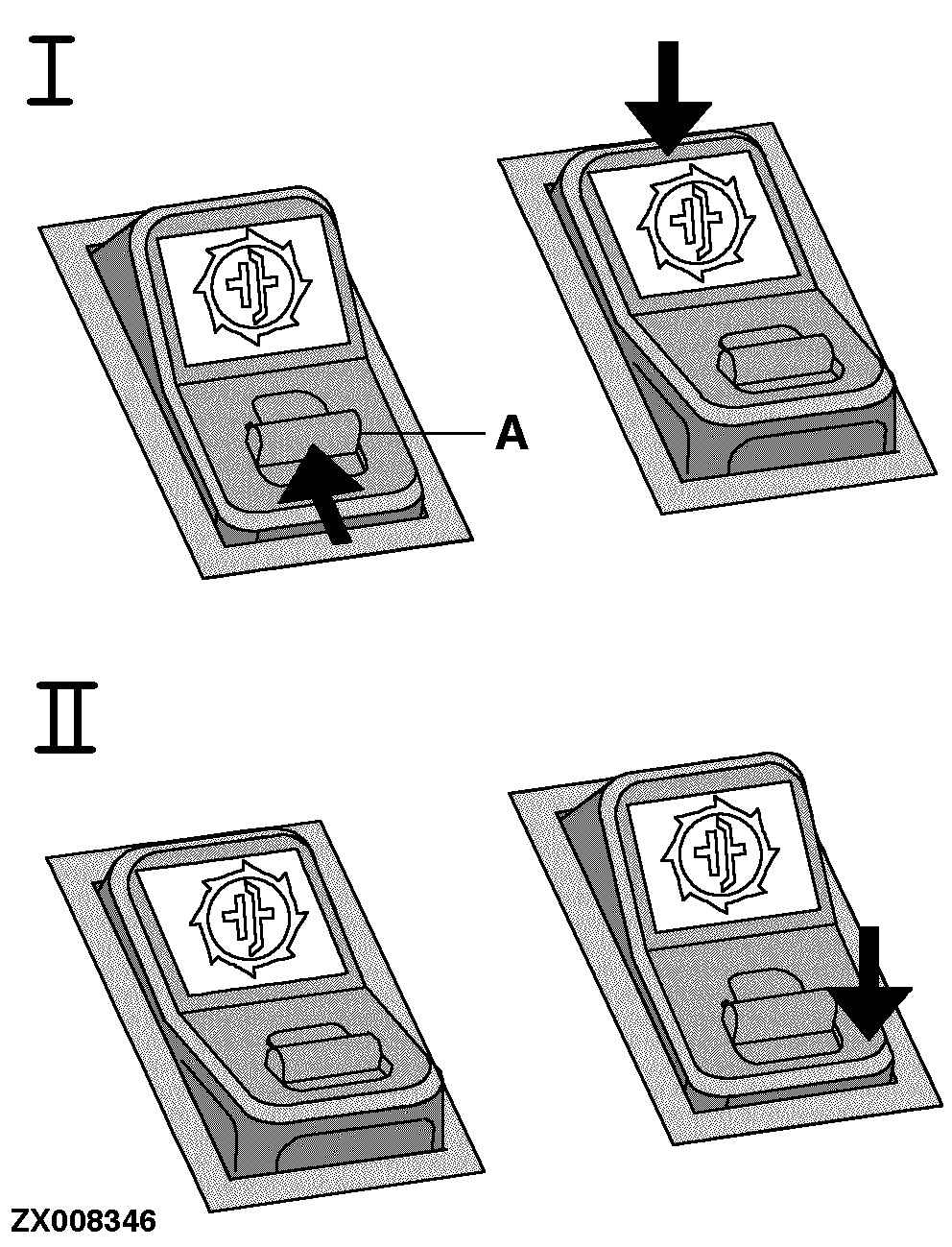

Engaging Main Clutch (I):

Push up lock (A) and depress top part of switch (with low engine speed only).

Disengaging Main Clutch (II):

Depress bottom part of switch.

NOTE: If feed roll housing was opened in switch position "On", move switch to "Off" position before engaging main clutch.

I-Engage main clutch
II-Disengage main clutch
