Harvesting Unit/Reverser Rocker/Tumbler Switch

Engaging feed rolls, harvesting unit and rotary crop dividers (option) is only possible with:

• engine running
• feed roll housing closed
• main clutch engaged
• metal detector activated
• oil pressure switch on reverser motor closed, i.e. pressure below 300 kPa (3 bar) (44 psi)

NOTE: When operating forage harvester without metal detector, metal detector switch (on length-of-cut transmission) and metal detector must be in "Off" position.

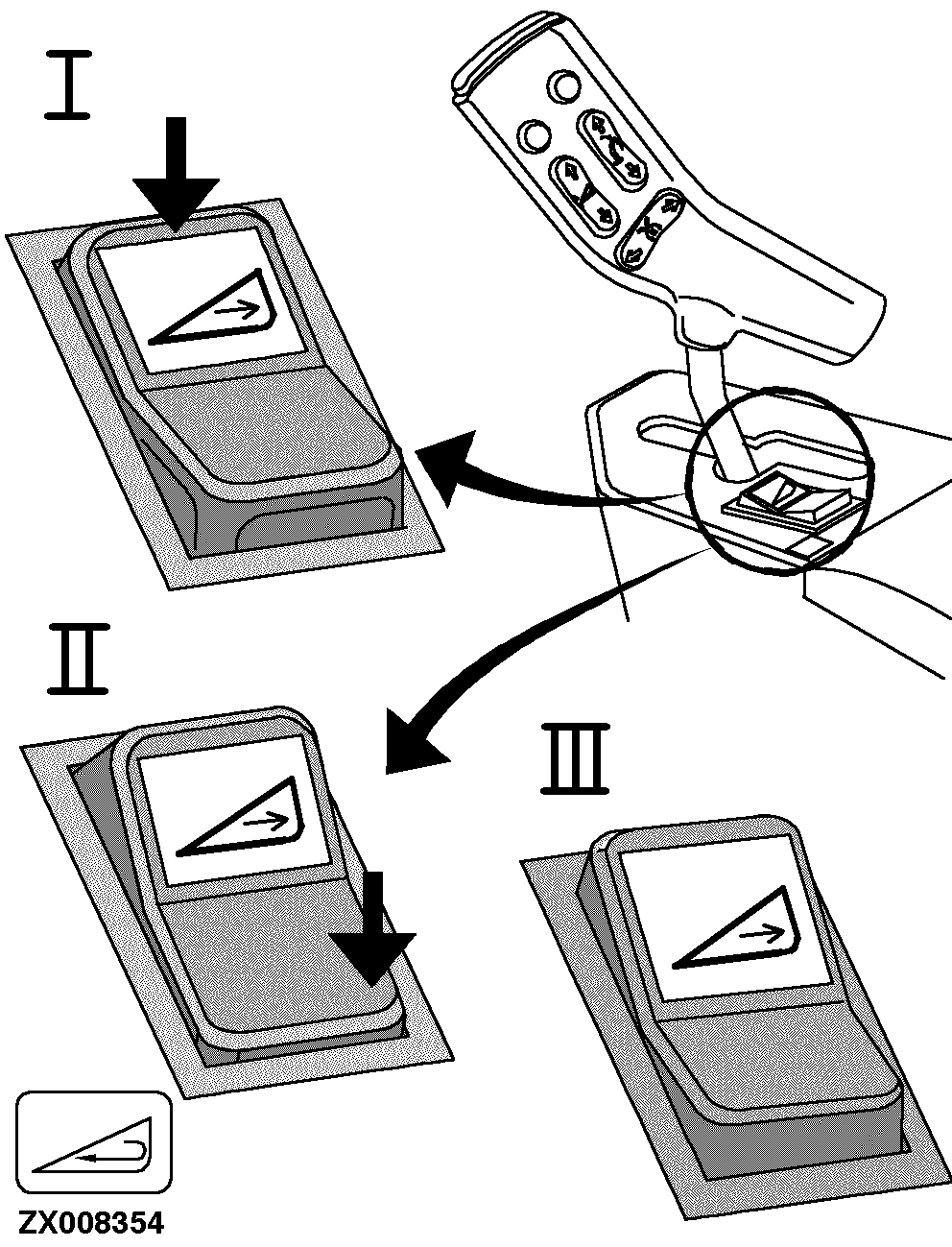

I-Feed rolls and harvesting unit engaged (tumbler switch)
II-Reverse feed rolls and harvesting unit (rocker switch)
III-Feed rolls and harvesting unit disengaged
