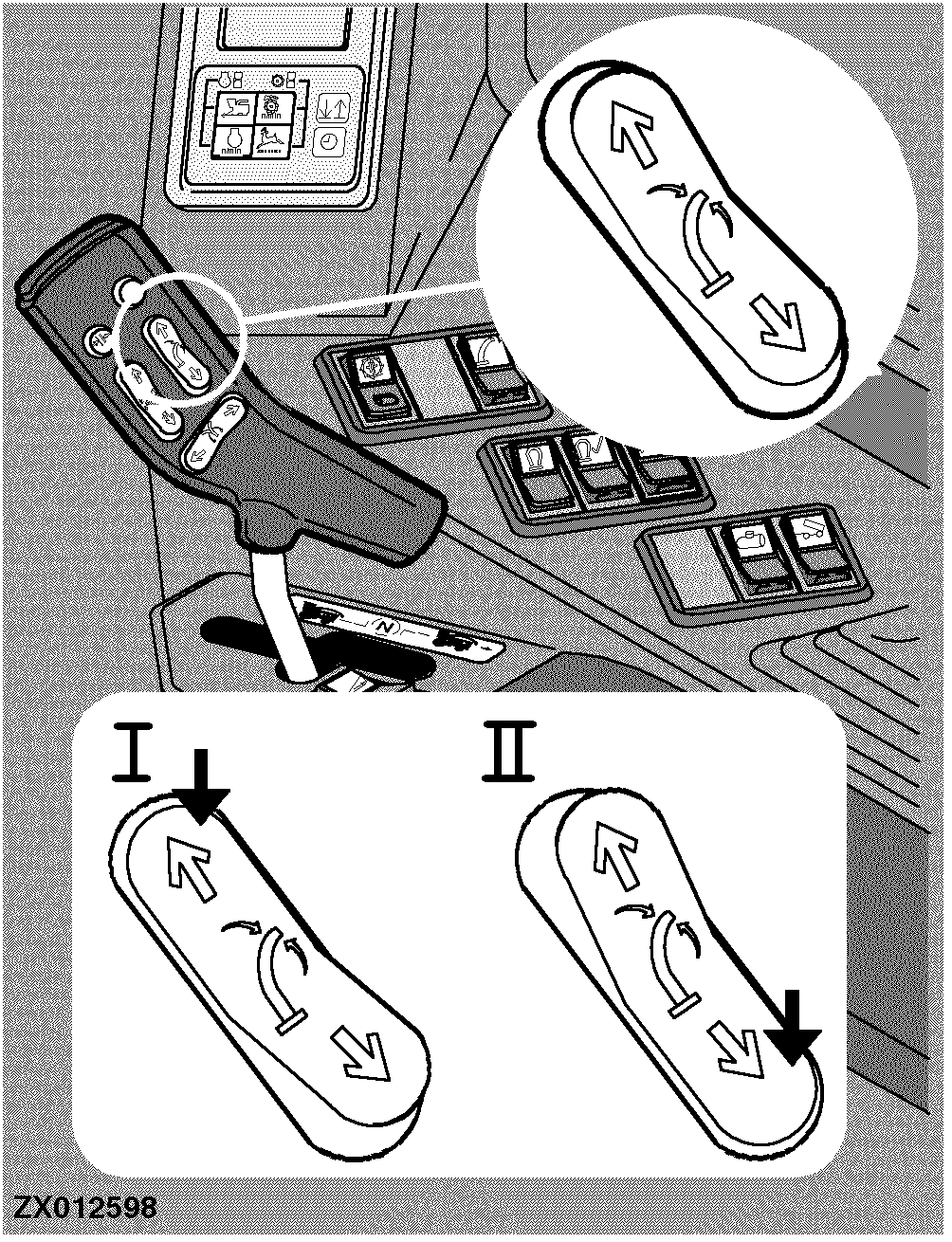

Rocker Switch - Discharge Spout Cap Adjustment

Discharge spout cap adjustment is only possible with:

• engine running (alternators working)
• safety relay K1 (on fuse board) activated

I-Raise spout cap
II-Lower spout cap

ZX,OMUSFH002579 -19-01NOV97-1/1
