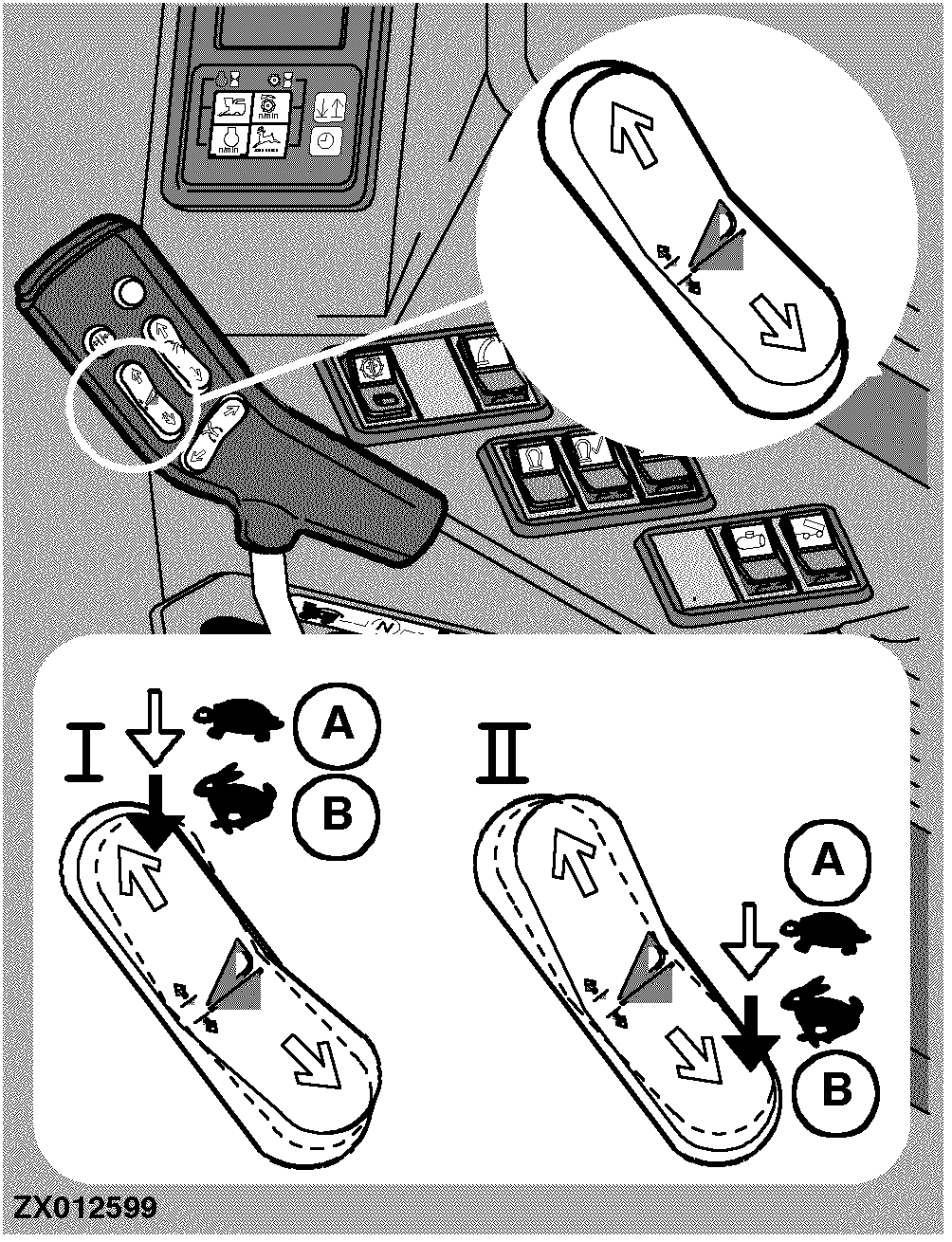

Rocker Switch - Raise/Lower Harvesting Unit

Raising or lowering harvesting unit is only possible with:

• engine running (high speed, alternators working)
• safety relay K1 (on fuse board) activated

Two speeds are available for raising and lowering harvesting unit:

I -Raise harvesting unit

• A-Slow speed (1st stage of switch)
• B-Fast speed (2nd stage of switch)

II-Lower harvesting unit

• A-Slow speed (1st stage of switch)
• B-Fast speed (2nd stage of switch)

ZX,OMUSFH002580 -19-01NOV97-1/1
