Work Lights

The two outer work lights (A) have been factory-adjusted to a working width of 6.10 m (20'). Readjust work lights, if necessary, in relation to harvesting unit width. Refer to "Service - Electrical System".

Work lights (B) illuminate the center area in front of harvesting unit.

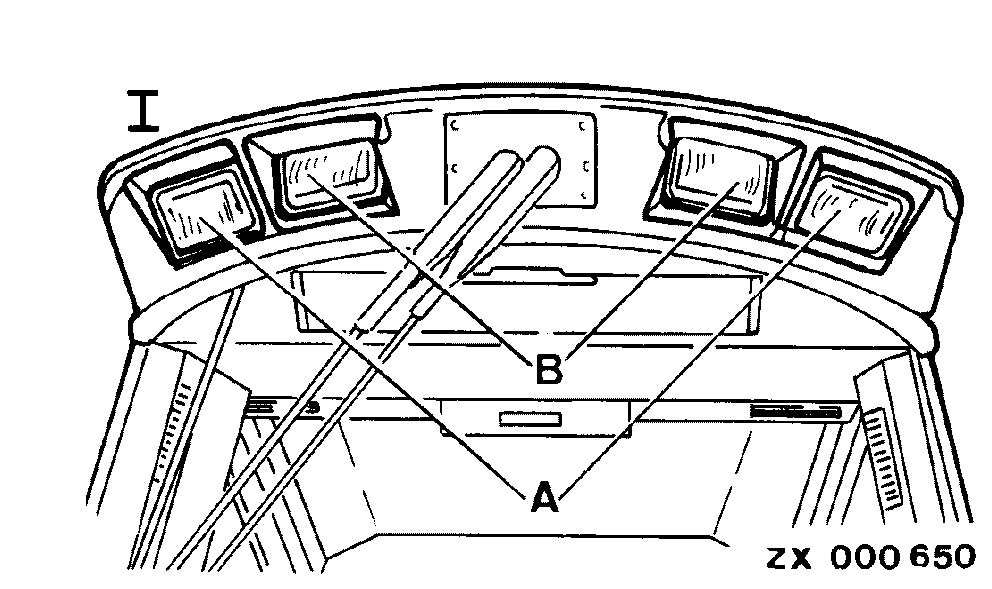

I-Work lights on cab roof

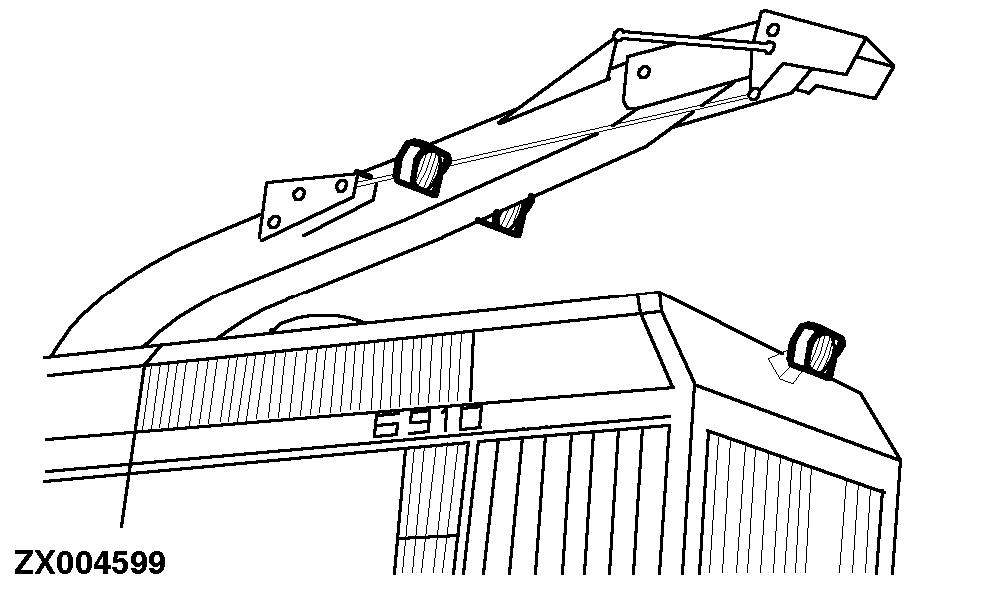

II-Work lights on spout, rear work lights and access ladder lighting

ZX,OMUSFH002583 -19-01JAN93-1/1
