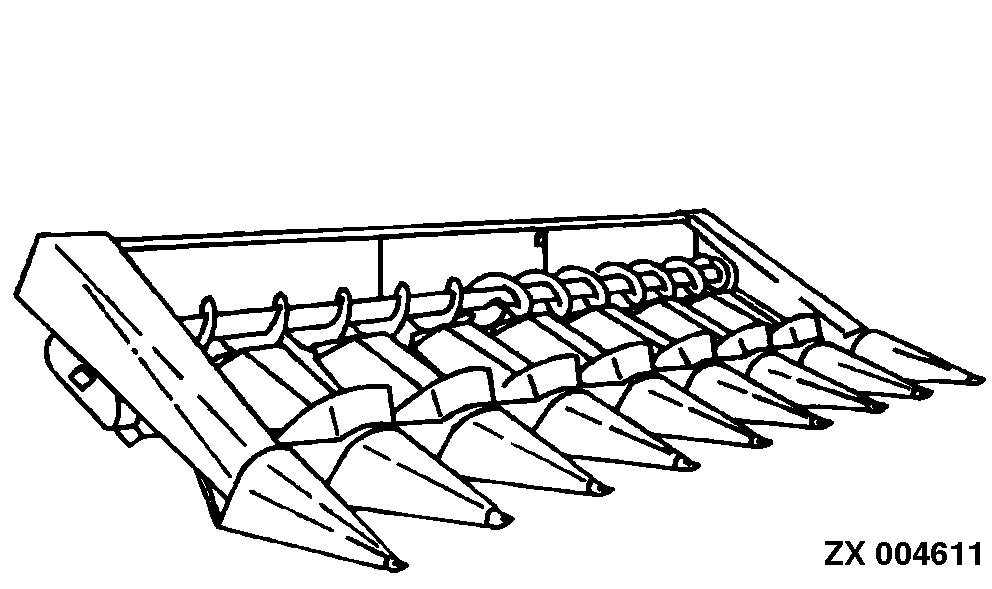

Corn Heads

These units gather mature ear corn. The stalk rolls pick the ears, and the auger delivers them to the feed rolls.

The 643 6-row corn head will harvest rows spaced from 711 to 762 mm (28-30 in.).

The 644 6-row corn head will harvest rows spaced from 914 to 965 mm (36-38 in.).

The 645 6-row corn head will harvest rows with a spacing of 1016 mm (40 in.).

The 843 8-row corn head will harvest rows spaced from 711 to 762 mm (28-30 in.).

The 844 8-row corn head will harvest rows spaced from 914 to 965 mm (36-38 in.).
