Cold Weather Starting Aids

Ether Starting Aid

To facilitate starting procedure in cold weather, ether fluid is injected into the intake manifold while cranking engine with starting motor.

ZX012858

ZX,OMUSFH002604 -19-01MAR93-1/2

Electrical Coolant Heater

causym CAUTION: FOR 115 VOLT CIRCUITS ONLY! To avoid shock or hazardous operation, always use a three-wire heavy duty electrical cord equipped with three wire connectors. If a two-to-three contact adapter is used at the wall receptacle, always connect green wire to ground.

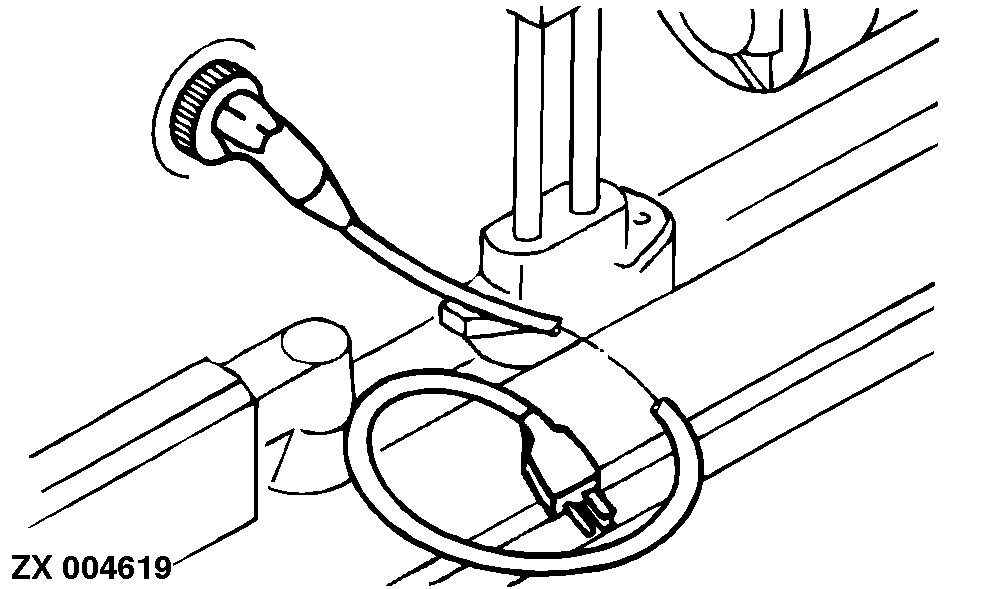

A 115 Volt electrical coolant heater (1000 Watt, John Deere engines; 1500 Watt, Cummins engines) may be installed on the engine block. By warming the engine, the heater reduces oil drag, eases starting, and shortens warm-up time.

ZX004619

ZX,OMUSFH002604 -19-01MAR93-2/2
