Rotary Switch for Header Height Resume Control

• Electronic system of header function resume control must be switched on.
• Resume control must be activated.
• Header must be within the range of header height gauge.

ZX,OMUSFH003560 -19-30OCT00-1/3

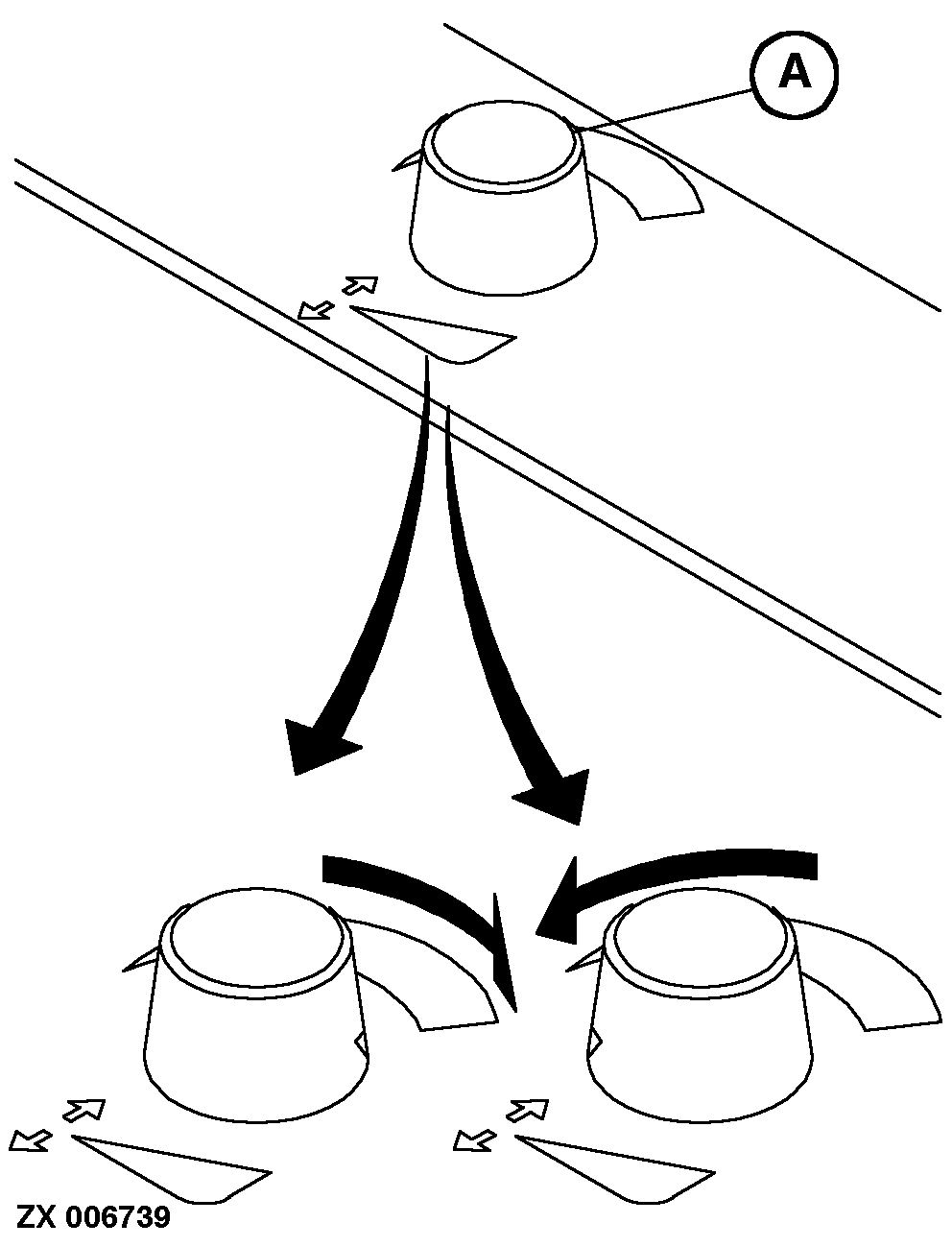

Use potentiometer (A) to obtain desired header height resume setting.

Turn clockwise - desired header height position increases

Turn counterclockwise - desired header height position decreases

ZX,OMUSFH003560 -19-30OCT00-2/3

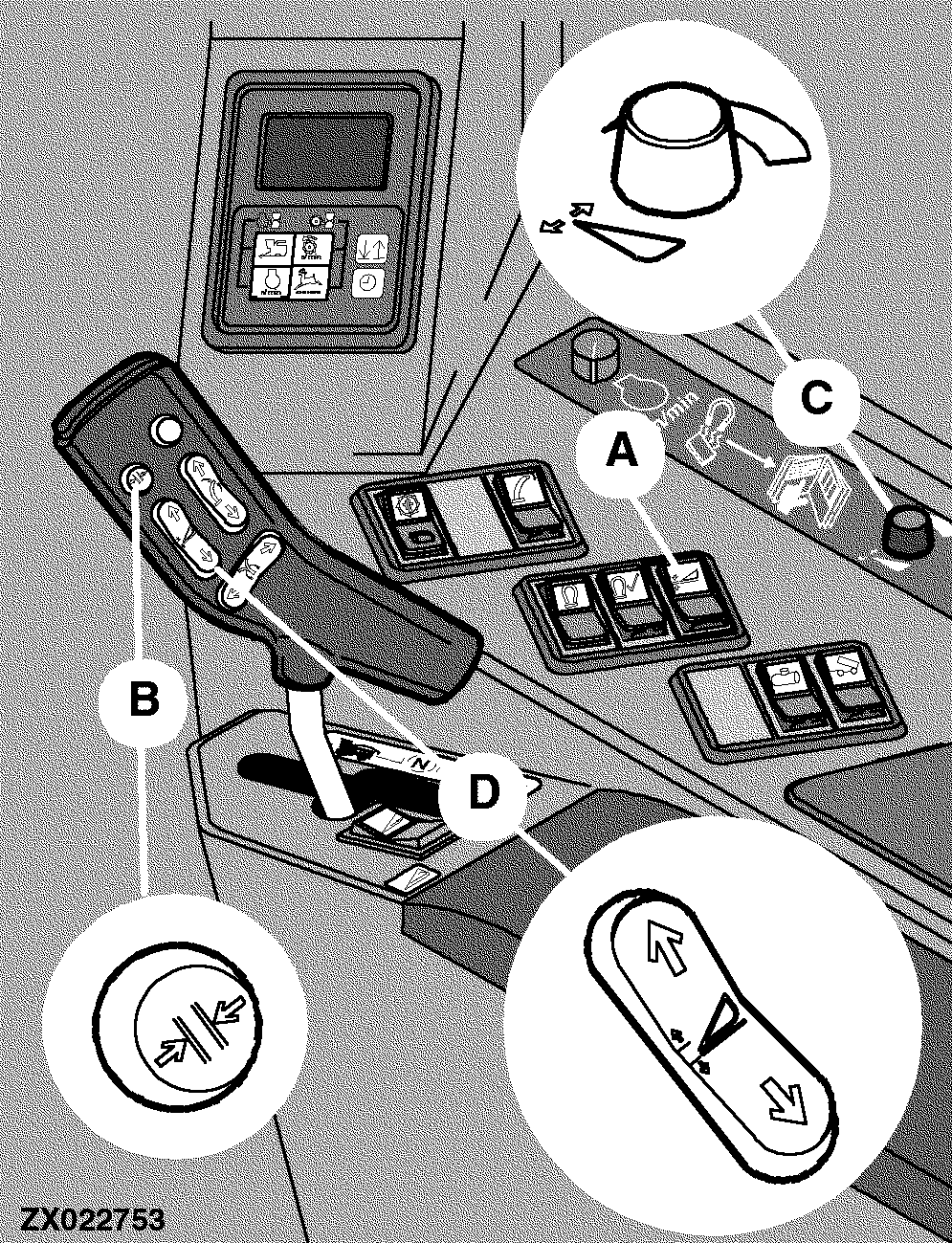

Use switch (A) to switch on resume controls and button (B) to activate the electronic system. Now move header to desired height position by means of potentiometer (C).

If switch (D) was pressed to change header height, the header position preselected by means of potentiometer (C) may be obtained again by pressing button (B).

A-Header function resume control switch
B-Button for automatic resume control
C-Potentiometer for header height resume control
D-Switch, raise/lower header

ZX,OMUSFH003560 -19-30OCT00-3/3
