Adjusting Header Ground Pressure Gauge

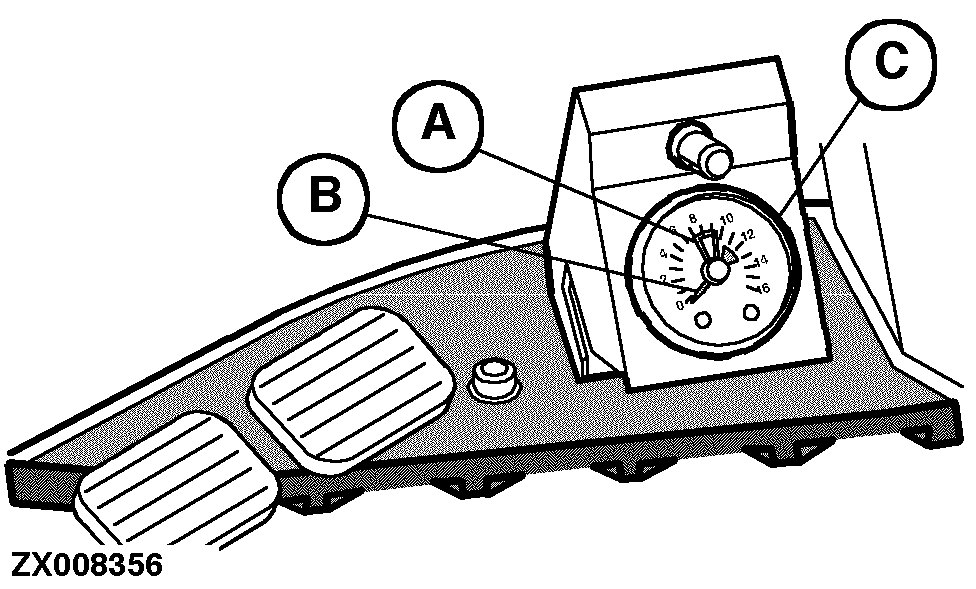

Lower header until it is just above the ground or just touches the ground. Align right-hand edge of adjustment window (A) with needle (B) of gauge (C).

During operation, the needle should move within the range of the adjustment window.


A-Adjustment window
B-Needle
C-Pressure gauge
