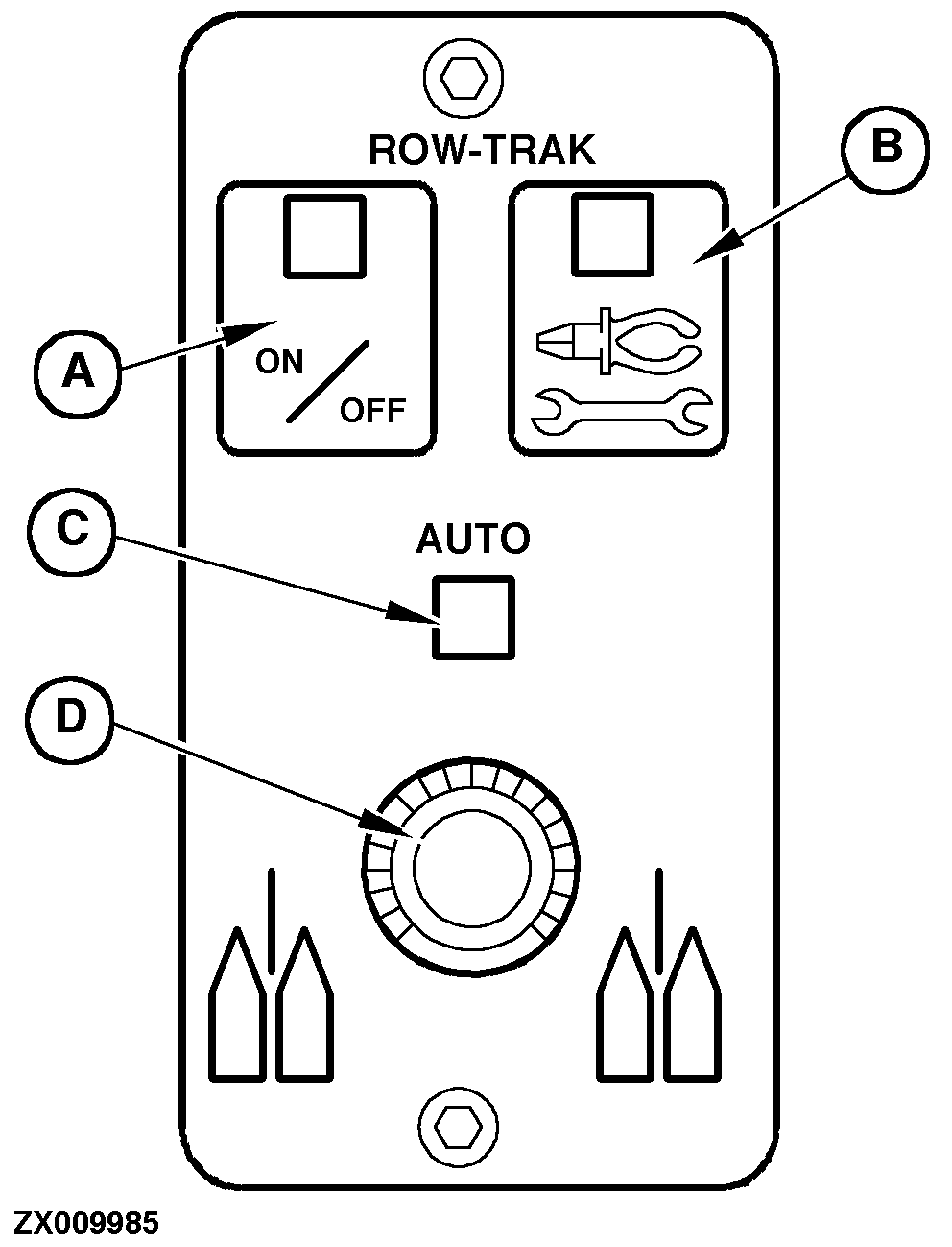

Control Unit for ROW-TRAK™

Key A

• switches ROW-TRAK ™ on/off.

Key B

• selects the calibration mode.

Indicator light C

• indicates that ROW-TRAK ™ is on.

Control knob D

• brings the machine back on track if it deviates (track adjustment).
• changes the channels when in the calibration mode.

ROW-TRAK is a trademark of Deere & Company.

ZX,OMUSFH007264 -19-01DEC96-1/1
