Putting ROW-TRAK™ into Operation

Bringing the System to a State of Readiness

Start the forage harvester.

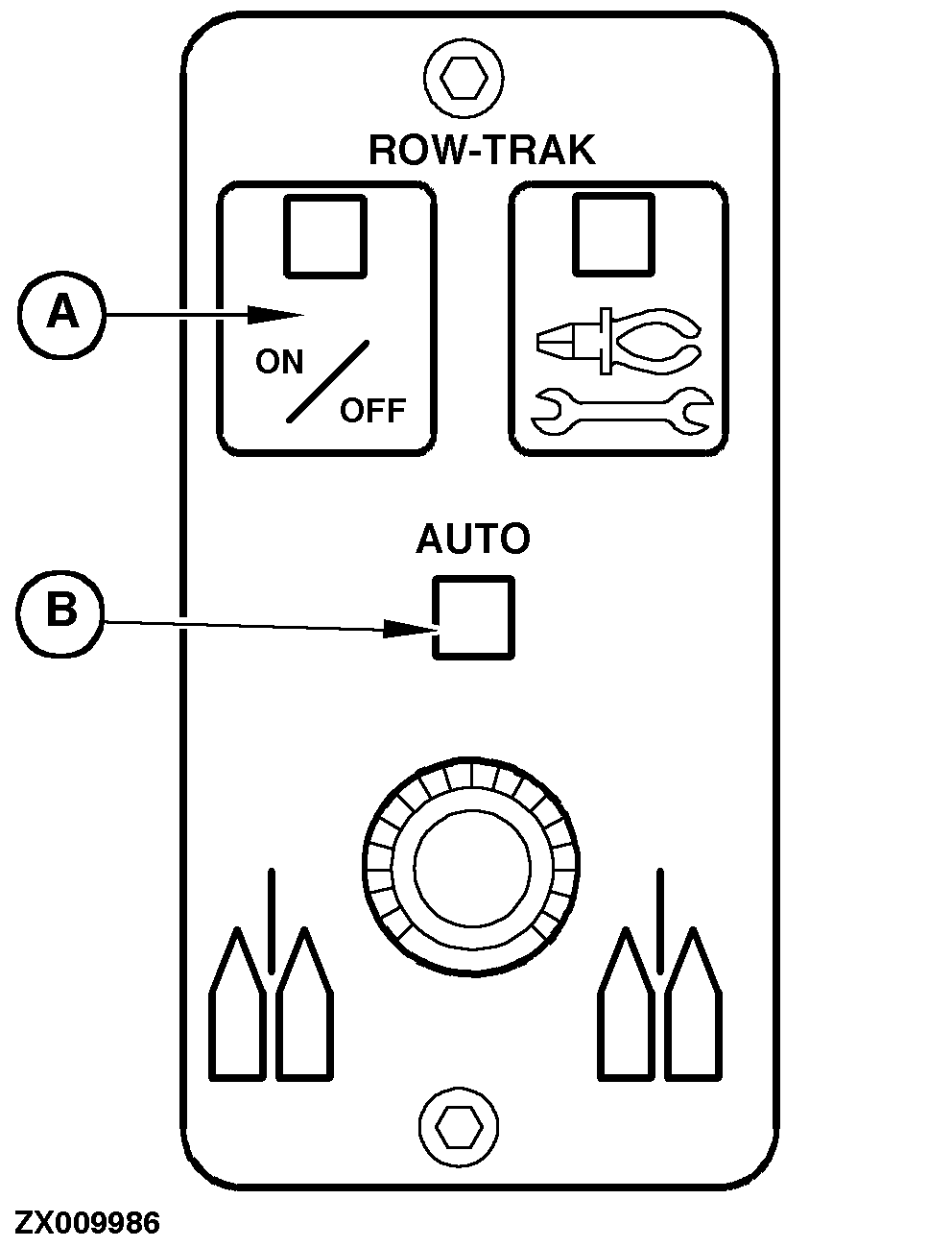

Press key (A). The indicator light on this key comes on and indicator light (B) starts to flash.

Putting the System into Operation

Preconditions:

Main clutch must be engaged when the engine is at low idle.

Engine speed must be increased to at least 1500 rpm.

The operator must be seated on the operator's seat.

Ground travel speed must not exceed 15 km/h (9.3 mph).

Switching On

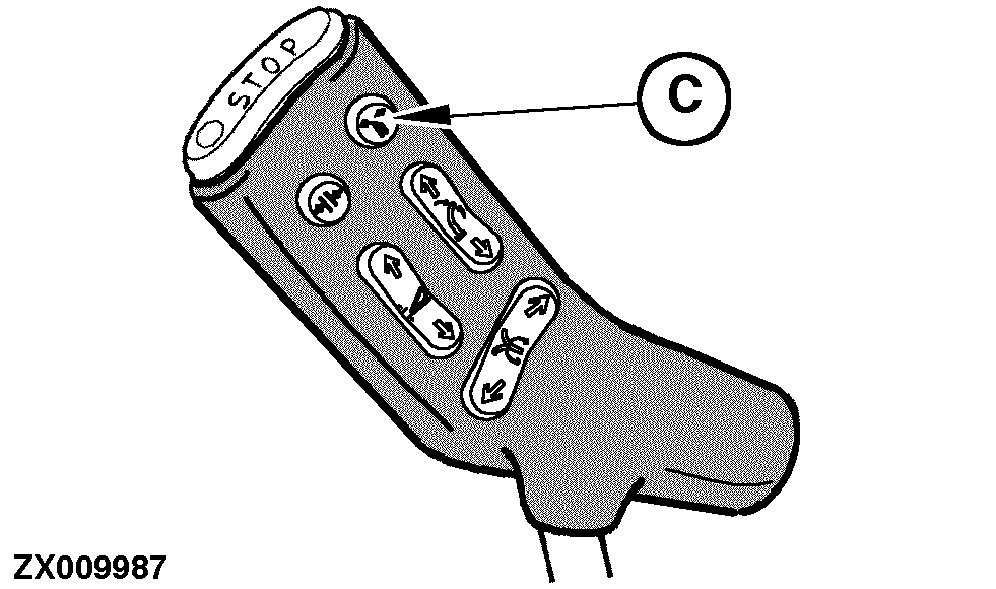

Drive into the crop. Once the machine has driven a short distance along the crop row, press switch (C) on the multi-function lever and release the steering wheel.

An acoustic signal is emitted.

Indicator light (B) remains on; it no longer flashes. ROW-TRAK ™ is selected and in operation.

ROW-TRAK is a trademark of Deere & Company.

ZX,OMUSFH007265 -19-01DEC96-1/1
