Taking ROW-TRAK™ Out of Operation

    Bring the System out of its State of Readiness

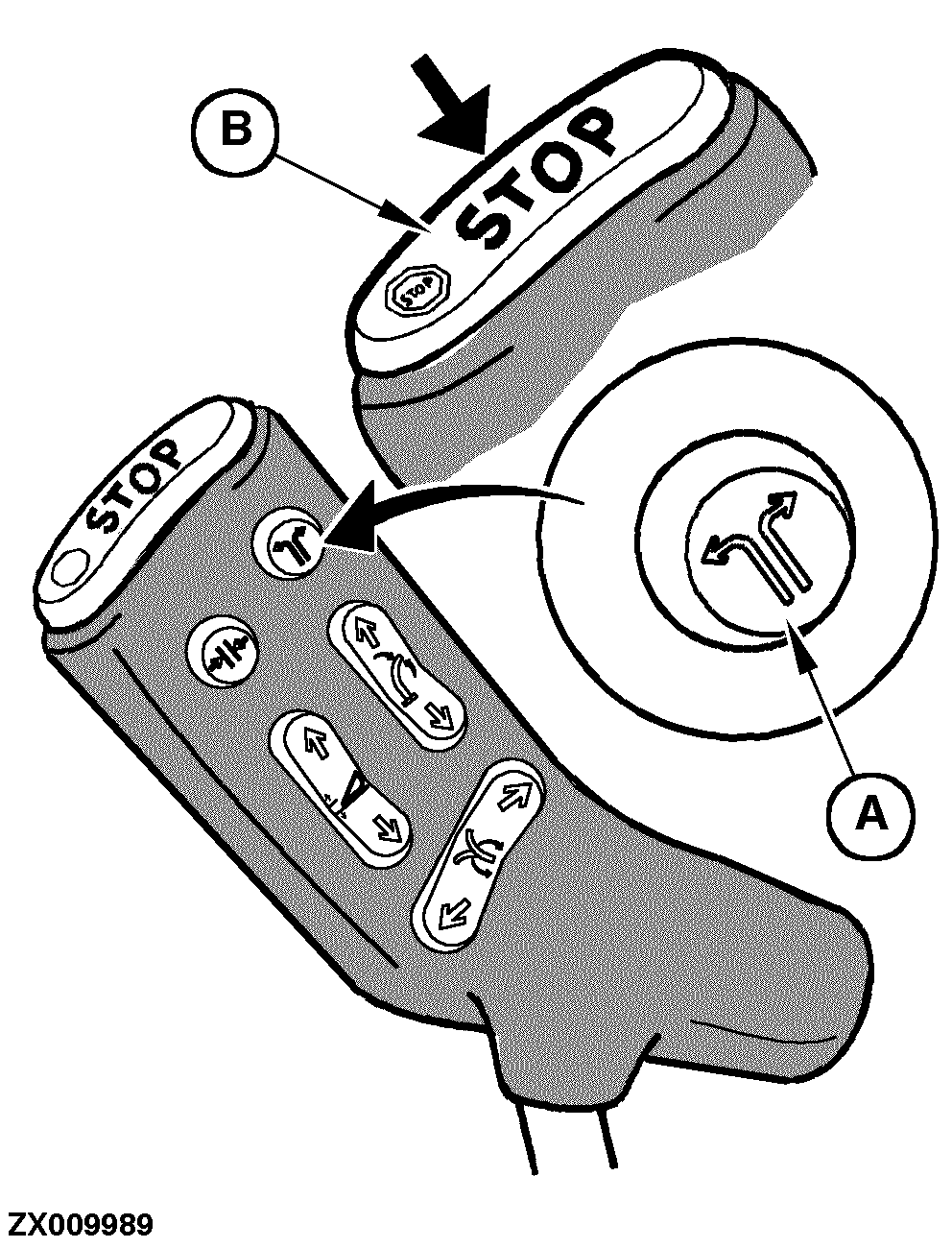

  • by pressing key (A) on the multi-function lever.
  • by turning the steering wheel.
  • by vacating the operator's seat for longer than 5 seconds.

    System switches off

  • when "STOP" switch (B) is actuated.

Two consecutive acoustic signals indicate that the ROW-TRAK ™ system is switched back to its state of readiness and switched off.

ZX009989

ROW-TRAK is a trademark of Deere & Company.

ZX,OMUSFH007767 -19-01DEC96-1/1
