Area Counter (Option)

The area counter is switched on with starter switch in position (I).

    Requirements for Area Counter Operation:

  • INFO-TRAK ™ monitor correctly programmed
  • Header width correctly set
  • Main clutch engaged
  • Header must be at its operating height
  • Forward travel of forage harvester

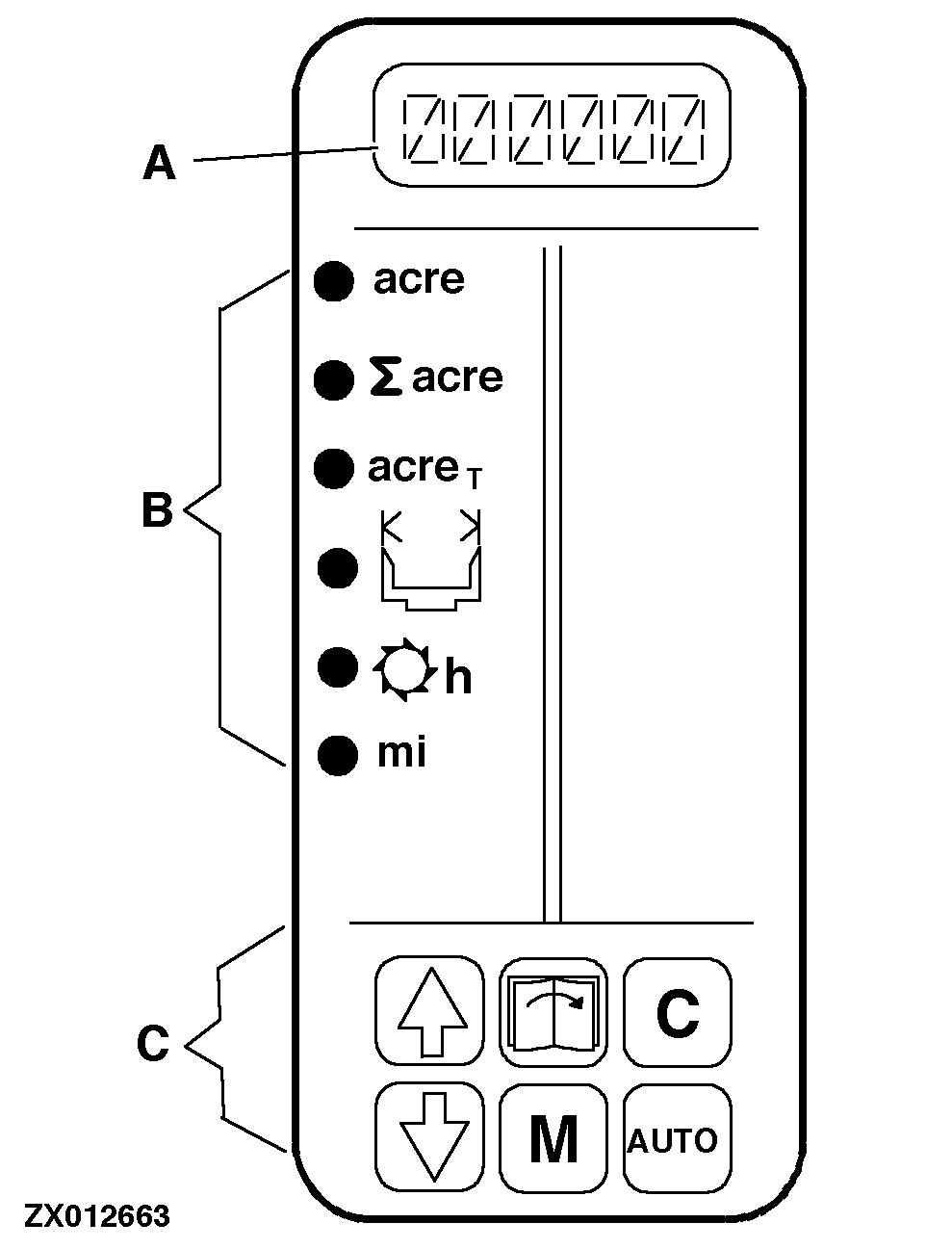

A-Display (6 digits)
B-Area counter
C-Control keys

ZX012663

INFO-TRAK is a trademark of Deere & Company.
