Area Counter

Display (A) of the area counter always lights up when the unit is switched on.

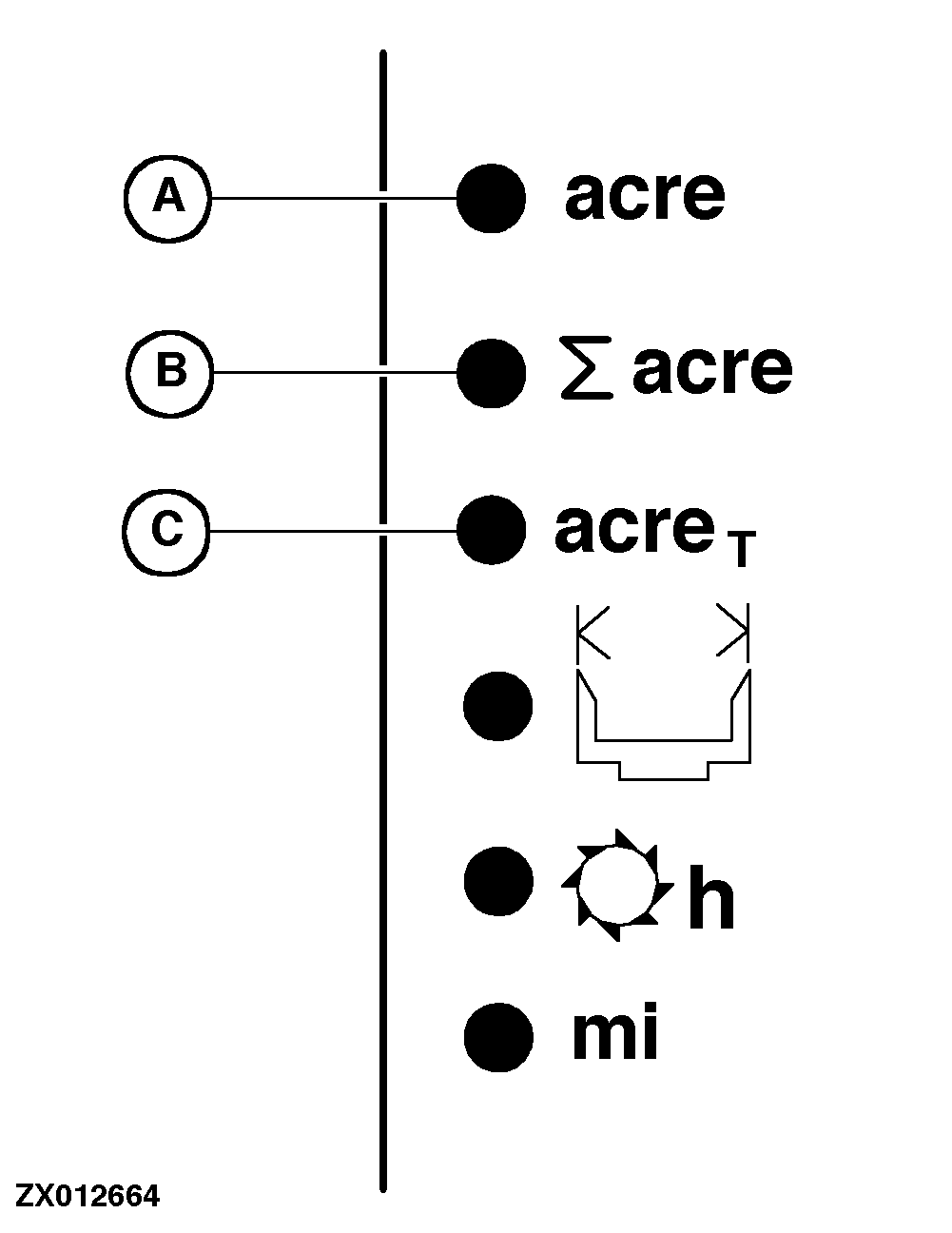

Area per day values (A) and total area per day values (B) can only be cleared, but not changed.

Total area values (C) can neither be cleared nor changed.

The smallest area per day value (A) or (B) that can be displayed is 0.001 hectare or 0.001 acre.

The smallest total area value (C) that can be displayed is 0.1 hectare or 0.1 acre.

A-Area per day function
B-Total area per day function
C-Total area function

ZX,OMUSFH008869 -19-01NOV97-1/4

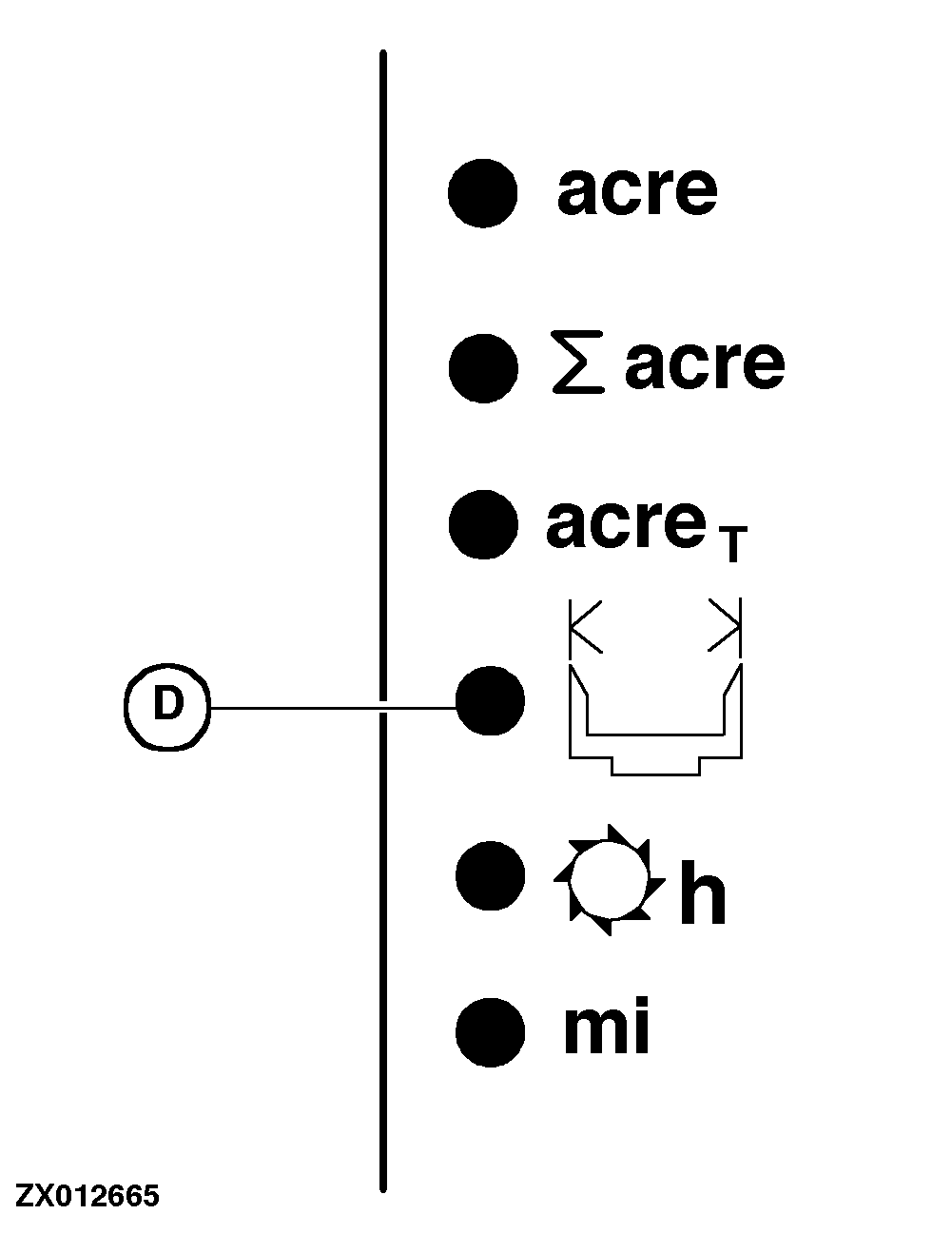

The smallest setting increment for header width (D) is 0.1 m or 0.5 ft.

When full width of header is not used during operation, partial width may be set in 1/4 increments. To do this, select header width function and then press key "C". Via 3/4, 1/2 and 1/4 increments you can return to full header width.

Header width will return to the previously saved full width value, if a partial width has been selected and the header is raised beyond working height.

NOTE: The displayed measurement units for width and area are determined by INFO-TRAK ™ monitor programming (see this Section).

D-Header width function

INFO-TRAK is a trademark of Deere & Company.

ZX,OMUSFH008869 -19-01NOV97-2/4

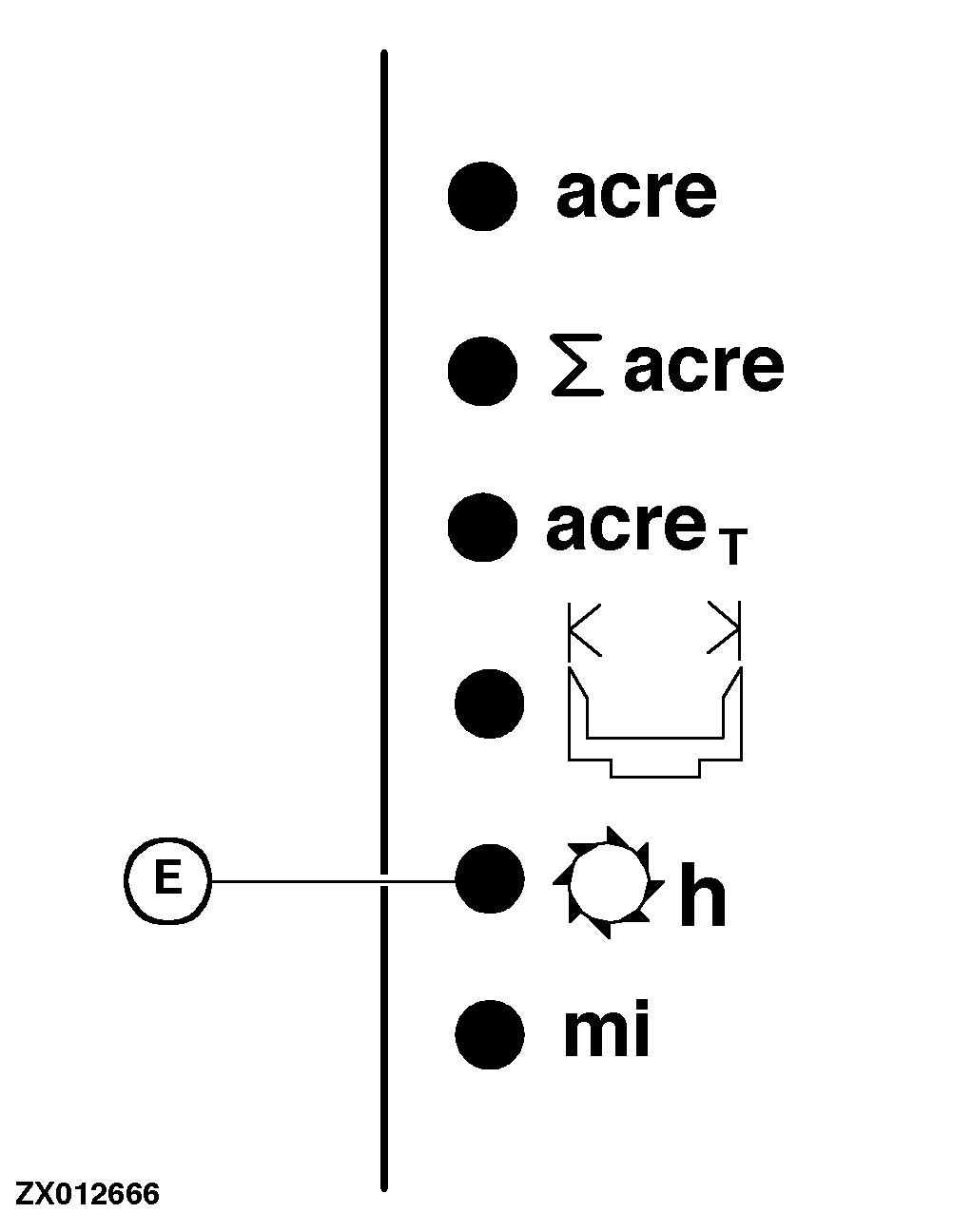

Cutterhead operating hours (E) can only be deleted, but not changed.

The smallest figure that can be displayed is 0.1 h (6 minutes).

E-Function "cutterhead operating hours"

ZX,OMUSFH008869 -19-01NOV97-3/4

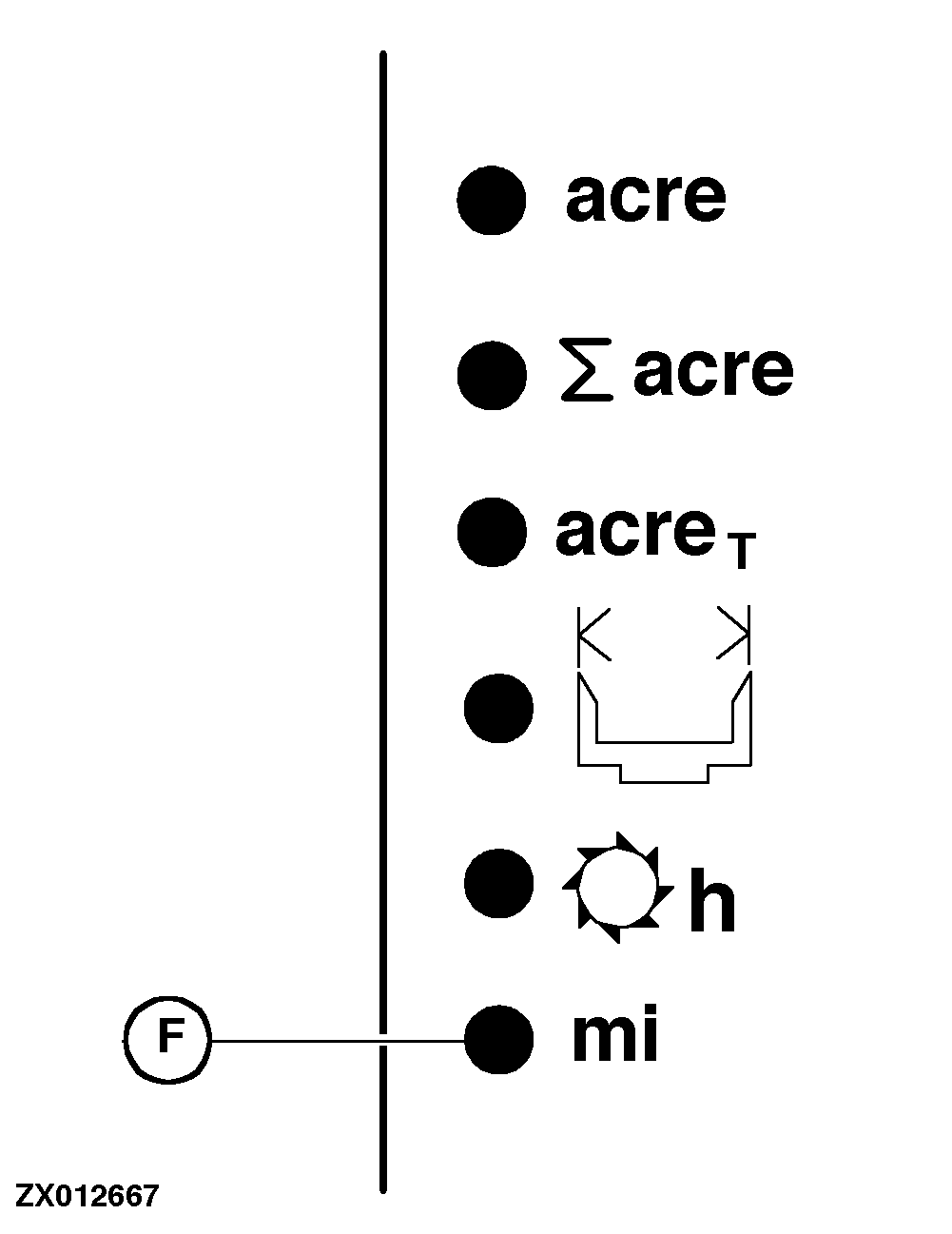

Travel distance (F) can only be deleted, but not changed.

The smallest figure that can be displayed is 0.001 km (0.001 miles).

F-Travel distance function
