Setting Partial Header Width

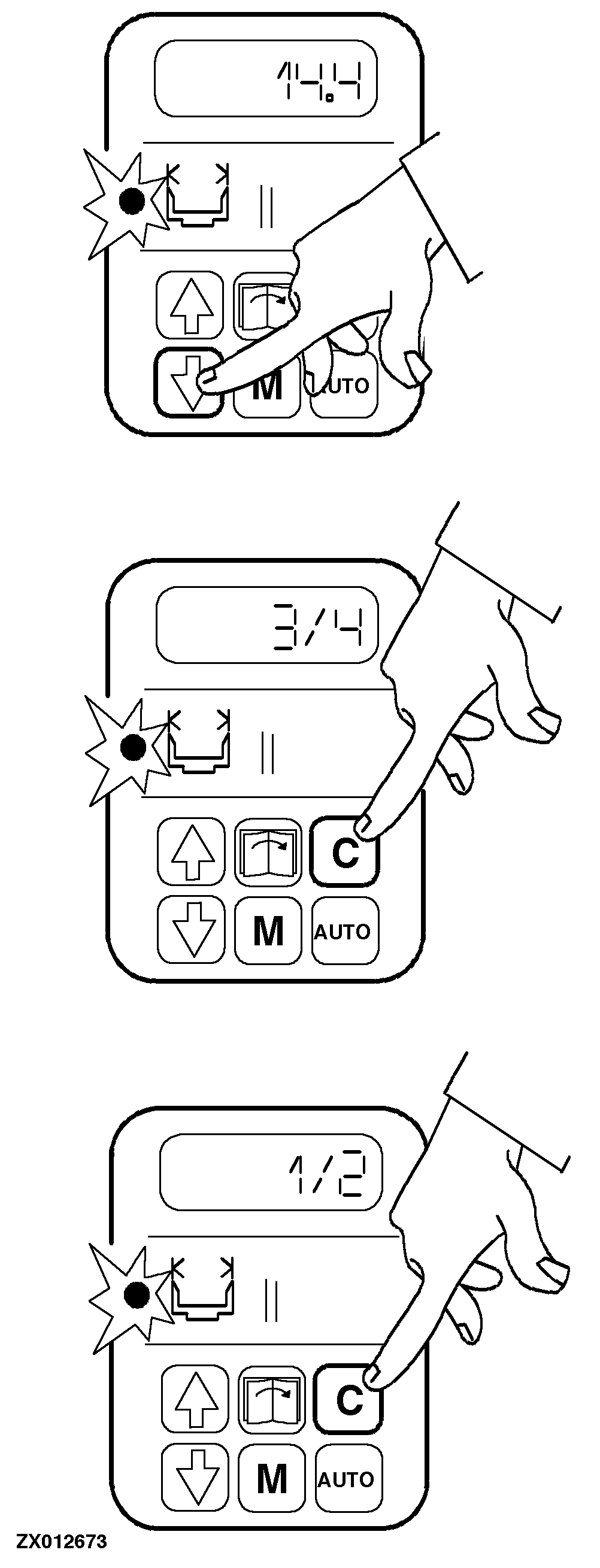

Select "header width" function.

the current header width (cutting width) will be displayed

Press "Calibrate" key (C).

"3/4" will be displayed = 3/4 of the previous header width

Press "Calibrate" key (C).

"1/2" will be displayed = 1/2 of the previous header width

NOTE: In 1/4 increments you can proceed to "1/4" of the previous header width and then back to full width.

ZX,OMUSFH009494 -19-01NOV97-1/1
